Read and understand this entire owner's manual, including all safety
information, before plugging in or using this product. Failure to do so
WARNING
could result in fire, electric shock, or serious personal injury.
Keep this owner's manual for future reference. If you sell or give this
CAUTION
product away, make sure this manual accompanies this product.
44 - 50 - 60 - 72
OWNER'S� MANUAL

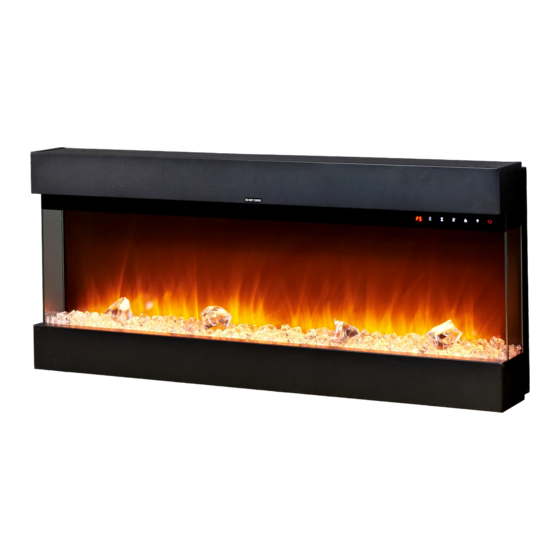

Electric Fireplace
Advertisement
Table of Contents
Related Manuals for evolution fires SPECTRUM Series
Summary of Contents for evolution fires SPECTRUM Series

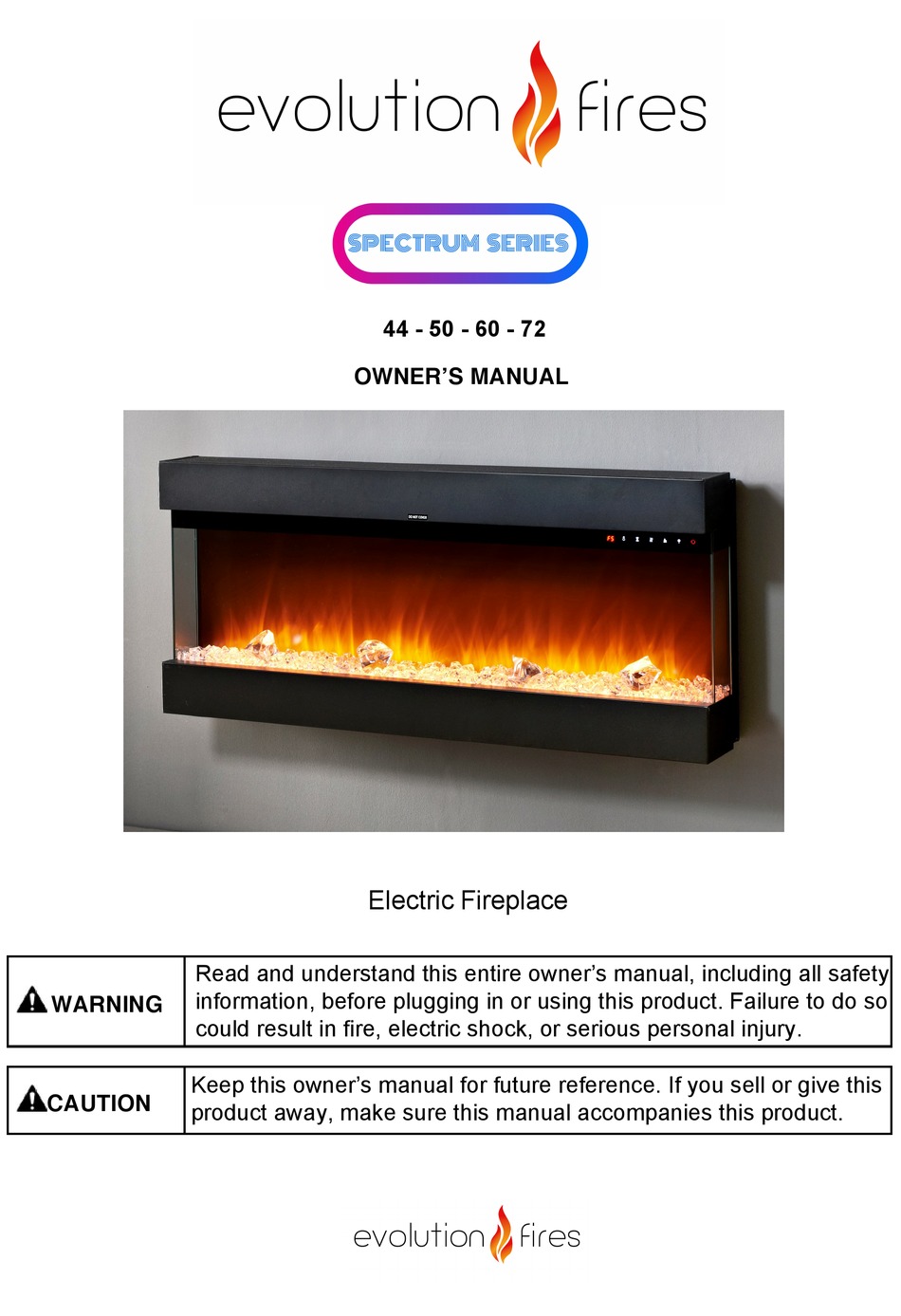

- Page 1 44 - 50 - 60 - 72 OWNER’S� MANUAL Electric Fireplace Read and understand this entire owner’s manual, including all safety information, before plugging in or using this product. Failure to do so WARNING could result in fire, electric shock, or serious personal injury. Keep this owner’s manual for future reference.
-
Page 2: Important Safety Information
IMPORTANT SAFETY INFORMATION! WARNING When using electrical appliances basic precautions should always be followed to reduce the risk of fire, electric shock and injury to persons, including the following: Read all instructions before using this fireplace. •This heater is hot when in use. To avoid burning, do not touch hot surface. If provided, use handles when moving this heater. -
Page 3: Parts And Hardware
Preparation This product includes a GLASS panel! Always use extreme caution when handling glass. Failure to do so could result in personal injury or property damage. Check the parts list to make sure nothing is missing. Dispose of packaging materials properly. Please recycle whenever possible. -
Page 4: Installation And Assembly
Installation and Assembly Your appliance is a wall-mounted appliance. Select a suitable location that is not susceptible to moisture and is away from drapes, furniture and high traffic-areas. MINIMUM CLEARANCE TO COMBUSTIBLES Wall Mounted Installation Due to the many different materials used on different walls, it is highly recommended that you consult your local builder before you install this appliance on the wall. - Page 5 Recessed To Wall Installation Hole Size ( A ) STEP A. Selection a dry wall to open a hole for fireplace box. Size of hole as below chart Figure ( A ) Framing Hole Size Model Number ELITE 44 42.71” (108.3CM) 18.84”...
- Page 6 STEP E. Have two adult people to lift of the fireplace box and put it inside of the wall opening hole. Using the screw driver to fix all wood screws and drywall anchors through the metal brackets to the wall and fixing tightly. NOTE: Making sure that all screws and drywall anchors are well screwed.
- Page 7 Installation of the front glass panel Firstly remove the 4 screws which are fitted into the fireplace as shown Unpack the glass screen, place it into the bottom tray and push backwards until the 4 tabs on the glass screen line up with screw holes. Screw in the 4 screws which were removed in the first step.
- Page 8 Log-set / Crystal Ember Media Bed Installation NOTE: Please use the information below to set out your media set based on the model you purchased. The glass front must be removed and the appliance must be mounted in its final location before the log-set / crystals are installed.
-
Page 9: Hard Wiring Installation
HARD WIRING INSTALLATION WARNING TURN OFF THE APPLIANCE COMPLETELY AND LET COOL BEFORE SERVICING. ONLY A QUALIFIED SERVICE PERSON SHOULD SERVICE AND REPAIR THIS ELECTRIC APPLIANCE. HARD WIRING CONNECTION If it is necessary to hard wire this appliance, a qualified electrician must remove the cord connection, and wire the appliance directly to the house hold wiring. -
Page 10: Methods Of Operation
Operation Read and understand this entire owner’s manual, including all safety information, before plugging in or using this product. Failure to do so could result in electric shock, fire, serious injury, or death. Power Plug the power cord into grounded outlet (see IMPORTANT SAFETY INFORMATION on Pages 2 and 3). -
Page 11: Remote Control Operation
FLAME button: Makes flame effect dimmer and brighter. 1. Press once. Flame brightness effect gets changing. NOTE: Flame effect stays on until power button is turned off. Flame effect must be on 2. Press again. until desired setting is reached. FLAME for heater to turn on. - Page 12 COLOR button: Makes the color flame 1.Press once. Indicator light turns on. Flame effect changing. color effect gets changing. NOTE: color effect stays on until power 2.Press again until desired setting is button is turned off. Color flame effect must reached.Display window shows setting.
- Page 13 LED Down light button: Makes the 1. Press once. Down light color effect gets color on TOP effect changing. changing. NOTE: Down light color effect stays on until 2. Press again. until desired setting is reached. power button is turned off. Cycle from 01-02-03-04-05-06-07-08-09-10- 11-12 “12”...
- Page 14 Press again. When the minute digits begin flashing, use to select the current minute. Press again. The current time is now set. 2 Set ON/OFF time and temperature on a weekly cycle Press . When “MON” begins flashing, press 3 times. When “ON” begins flashing, to select the desired hour and minute to turn on the heater.
-
Page 15: Care And Maintenance
Care and Maintenance Cleaning ALWAYS turn the fireplace OFF and unplug the power cord from the outlet before cleaning, performing maintenance, or moving this fireplace. Failure to do so could result in electric shock, fire, or personal injury. NEVER immerse in water or spray with water. Doing so could result in electric shock, fire, or personal injury.ming maintenance, or moving this fireplace.
