SE-1000
T

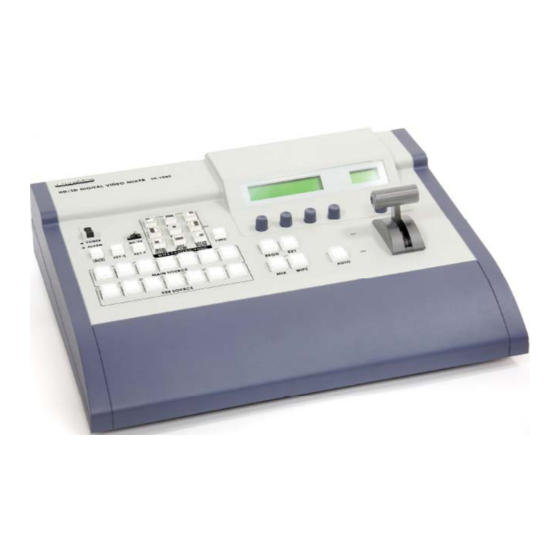

he SE-1000 is a compact, portable SDI switcher that does all
processing in HD, accepts either HD or SD and is supported by
a family of collateral products including monitors, distribution
amplifiers, tally lights and intercoms.
It's a great switcher for small production companies, churches, vans, and
corporate production departments. It supports live production with 5 video
inputs, one computer input and one still frame loaded via computer or via
live capture. And it has three outputs. The switcher includes 6 built-in format
converters that will let you see your inputs on inexpensive SD monitors.
The converters may also be used to change the format of the output or to
analog composite or component. The SE-1000 Kit includes these monitors
and a holder.
It also includes a linear key and self key for easy titling or logo insertion, and
can be used with an external Character Generator that has a DSK.

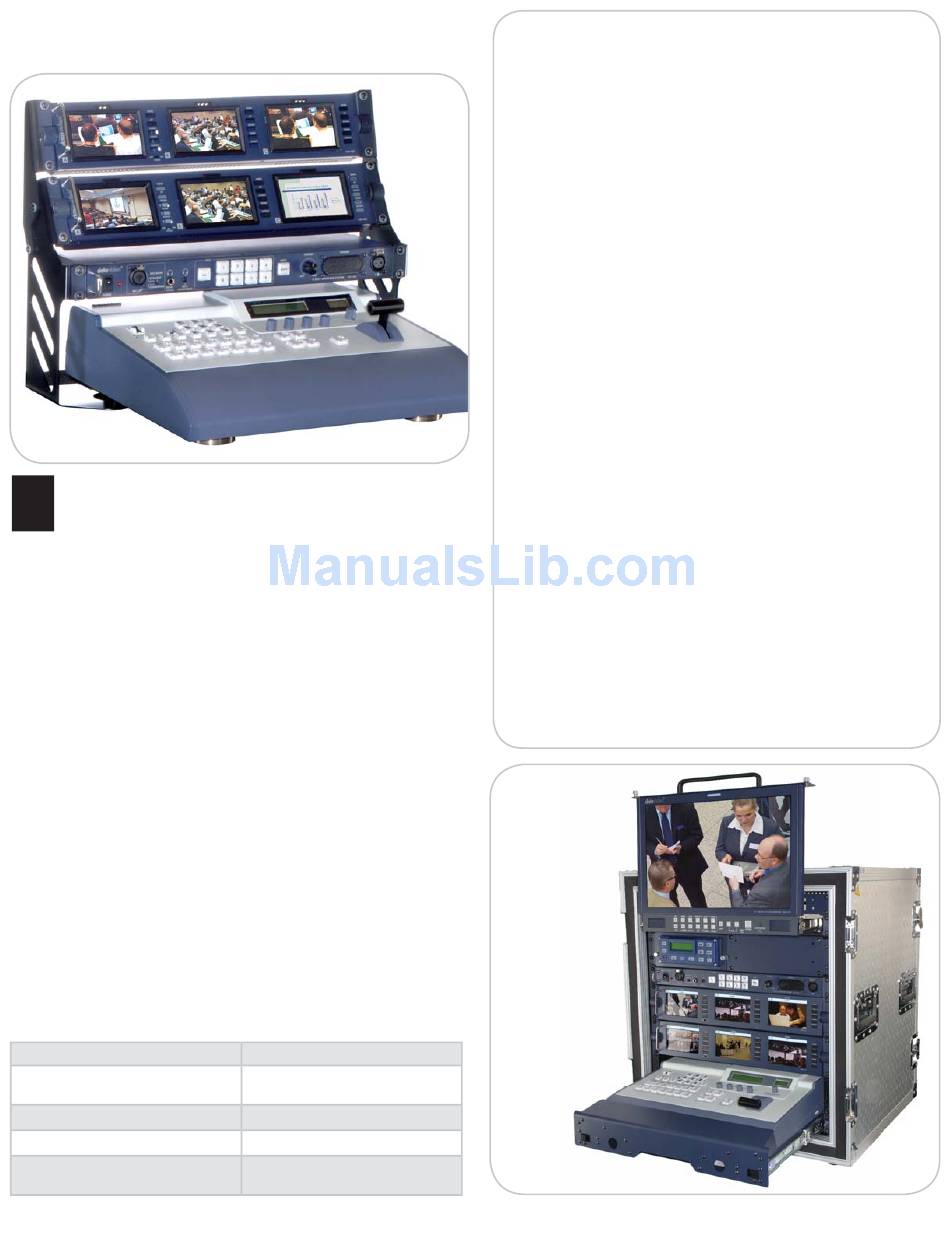

The SE-1000 KIT includes two 19" racks of 3 16:9 monitors, and a holder
that has an extra 1RU space for an intercom. We recommend the
ITC-100 Datavideo wired intercom that also carries the red and yellow tally
signals. The SE-1000 KIT comes with a tally box and six LED tally lights. The
two racks o 16:9 monitors (P/N TLM-433) are included.
Genlock isn't required because there are built-in frame synchronizers.
For those who wish, this switcher may be slaved to an external reference source.
The MS-1000 Mobile Studio is built into road case minimized for size
and weight. The entire system is prewired and includes rear panels to which
you simply connect power and video signals.
The MS-1000 includes:
SE-1000 Switcher
TLM-170 rackmounted pull-out 17" LCD
monitor
Two TLM-433 units with three 4" monitors
TB-10 Tally Box
Rear break-out panel for ITC-100 (XLR,
RS-422 & Ethernet)
2
www.datavideo.us
Locking pull-out shelf for SE-1000
ITC-100 Intercom Kit for SE-1000 w/
extra users
PD-1 Power distributor
Rear switcher input break-out panel
Mobile studio case
SE-1000 Summary
• Video In
- Live Inputs: 5 HD or SD SDI (not mixed)
DVI input for any image or live video from PC
Still Frame memory as a background image from PC
SMPTE color bars
Genlock optional - built-in frame synchronizers
• Video Out
Analog output: HD or SD YUV (1 x PGM, 1 x PVW, 1 x AUX)
Digital output: HD or SD SDI (2 x PGM, 1 x PVW, 2 x AUX)
• Six Internal Converters
The internal converters may be assigned to create SD Composite
monitor outputs.
• Live Source
Indicated by tally light on the monitor and on the camera.
• Monitor
The six internal converters may be used to create six individual 16:9
or 4:3 composite monitor outputs for each video input. Aux output
can select any input or output source for recording and calibration.
• Features
- 6 inputs (5 HD/SD SDI, 1 DVI)
- 3 SDI outputs and 3 analog component outputs
- 10-bit frame synchronizer
- Easy titling with Datavideo's CG-100 Character Generator
- 6 tally outputs
- RS-422 control
- Network interface with an IP address for easy image transfer
- Range of switching effects
- 12V DC operation - 110/220 power adapter included
• Complete Switcher Kit includes
- SE-1000 HD/SD digital video switcher
- Two TLM-433 units (three 16:9 SD composite monitors)
- One RKM-3N3 holder for the two TLM-433s and one intercom.
- One TB-10 tally box
- Six tally lights
MS-1000
