GigE uEye CP Rev. 2
Technical Manual
IDS Imaging Development Systems GmbH
Dimbacher Str. 6-8
D-74182 Obersulm, Germany
T: +49 7134 96196-0
E: info@ids-imaging.com
W: https://en.ids-imaging.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GigE uEye CP Rev. 2 and is the answer not in the manual?

Questions and answers

Related Manuals for IDS GigE uEye CP Rev. 2

Summary of Contents for IDS GigE uEye CP Rev. 2

  • Page 1 GigE uEye CP Rev. 2 Technical Manual IDS Imaging Development Systems GmbH Dimbacher Str. 6-8 D-74182 Obersulm, Germany T: +49 7134 96196-0 E: info@ids-imaging.com W: https://en.ids-imaging.com...

  • Page 2: Table Of Contents

    5 GigE uEye CP Rev. 2 ......................... 8 5.1 Ambient conditions ........................8 5.2 System requirements ........................9 5.3 Connecting a GigE uEye CP Rev. 2 ....................9 6 Mechanical specifications ........................ 10 7 Optical specifications ........................11 7.1 Immersion depth for lenses ......................11 7.2 Position accuracy of the sensor ....................

  • Page 3: Preface

    Please contact your local IDS distributors for first level support in your language. For a list of IDS distributors worldwide please go to our website https://en.ids-imaging.com.

  • Page 4: Symbols And Hints

    Technical Manual: GigE uEye CP Rev. 2 2 Symbols and hints This symbol indicates hints with useful information for better understanding and using features and functions. This symbol indicates important warnings for product safety to prevent damage. This symbol indicates important warnings for personal safety to prevent injury.

  • Page 5: Safety Instructions

    All warranty will be spoiled in this case. Intended use IDS industrial cameras are to be used to capture images for visualization and image processing tasks. They are designed for use in industrial environments. Please comply with the requirements for the proper use of this product.
  • Page 6 Technical Manual: GigE uEye CP Rev. 2 Operation and power supply The camera power supply must meet the requirements for SELV (safety extra low voltage)/LPS (limited power source) or ES1/PS2. WARNING! Non-approved power supplies for camera operation may cause painful or dangerous electric shock.

  • Page 7: Standards And Directives

    Technical Manual: GigE uEye CP Rev. 2 4 Standards and directives (only valid for devices with housing) IDS Imaging Development Systems GmbH hereby confirms that this product has been developed, designed and manufactured in compliance with the following European directives ·...

  • Page 8: Gige Ueye Cp Rev. 2

    55 °C (131 °F). Notes on ambient conditions · Avoid high air humidity levels and rapid temperature changes when using IDS cameras. · Temperatures below +4 °C (39 °F) combined with excessive relative air humidity levels can cause icing.

  • Page 9: System Requirements

    Depending on the sensor model, the camera performance may be limited with the minimum system requirements. 5.3 Connecting a GigE uEye CP Rev. 2 Check the power supply to the camera. Connect the camera to to a Gigabit Ethernet port on the PC either directly or using switches.

  • Page 10: Mechanical Specifications

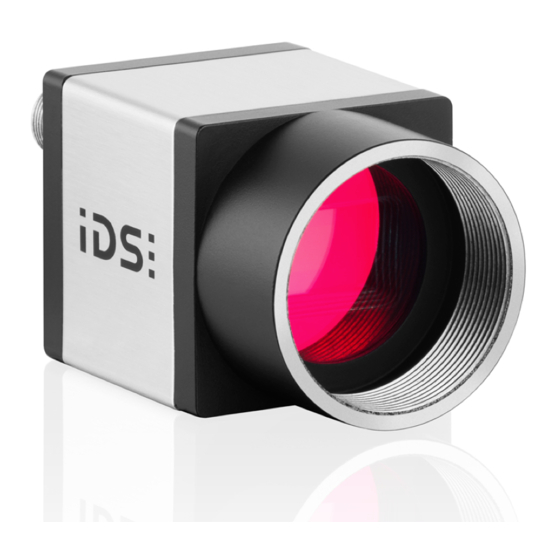

    Technical Manual: GigE uEye CP Rev. 2 6 Mechanical specifications The mechanical data for each camera model can be found on our website directly at the respective camera model beneath in the "Downloads" tab. Fig. 1: GigE uEye CP Rev. 2 NOTICE! The camera connectors may be damaged if you install or remove the camera with plugged in cables.

  • Page 11: Optical Specifications

    Technical Manual: GigE uEye CP Rev. 2 7 Optical specifications · Immersion depth for lenses · Position accuracy of the sensor 7.1 Immersion depth for lenses Some C-mount lenses reach deep into the camera flange. This may cause the lens to push against the back of the filter glass inside the camera or even make it impossible to screw in the lens.

  • Page 12: Position Accuracy Of The Sensor

    Technical Manual: GigE uEye CP Rev. 2 7.2 Position accuracy of the sensor The following illustrations show the tolerance margins of the sensor position relative to the outer camera housing. A maximum error in all directions (rotation, translation) cannot occur at the same time.

  • Page 13: Electrical Specifications

    Bl_DC- socket, camera Bl_DB- rear view Bl_DD+ Bl_DD- The RJ45 socket of the GigE uEye CP Rev. 2 complies with the IEC 60603-7 standard. 8.2 Pin assignment I/O connector 8-pin Hirose connector (HR25-7TR-8PA(73)) Description Ground (GND) Flash output with optocoupler (-) General purpose I/O (GPIO) 1, 3.1 V...

  • Page 14: Digital Input Wiring

    12 V. To supply the GigE uEye CP Rev. 2 camera with power using PoE or PoE+, you can use PoE injectors or switches that are compatible with IEEE standard 802.3af or IEEE standard 802.at.

  • Page 15: Digital Output Wiring

    Technical Manual: GigE uEye CP Rev. 2 Digital input wiring Fig. 7: Wiring of the trigger connector 8.4 Digital output wiring Symbol Min. Typ. Max. Unit Recommended supply voltage Collector-emitter saturation voltage 0.03 0.15 CE(SAT) Collector-emitter breakdown voltage (BR)CE Collector current continuous The digital output is galvanically isolated using an optocoupler to protect the camera and the PC against surges.
  • Page 16 Technical Manual: GigE uEye CP Rev. 2 Fig. 8: Wiring of the digital output as an open collector output Fig. 9: Wiring of the digital output as an open emitter output January 2020...

  • Page 17: General Purpose I/O Wiring

    Technical Manual: GigE uEye CP Rev. 2 8.5 General Purpose I/O wiring The two programmable GPIOs (general purpose I/O) can be used as inputs or outputs. This selection is made by software using the corresponding functions. Please observe the following criteria: Symbol Min.
  • Page 18 Technical Manual: GigE uEye CP Rev. 2 GPIO wiring as output Fig. 11: GPIO wiring as output (1) Fig. 12: GPIO wiring as output (2) January 2020...

  • Page 19: Status Led

    Technical Manual: GigE uEye CP Rev. 2 9 Status LED Fig. 13: Status LEDs The camera has a two-color LED that indicates information on the current status. Camera is off/no power Camera is booting Camera is ready Camera is open...

  • Page 20: Filter Glasses

    Every camera model is available with different filter variants such as daylight cut filters (type DL). The filter type is given at the end of the model name. The following table shows an overview of the different optical filters used in IDS cameras: Refractive...

  • Page 21: Cleaning The Filter Glasses

    The filter glasses may only be cleaned from the outside. If you remove the glasses, the sensor might get soiled.IDS Imaging Development Systems GmbH is not liable for any damage to the sensor resulting from removal of the filter glasses.
  • Page 22 Technical Manual: GigE uEye CP Rev. 2 use purified nitrogen from nitrogen bottles. · Only use lint-free wipes or cotton-free swabs for cleaning. Never touch the filter glasses with your bare fingers because often, fingerprints cannot be removed completely afterwards.

  • Page 23: Index

    Technical Manual: GigE uEye CP Rev. 2 - A - - P - Ambient conditions Pin assignment Plain glass filter - C - - R - Contact RJ45 - D - - S - Daylight cut filter Dimensions Safety Sensor...
