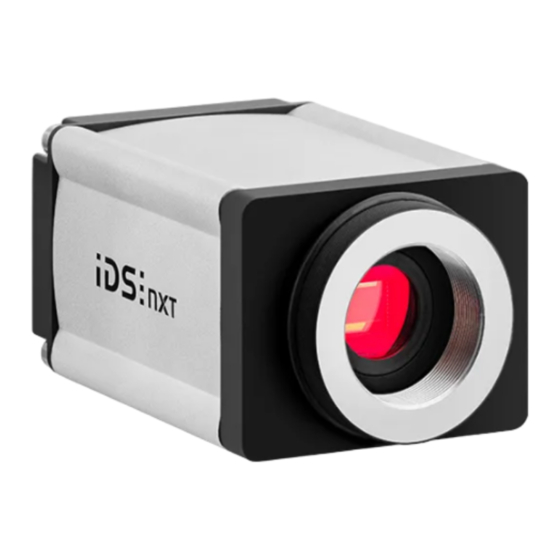

Summary of Contents for IDS NXT rome
- Page 1 IDS NXT Setup IDS NXT rome IDS Imaging Development Systems GmbH Dimbacher Str. 6-8 D-74182 Obersulm, Germany T: +49 7134 96196-0 E: info@ids-imaging.com W: http://www.ids-nxt.com...
-
Page 2: Table Of Contents
4 Standards and directives ........................7 5 IDS NXT rome ........................... 8 5.1 Ambient conditions ........................8 5.2 Connecting a IDS NXT rome ......................9 6 Electrial specifications ........................11 6.1 Pin assignment GigE connector (M12) ..................11 6.2 Pin assignment I/O connector ..................... 11 7 Status LED ............................ -
Page 3: Preface
Please contact your local IDS distributors for first level support in your language. For a list of IDS distributors worldwide please go to our website http://www.ids-nxt.com. -
Page 4: Symbols And Hints
IDS NXT: Setup IDS NXT rome 2 Symbols and hints This symbol indicates hints with useful information for better understanding and using features and functions. This symbol indicates important warnings for product safety to prevent damage. This symbol indicates important warnings for personal safety to prevent injury. -
Page 5: Safety Instructions
All warranty will be spoiled in this case. Intended use IDS industrial cameras are to be used to capture images for visualization and image processing tasks. They are designed for use in industrial environments. Observe the requirements for the proper use of this product. - Page 6 IDS NXT: Setup IDS NXT rome Operation and power supply The camera power supply must meet the requirements for SELV (safety extra low voltage)/LPS (limited power source) or ES1/PS2. WARNING! Non-approved power supplies for camera operation may cause painful or dangerous electric shock.
-
Page 7: Standards And Directives
IDS NXT: Setup IDS NXT rome 4 Standards and directives (only valid for devices with housing) IDS Imaging Development Systems GmbH hereby confirms that this product has been developed, designed and manufactured in compliance with the following European directives ·... -
Page 8: Ids Nxt Rome
Humidity 20 % … 100 %, relative, non-condensing * Only if IDS NXT rome lens tube and IP65/67 cables are used Non-condensing means that the relative air humidity must be below 100 %. Otherwise, moisture will form on the camera surface. If, for example, air has a relative humidity of 40 % at 35 °C (95 °F), the relative humidity will increase to over 100 % if the air cools down to 19.5 °C (67 °F);... -
Page 9: Connecting A Ids Nxt Rome
IDS NXT: Setup IDS NXT rome Notes on ambient conditions · Avoid high air humidity levels and rapid temperature changes when using IDS cameras. · Temperatures below +4 °C (39 °F) combined with excessive relative air humidity levels can cause icing. - Page 10 IDS NXT: Setup IDS NXT rome Cabling · The data network and the camera network should be cabled separately. Therefore, it is recommend connecting the cameras by a separate network card. · It is recommend to use Cat5e type cables.
-
Page 11: Electrial Specifications
BI_DD- camera rear view MDX2- BI-DC- MDX2+ BI_DC+ The M12 connector of the IDS NXT rome complies with the IEC/PAS 61076-2-109 standard. 6.2 Pin assignment I/O connector 12-pin M12 connector (Attend 216A-12MSR) Signal Description VBUS Power supply: 12-24 V DC +20 %... - Page 12 Choose the size of the cable in such a way that the supply voltage available at the input of the camera is at least 12 V. To supply the IDS NXT rome camera with power using PoE or PoE+, you can use PoE injectors or switches that are compatible with IEEE standard 802.3af or IEEE standard 802.at.
-
Page 13: Status Led
IDS NXT: Setup IDS NXT rome 7 Status LED Fig. 4: Status LEDs The camera has two LEDs that indicate information of the current status. · LED 1: camera status (two-color) · LED 2: Network status (two-color) LED 1 Camera is off/no power... -
Page 14: Setup In Network
After launching, you will be in the "Device overview". IDS NXT cockpit scans the network for IDS NXT cameras and lists them in this overview. A log-on to IDS NXT cameras is possible by direct entry of an IP address. -
Page 15: Logging On To The Device
The passwords for the user classes "admin" and "service" are "ids" when delivered. They can be changed using the administrator profile. No password is required for the "user" user class. How to change the passwords is described in the manual "IDS NXT - Operation with the IDS NXT cockpit". -
Page 16: Network Configuration In Ids Nxt Cockpit
8.5 Network configuration in IDS NXT cockpit After logging onto a IDS NXT camera, you will see the “Dashboard” which displays various device information. To set the network parameters select "Configuration > Network". · The "Obtain IP address automatically (DHCP)" option is activated by default. It is recommended to keep this setting. -
Page 17: Firmware Update
IDS NXT: Setup IDS NXT rome 9 Firmware update The IDS NXT rome cameras are based on the Vision standard and can be updated like a Vision camera using a GUF file. Use the "ids_deviceupdate" tool to update the firmware. The "ids_deviceupdate" tool can be found in the installation directory of the IDS NXT cockpit, e.g. - Page 18 IDS NXT: Setup IDS NXT rome 2. Make sure that camera and host are in the same subnet. 3. The following steps are identical to the description under IP address with DHCP. After the firmware update, the camera will automatically start into the runtime firmware.
-
Page 19: Troubleshooting/Faq
When logging on to IDS NXT cockpit, it is checked whether the firmware on the camera is up-to-date. If this is not the case, a message is displayed. The firmware update for IDS NXT rome is not performed with the IDS NXT cockpit. -
Page 20: Booting The Camera In Service Firmware
There are no more vision apps available on the camera after resetting to factory defaults? · Resetting to factory defaults resets the camera to the firmware without vision apps. You need to reinstall the vision apps. You can download the vision apps in the download area of the IDS website: https://en.ids- imaging.com/downloads.html 10.1 Booting the camera in service firmware... -
Page 21: Booting The Camera In Runtime Firmware
10.3 Booting the camera in runtime firmware Use the "ids_devicecommand" tool to boot the camera in runtime firmware. The "ids_devicecommand" tool can be found in the installation directory of the IDS NXT cockpit, e.g. under "C:/Program Files/IDS/ids_nxt_cockpit_2_0/visiontools". Fig. 9: Boot the runtime firmware 1. -
Page 22: Index
IDS NXT: Setup IDS NXT rome - A - - P - Ambient conditions Pin assigment Authorization - R - admin Runtime firmware service user - S - - C - Safety Service firmware Camera Specification factory setting 19, 20...
