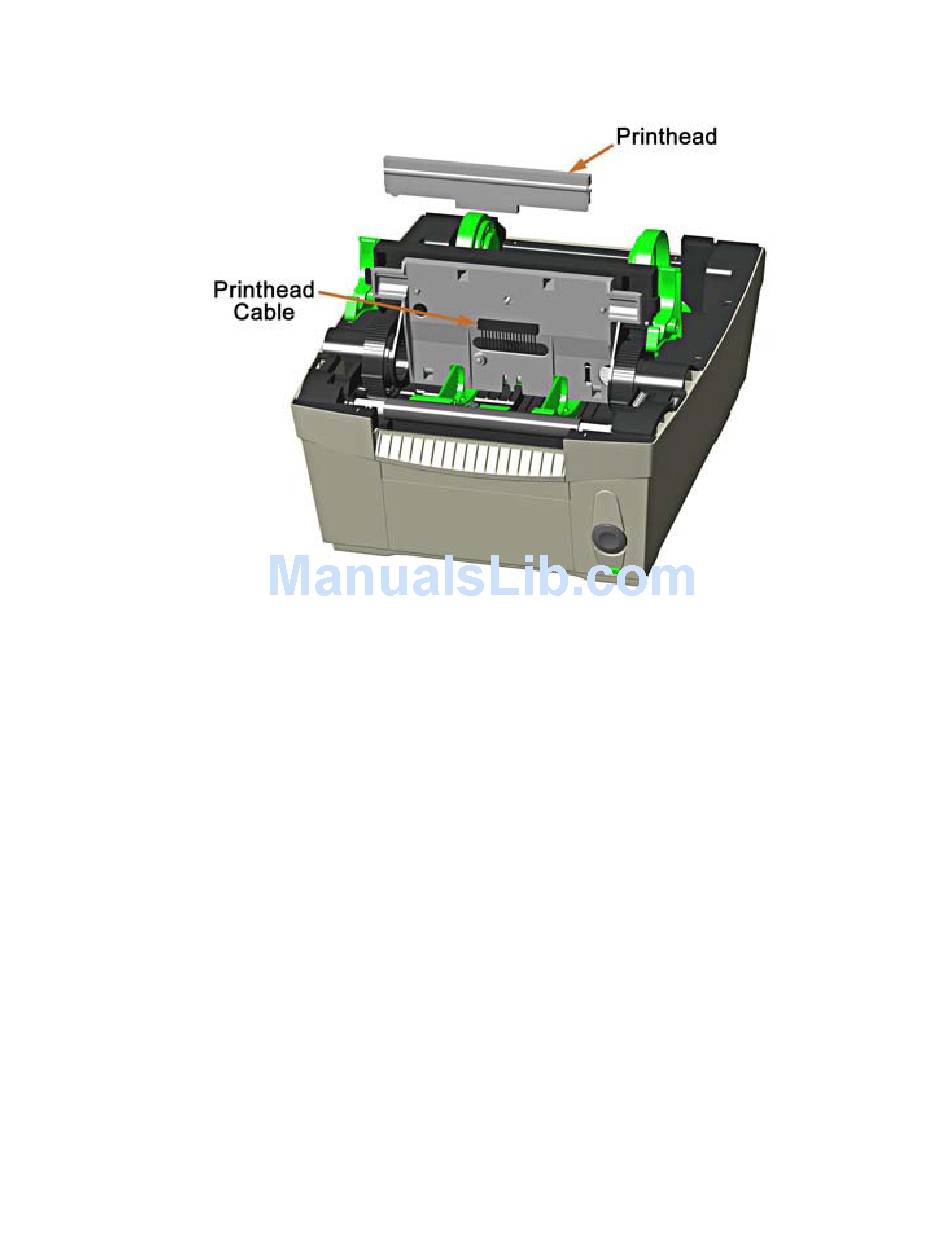

3. Press down on the Printhead Latches and raise the Printhead Carrier. Disconnect the
Printhead Cable and then remove the Printhead.
4. While carefully holding the new Printhead, connect the Printhead Cable.
5. Position the Printhead onto the Locating Pins in the Printhead Assembly and secure in place
with the Printhead Mounting Screw (do not over-tighten).
6. Clean the Printhead.
