Contents Mobile controls....3 Putting into operation..5 Switch on / off......7 Keypad lock......8 Charging......9 Making calls.......11 Emergency call....13 Flashlight......15 Safety instructions.....16 Used electric device..18 Battery liquidation....19...
Page 4

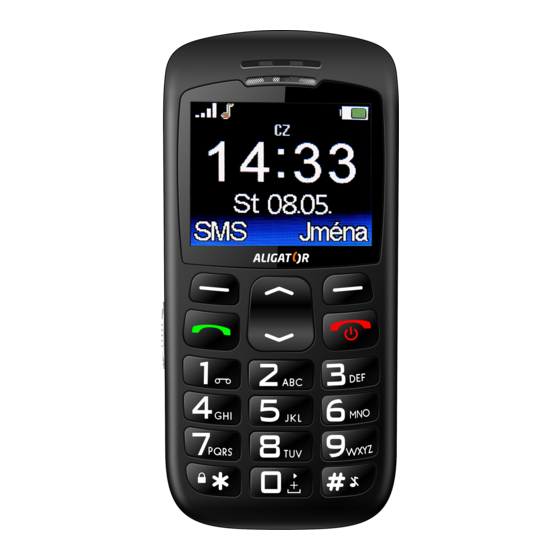

Right functional button Left functional button Navigation button up / down Red button Green button Button 0 Button # Button * Contacts for the stand 10 MicroUSB connector 11 Flashlight 12 Earphone 13 Flashlight switch...
Putting into operation Insert of battery and SIM card: 1. Slip your nail at the slot under the mobile cover in the bottom corner on the back side of the mobile phone and carefully pull down the cover. 2. Insert SIM and also memory cards (if you have) at the positions marked SIM.
Page 6
3. Insert the battery. Three metal contacts must lead towards the bottom side of the mobile phone. Battery must click smoothly into the slots in the mobile phone. 4. Put the battery cover back. Place the cover on the back side of the mobile phone and press gently around the circuit untill the cover clicks...
Switch on / off To Switch On - press and hold the RED button (4) till the mobile turns on. (Now you can be asked to enter the PIN code in case the PIN protection is activated)
To Switch off - press and hold the RED button (4), untill the mobile turns off. Before Switching On of the mobile phone be sure that the battery is inserted and is charged. Keypad lock Mobile phone is provided with the keypad lock which prevents from the unwanted press of the buttons (f.e.when placed at the...
or press the red button (4) on the main screen. To UNLOCK the keypad press and hold a side button *(8) till the keypad is unlocked. Charging Be sure that the battery is placed at the mobile phone. Connect it with the charger and charging will start automatically.
Page 10
Discharged Fully charged After the battery is fully loaded disconnect the charger from the network and from the mobile phone ! Mobile phone will warn you by an acoustic signal and by message on the screen when the battery is almost discharged.
Making calls Dialling Dial required phone number on the mobile keypad and press the green button (5). Mobile phone will start dialling of required number. If you have dialled by mistake a wrong number, just press the left button (1) and the last digit will be deleted.
Page 12
hold the red button (4) untill the whole number is deleted. Answer / reject the call For answering of the call press green button (5) For rejecting of the call, press red button (4). If somebody is calling, you will see his telephone number on the display.
(Function of displaying of the tel.number need not be always available) Emergency call If you are in danger or you need an assistance of your relatives or your doctor, press the SOS button placed on the back side of the mobile phone.
Page 14
Attention ! First you need to activate this function in your mobile. You must insert correct tel.numbers which should be contacted in case of emergency.
If you do not insert the tel.numbers the mobile / SOS button will not work properly. Flashlight Mobile phone is provided with a flashlight placed on the bottom side of the mobile phone. Flashlight can be turned on by the switch (13) placed on the side of the mobile phone.
Flashlight can be turned on even in case the mobile phone is switched off (with charged battery) Safety instructions Do not Switch On and do not use the mobile phone in the prohibited areas Do not use the mobile phone while driving the ...
Page 17
Do not use the mobile phone near the filling petrol station Turn off the mobile phone always near explosives Use always original batteries supplied by the producer (danger of damage or explosion of the mobile phone) Attention! Your mobile phone is NOT waterproof !
Used electric device Mobile phone is an electronic appliance. It means it must not be manipulated as a common residential waste. Never throw the used device away at the common municipal waste ! It must be, after the use, handed over to the appropriate collection point for its recyclation and ecological liquidation.
