Summary of Contents for ALIGATOR A440

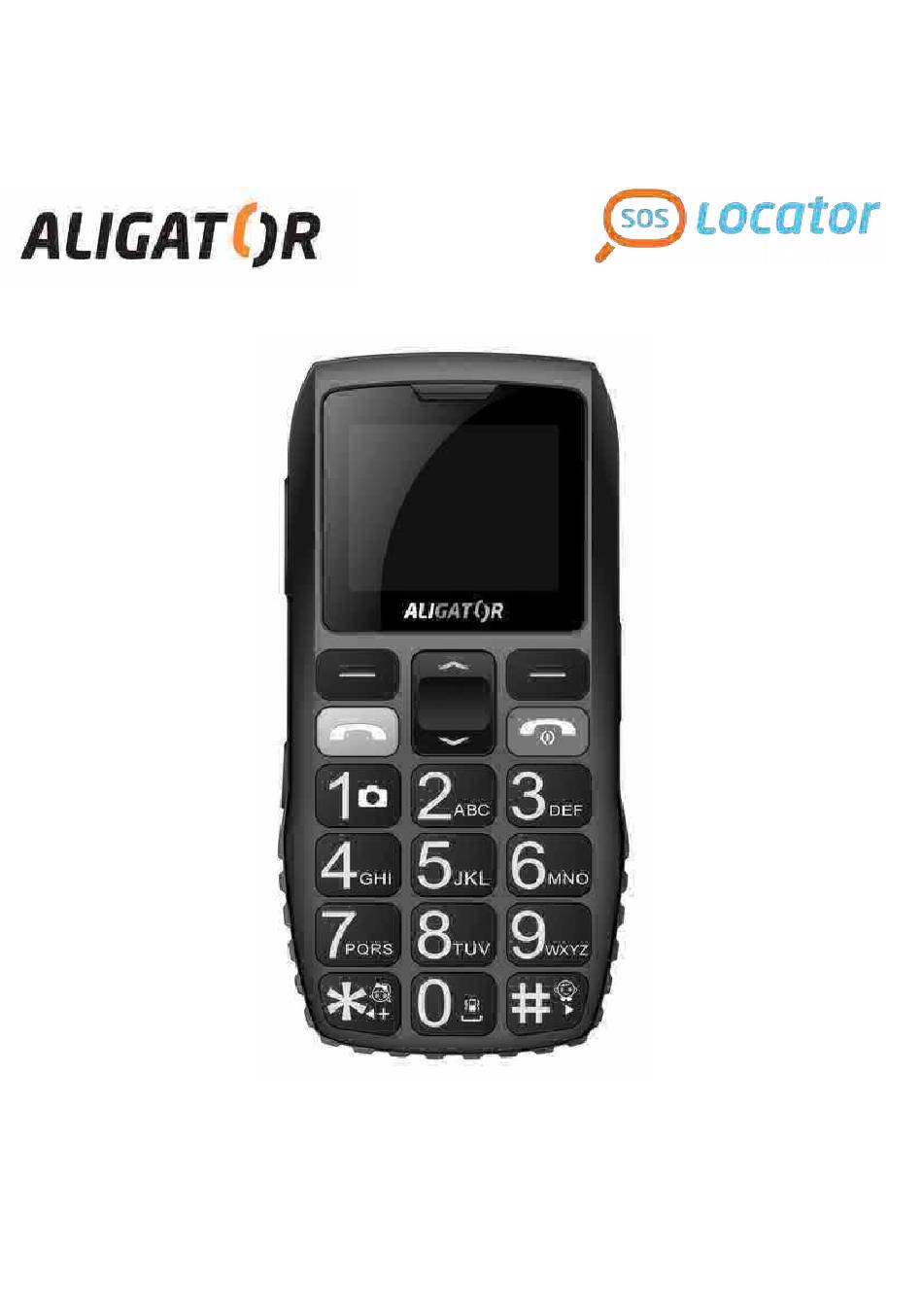

  • Page 1 Quick Guide A440...

  • Page 2: Table Of Contents

    Contents Safety instructions........3 Putting into operation........5 Battery charging........6 Switch On / Off..........7 Mobile controls..........8 Making calls..........13 Contact list..........14 Photo contacts........15 SOS call and SMS........16 SOS Locator..........17 SMS Messages........21 FM Radio..........22 Bluetooth..........24 Mobile phone setting........25 Security...........26 Safety and ecology........27 Used electric device........27 Battery liquidation........27 Declaration of conformity......28...

  • Page 3: Safety Instructions

    Safety instructions Thank you for your purchase of the ALIGATOR mobile phone. Please read this instruction manual before use.  Do not switch on nor use the mobile phone in the prohibited areas  Do not use the mobile phone while driving the car ...
  • Page 4  Turn off the mobile phone always near explosives  Use always original batteries supplied by the producer (danger of damage or explosion of the mobile phone). Do not throw the battery in the fire nor expose it to the temperatures over +60°C.

  • Page 5: Putting Into Operation

     Keep it out of reach of children. It contains small parts that could be swollowed or may hurt  Sometimes, the top of the external display, including battery and signal icons, may not appear. In this case, turn the phone off and on to display it correctly.

  • Page 6: Battery Charging

    nsert the battery. The three metal contacts must point toward the upper part of the phone. Make sure that the battery clicks smoothly into the slot at the mobile phone. Put the battery cover back. ATTENTION! Turn off the phone and disconnect the charger when handling the battery, card or SIM card.

  • Page 7: Switch On / Off

    Mobile phone will warn you by an acoustic signal and by message on the screen when the battery is almost discharged. In this case charge the battery as soon as possible. Switch On / Switch Off to SWITCH ON the phone - press and hold the red button, till the phone turns on.

  • Page 8: Mobile Controls

    Mobile Controls Description of mobile controls Button Function Right starts contacts in functional standby mode button return from menu or...
  • Page 9 exit current function other functions depending on context (current function is shown on display above the key) displays Message in standby mode confirms selection in menu or activates Left selected function (OK) functional other functions button depending on context (current function is shown on display above the key) Navigation...
  • Page 10 phone directrory -long press to Switch On / Off -stop or reject a call Red button -return from the menu or exit current function on the main screen press the button to Green answer the call button -displays call history in standby mode Button 0 when writing...
  • Page 11 on/off silent mode „Meeting“ inserts # when writing numbers Button # in text writing mode toggles method of character imput inserts *,+, p, w when writing numbers - in text writing mode Button enables to insert special characters -shift up to lock the Keyboard phone keypad lock switch...
  • Page 12 Powerful LED flashlight is placed Flashlight on the upper side of the phone Earphone For call listening Press and hold the Flashlight button to turn on/off switch the flashlight Contacts of Used for charging in the stand the stand Used for Earphone headphones connector...

  • Page 13: Making Calls

    Icons on the screen Battery charge level Signal strength Alarm clock activated Unread SMS message Ringtone off / vibration Missed call Making calls Dialling Insert required phone number on the mobile keypad and press the green button (5). Mobile will start to dial required number.

  • Page 14: Contact List

    In case 2 SIM cards are inserted in the phone, you will be asked before dialing the number which SIM card should be used for calling. In this case, use the Up / Down button (3) to select the desired SIM card and press OK. If you have dialled by mistake a wrong number, just press the right button „Delete“...

  • Page 15: Photo Contacts

    Dial numbers from contacts list Press the right button (1). You can now enter the first letter of the name you are looking for. After that, the list of contacts, sorted by name in alphabetical order, starts immediately. Use the up and down buttons to select the contact you want to call and press the green call key (5).

  • Page 16: Sos Call And Sms

    Speed Dial : in menu Settings – Speed Dial SOS call and SMS Starting the emergency call and SMS Press and hold the SOS button. An audible alarm sounds and a countdown begins, during which the emergency call can be interrupted. The phone will automatically dial the preset numbers from the list until they can call one.

  • Page 17: Sos Locator

    To deactivate the running SOS call and alarm event. the emergency mode after pressing the SOS button, press the right button Off (1) and then turn the phone off and on again. SOS function is only available if it is enabled in the settings of the phone and if the numbers are set up at the phone that the mobile should automatically call and send SMS message to.
  • Page 18 eg. in the cities the position can be determined with an accuracy of tens to a few hundred meters, outside the buildings/cities but a focus accuracy usually decreases. This service is provided without any guarantee, at the own risk of an user and the accuracy of the results or the availability of services is not guaranteed by the supplier of telephone, operator or provider of maps.
  • Page 19 Position of your mobile phone can be remotely detected by using of a special control SMS. It is sufficient to send just a command via SMS with a text SOSLOCATOR to your ALIGATOR mobile phone. Your ALIGATOR phone then responds by sending of the current position via SMS.
  • Page 20 Setting of SOS emergency function Select in menu : SOS settings The menu appears: Regime – Allows to switch SOS function. You can choose the following options:  Off – SOS functions including the SOS button are off  Normal - SOS calls and sending of emergency SMS are activated, but positioning is turned off ...

  • Page 21: Sms Messages

    and tries to call all of them when the SOS button is activated Call settings Select in menu : Calls SettingsSIM1/2 call set up SMS Messages Your phone can receive and send SMS text messages. The new message you receive will be notified by a symbol on the phone screen.

  • Page 22: Fm Radio

    Working with messages Select Messages in the main menu and choose from the offered options FM Radio Select in menu: Multimedia  Radio: Press the volume buttons * (8) and # (7) or (16) to adjust the volume You can change the frequency using the buttons 4 and 6 (automatic tunning) or 2 and 8 (manual set up).
  • Page 23 Alarm Clock Your phone comes with several independent alarm clocks. Select in menu : Organizer  Alarm clock Ringtone and sound settings The phone allows you to set different kinds of ringtones including vibration, different melodies, sounds and also the volume of these sounds. Select in menu : Settings...

  • Page 24: Bluetooth

    Bluetooth connection Bluetooth is a modern system that allows you to wirelessly connect different devices, such as a wireless hands-free phone, a phone and a computer, or two phones with each other. It is possible to transfer call sound or send files or receive files from another device.

  • Page 25: Mobile Phone Setting

    Mobile phone setting Select in menu : SettingPhone Allows you to set basic phone parameters: Time and date – enables to set time, date and time zone Language – to set the language of the phone menu Writing Language – to set the language of the phone for text writing Display –...

  • Page 26: Security

    Security Select in menu: Settings Security. Enables to set up the PIN code of the SIM card and phone password Restore settings Select in menu: Settings  Restore settings. Allows you to reset the phone to its factory settings. It requires a password for your phone.

  • Page 27: Safety And Ecology

    Safety and ecology Used electric device Mobile phone is an electronic appliance. It means it must not be manipulated as a common residential waste. Never throw the used device away at the common municipal waste!!! They may contain the substances dangerous to the environment.

  • Page 28: Declaration Of Conformity

    +60°C. Danger of explosion or fire. Declaration of Conformity ADART COMPUTERS s.r.o. declares that the type of ALIGATOR A440 radio device is in compliance with Directive 2014/53 / EU. w ww.aligator.cz Copyright © 2018 ADART COMPUTERS s.r.o. , CZ-Prague...
