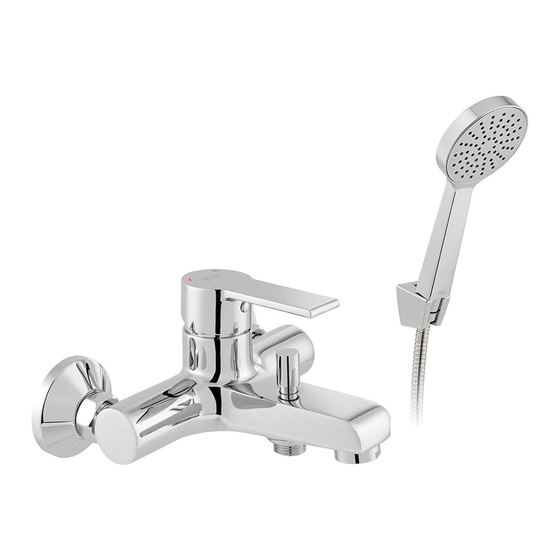

VADO AXCES IRLO AX-IRO-123+K-CP Installation & User Manual

Bath shower mixer with shower kit
Hide thumbs
1
2
3
4
5
6

Advertisement

Table of Contents

This instruction booklet covers model:
AX-IRO-123+K-CP
VADO
Wedmore Road, Cheddar,
Somerset, England BS27 3EB
tel 01934 744466
fax 01934 744345
www.vado.com
sales@vado.com
INSTALLATION /
USER MANUAL
BATH SHOWER MIXER
WITH SHOWER KIT
Version 1, 1-8-19
KEEP FOR FUTURE REFERENCE
IRLO

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AXCES IRLO AX-IRO-123+K-CP and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for VADO AXCES IRLO AX-IRO-123+K-CP

Summary of Contents for VADO AXCES IRLO AX-IRO-123+K-CP

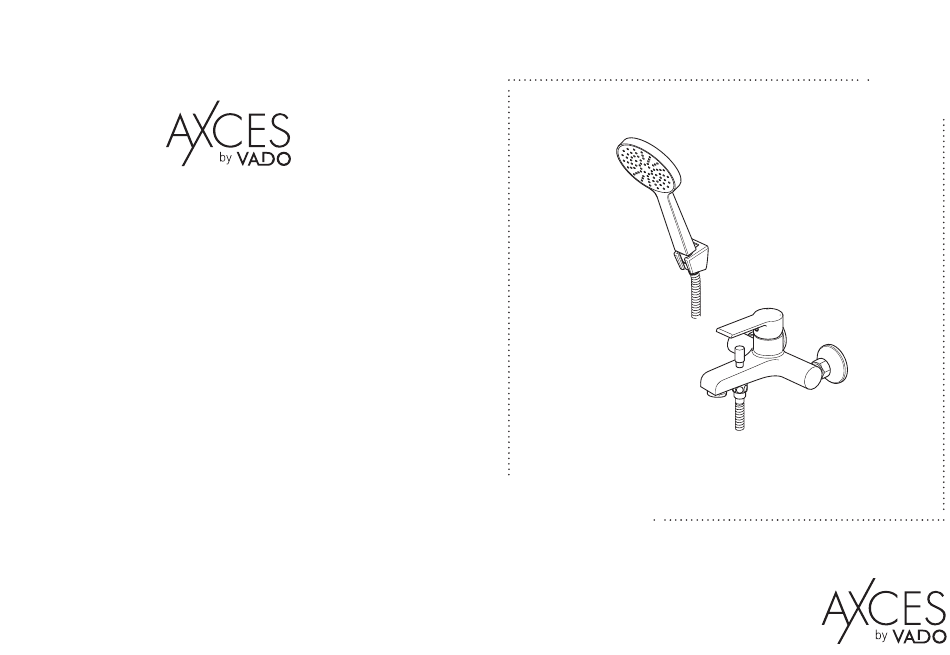

  • Page 1 KEEP FOR FUTURE REFERENCE IRLO This instruction booklet covers model: AX-IRO-123+K-CP INSTALLATION / USER MANUAL VADO Wedmore Road, Cheddar, Somerset, England BS27 3EB BATH SHOWER MIXER tel 01934 744466 fax 01934 744345 WITH SHOWER KIT www.vado.com sales@vado.com Version 1, 1-8-19...

  • Page 2: General Installation

    Important - please read Contents of Packaging Please read these instructions carefully before starting installation and keep for future reference. Remove all packaging and check the product for missing parts or damage before starting installation. Any alterations made to this product and fittings may infringe water regulations and will invalidate the guarantee.
  • Page 3 Dimensions Installation - Quick guide 150mm 1/2” 118.5mm 167mm 183mm...

  • Page 4: Installation

    Installation - Quick guide Installation Offset connector ½” connector Control handle Cold Offset connector Shrouds Rubber washer Locking nuts Shower hose connection Before installing your new mixer, flush through the pipe work to ensure removal of debris, turn off the water supply. Prepare the wall with 2 flush ½”...

  • Page 5: Operation

    Installation Operation: Handset holder Pencil Warning! Please check for any hidden pipes and cables before drilling holes in the wall. If you are fitting the unit to a partition wall or a wall of particularly soft substrate you will need specialist fixings. Holder Select the position for the shower holder bracket and mark the 2 fixing positions...

  • Page 6: Cleaning Instructions

    •The extended guarantee is only available if you have completed the Guarantee Registration Process. This can be done via the VADO website or via phone to our aftersales team. Registration must be completed within 6 months from date of purchase.
