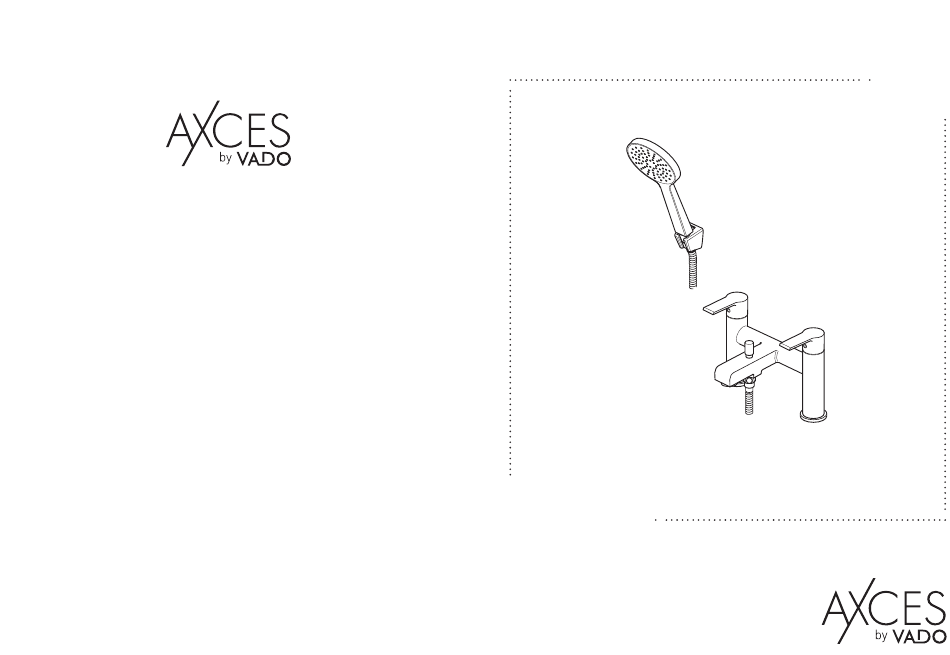

  • Page 1 KEEP FOR FUTURE REFERENCE IRLO This instruction booklet covers model: AX-IRO-130+K-CP INSTALLATION / USER MANUAL VADO Wedmore Road, Cheddar, Somerset, England BS27 3EB BATH SHOWER MIXER tel 01934 744466 fax 01934 744345 WITH SHOWER KIT www.vado.com sales@vado.com Version 1, 1-8-19...

  • Page 2: General Installation

    Important - please read Contents of Packaging Please read these instructions carefully before starting installation and keep for future reference. Remove all packaging and check the product for missing parts or damage before starting installation. Any alterations made to this product and fittings may infringe water regulations and will invalidate the guarantee.
  • Page 3 Dimensions Installation - Quick guide 142mm 80mm ½" ¾" 216mm 36mm 46mm 180mm...

  • Page 4: Installation

    Installation - Quick guide Installation Cold control handle Hot control handle Rubber washer Seal Hot inlet Seal Cold inlet Rubber washer Rubber washer Before installing your new mixer, flush through the pipework to ensure removal of debris, turn off the water supply. Position both seals into the bottom of the mixer body.

  • Page 5: Operation

    Operation Installation Handset holder Pencil Warning! Please check for any hidden pipes and cables before drilling holes in Diverter the wall. Pull the shower control If you are fitting the unit to a partition wall knob up to turn on the or a wall of particularly soft substrate you shower, turn clockwise to will need specialist fixings.

  • Page 6: Cleaning Instructions

    •The extended guarantee is only available if you have completed the Guarantee Registration Process. This can be done via the VADO website or via phone to our aftersales team. Registration must be completed within 6 months from date of purchase.
