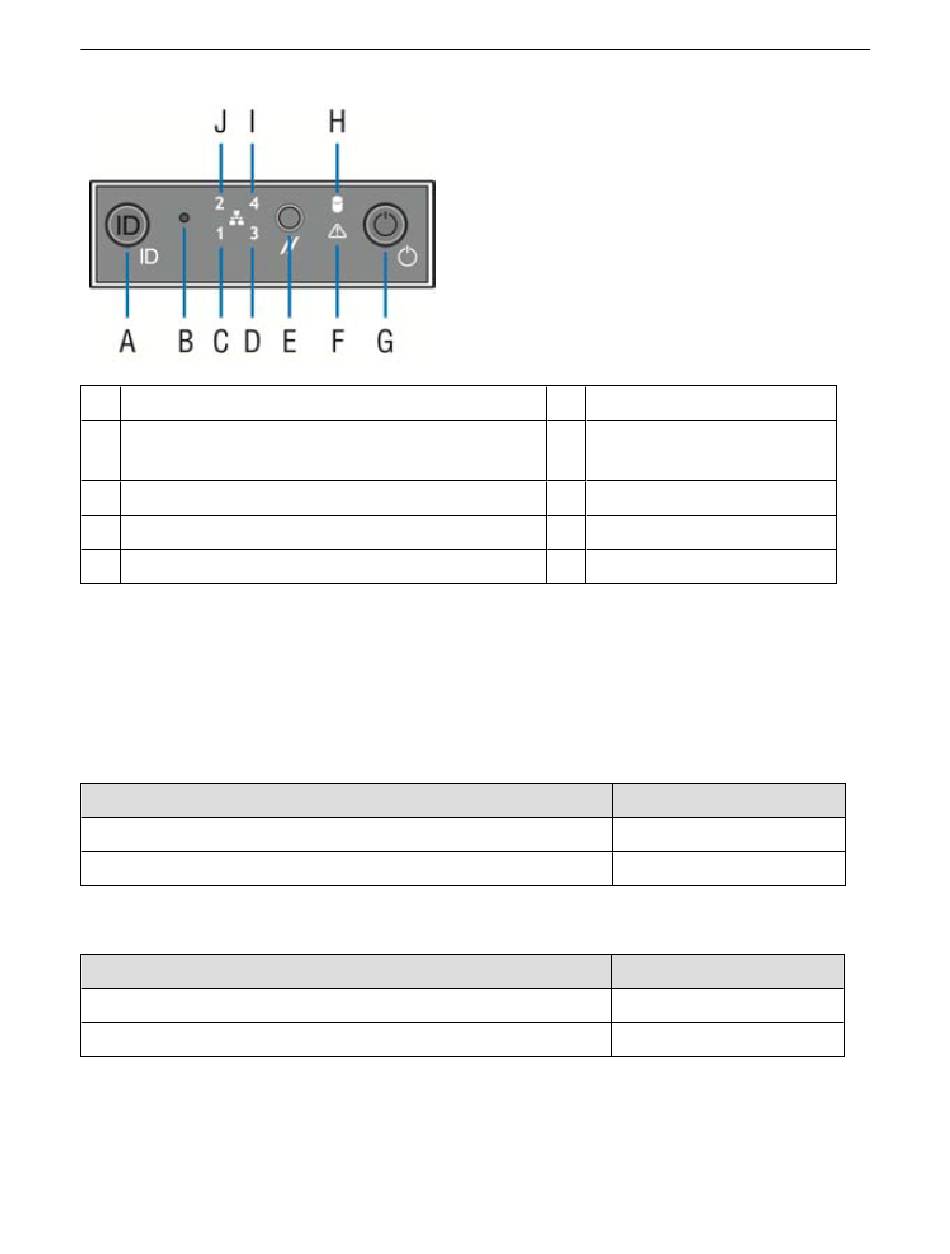

A
System ID button w/integrated LED
B
NMI button (recessed, tool required for use)
C
Mgmt port activity LED
D
Not used
E
System cold reset button

Hard Drive LED Indicator Patterns

The hard drive has two LED indicators visible from the front of the system: one is
a green LED for disk activity, and the other is amber and indicates hard drive
status. The following tables describe the LED states.
Hard Drive Activity LED Indicator Patterns
Hard Drive Condition
Power on and drive spinning up or spinning down
Power on with drive activity
Hard Drive Status LED Indicator Patterns
Hard Drive Condition
No access or no fault
Hard drive fault has occurred
F
System status LED
G
Power button
w/integrated LED
H
Hard drive activity LED
I
Not used
J
Not used
Activity LED Patterns
Off
Blinking green
Status LED Patterns
Off
Solid amber
10 of 31
Front Panel Features
