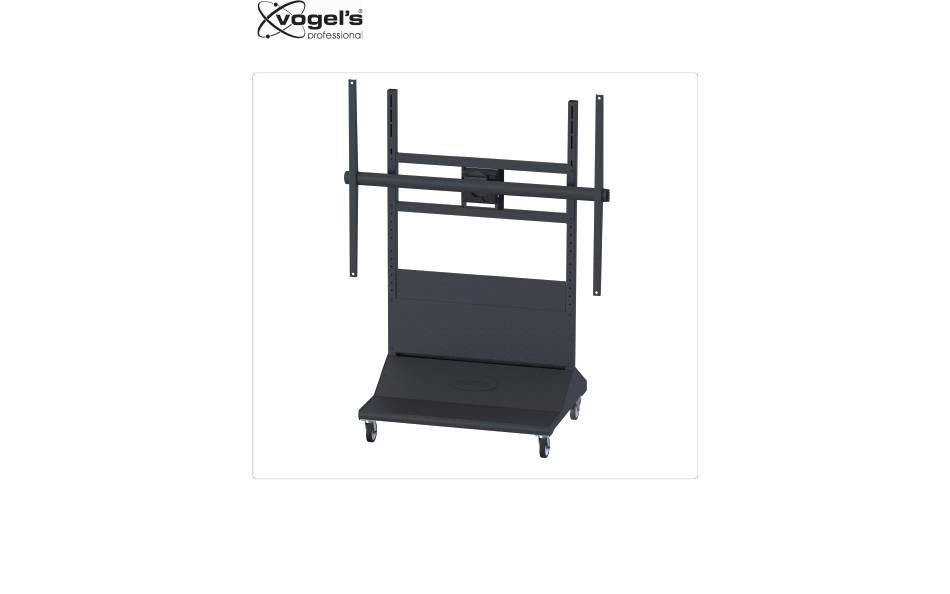

- Page 1 PFT8857 Installation Guide Installationsanleitung, Guía de Instalacíon, Guida de Installazione, Guide d’Installation, Installatie gids www.vogels.com 9531-060-Z05-00...
- Page 2 PFT8857 Installation Guide Installationsanleitung, Guía de Instalacíon, Guida de Installazione, Guide d’Installation, Installatie gids Included components M6 x 12mm M8 x 10mm M5 x 6mm 5/32” 2.5mm M16 x 35mm 14mm M8 x 60mm M8 x 60mm M6 x 10mm...
- Page 3 PFT8857 Installation Guide Installationsanleitung, Guía de Instalacíon, Guida de Installazione, Guide d’Installation, Installatie gids Repeat the same procedure with the upper rear panel to the Loosely install the front upper cover to the front of the cart leg assembly with the four each “button head” Allen screws with the four M6 x 1.0 x 10mm”button head”...
- Page 4 PFT8857 Installation Guide Installationsanleitung, Guía de Instalacíon, Guida de Installazione, Guide d’Installation, Installatie gids With the rear of the lower pan exposed now would be the Install the lower front panel cover to the frame front and time to place and wire any powered support products feed- secure to the frame assembly with the four each M6 x 1.0 x...
- Page 5 PFT8857 Installation Guide Installationsanleitung, Guía de Instalacíon, Guida de Installazione, Guide d’Installation, Installatie gids Slide the left and right display mounting brackets over the cross bar and install the left and right M6 x 1.0 x 12mm se- curity Phillips head screws supplied into the cross bar.
- Page 6 PFT8857 Installation Guide Installationsanleitung, Guía de Instalacíon, Guida de Installazione, Guide d’Installation, Installatie gids Remove the M6 security holding screw from the receiver and Depending on the size and weight of the display use ap- set to the side for re-install after the crossbar and display propriate number or personal and lift assistance device to are installed into the received slots.
- Page 7 PFT8857 Installation Guide Installationsanleitung, Guía de Instalacíon, Guida de Installazione, Guide d’Installation, Installatie gids With the 2.5mm Allen head wrench supplied install the two Vertical flatness of the installed display can be adjusted us- 2 19 each M5 x 6mm mini adjustment Allen head screws supplied ing an M10 socket and ratchet on the lower “head assembly.
- Page 8 PFT8857 Installation Guide Installationsanleitung, Guía de Instalacíon, Guida de Installazione, Guide d’Installation, Installatie gids ITEM NO. QTY. PART NO. DESCRIPTION 3201-000-010-XX VERTICAL LEFT LEG ASSEMBLY 2X2 3201-000-020-XX VERTICAL RIGHT LEG ASSEMBLY 2X2 0725-DCG-W02-13 PLUG PUSH-IN RIBBED SQUARE CAP 2 X 2"...
