PFW 6880
Press and Release ™ Pop Out Slim
PFW 6880
Installation Guide
Installation Guide
Installationsanleitung, Guía de Instalacíon, Guida de Installazione,
Installationsanleitung, Guía de Instalacíon, Guida de Installazione, Guide d'Installation, Installatie gids
Guide d'Installation, Installatie gids
Press and Release ™ Pop Out Slim
v4.0
www.vogels.com | Europe +31 (0)40 26 47 400
Max: 45kg/100lbs
MOUIN_PFW6880_V02

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PFW 6880 and is the answer not in the manual?

Questions and answers

Related Manuals for vogel's PFW 6880

Summary of Contents for vogel's PFW 6880

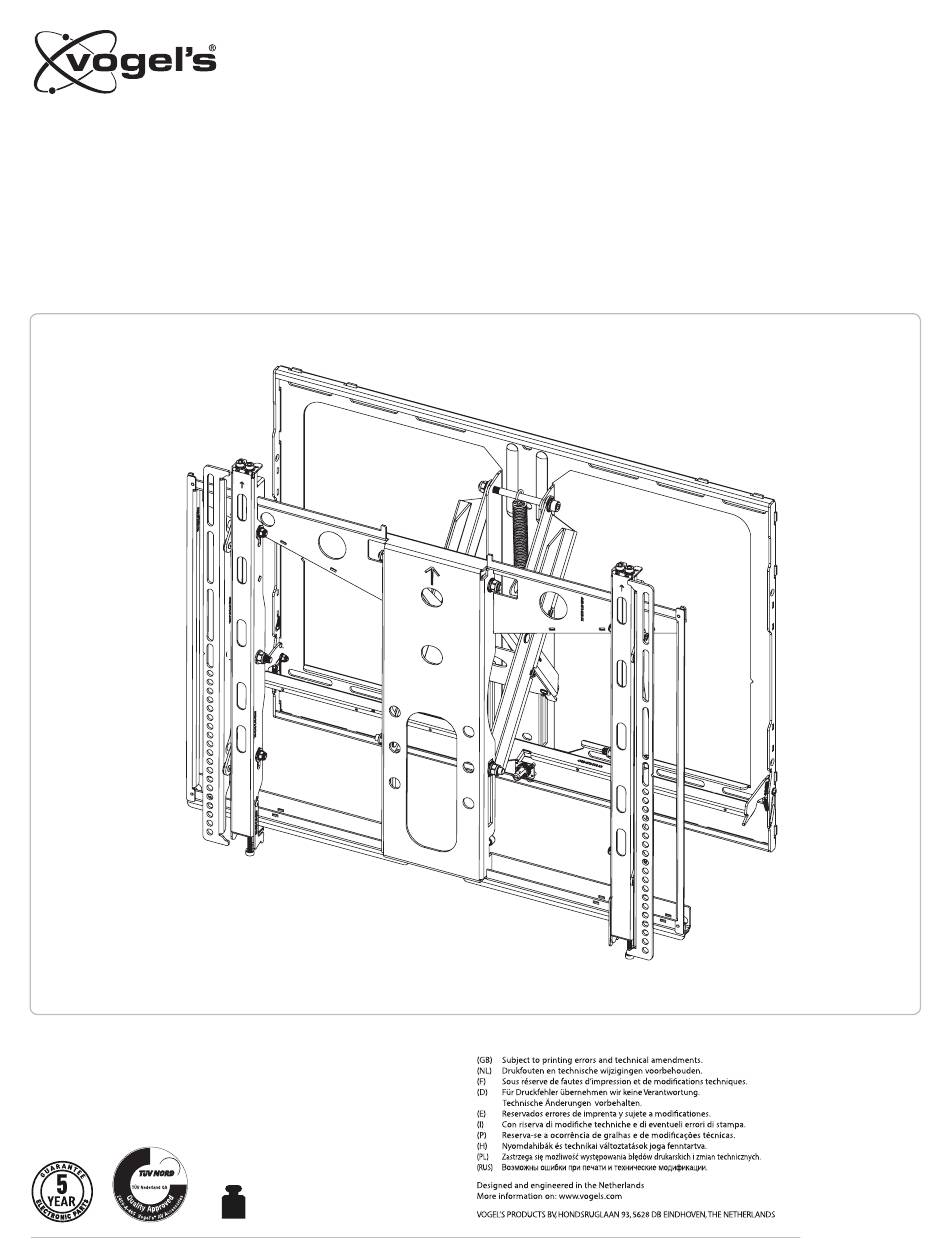

  • Page 1 PFW 6880 Press and Release ™ Pop Out Slim PFW 6880 Installation Guide Installation Guide Installationsanleitung, Guía de Instalacíon, Guida de Installazione, Installationsanleitung, Guía de Instalacíon, Guida de Installazione, Guide d’Installation, Installatie gids Guide d’Installation, Installatie gids Press and Release ™ Pop Out Slim v4.0...

  • Page 2: Included Components

    PFW 6880 Installation Guide Installationsanleitung, Guía de Instalacíon, Guida de Installazione, Guide d’Installation, Installatie gids Maximum Flat Panel Weight: Included Components 100 lb. / 45.35 kg. Wall Mount Bracket (Qty 1) (Qty 1 Pair) 5/16” Flat Washers Universal Spacers M5 Allen Driver...

  • Page 3: Wood Stud Installation

    PFW 6880 Installation Guide Installationsanleitung, Guía de Instalacíon, Guida de Installazione, Guide d’Installation, Installatie gids Wood Stud Installation Use a pencil to mark the upper right mounting location 1. Use a stud finder to determine the wall studs in of the wall stud.
  • Page 4 PFW 6880 Installation Guide Installationsanleitung, Guía de Instalacíon, Guida de Installazione, Guide d’Installation, Installatie gids 1. Level the mount Drill a pilot hole in each of the three (3) marks with a 2. Use a pencil to mark the remaining three (3) power drill and a M6 or 1/4”...

  • Page 5: Concrete Wall Installation

    PFW 6880 Installation Guide Installationsanleitung, Guía de Instalacíon, Guida de Installazione, Guide d’Installation, Installatie gids Concrete Wall Installation Two people recommended for this step; one person Drill a pilot hole in each of the four (4) mark areas to level the mount and another person to mark the with a 3/8”...
  • Page 6 PFW 6880 Installation Guide Installationsanleitung, Guía de Instalacíon, Guida de Installazione, Guide d’Installation, Installatie gids Installing OPTIONAL Model Specific Spacers Level For ease of installation Mount the PFW6880 to the desired location. Model-specific spacers are availible for most flat-panel Align and Level the spacer to the corner register tabs displays.

  • Page 7: Selecting The Mounting Hardware

    PFW 6880 Installation Guide Installationsanleitung, Guía de Instalacíon, Guida de Installazione, Guide d’Installation, Installatie gids Selecting the Mounting Hardware Insert a small straw or toothpick into the threaded inserts found on the back of the flat-panel. Use a pencil to mark the depth of the threaded insert on the small straw or toothpick.

  • Page 8: Universal Washer Installation

    PFW 6880 Installation Guide Installationsanleitung, Guía de Instalacíon, Guida de Installazione, Guide d’Installation, Installatie gids Universal Washer Installation Universal Washers are designed to accommodate the various M4, M5, M6 and M8 hole sizes required by flat-panels. Place the flat-panel screen-side down on a soft, flat surface.
  • Page 9 PFW 6880 Installation Guide Installationsanleitung, Guía de Instalacíon, Guida de Installazione, Guide d’Installation, Installatie gids Attaching the Flat-Panel to the Mount Mounting bracket adjustments are factory pre-set (see Note). This section requires two people. Do not release the flat-panel prematurely. The top and bottom...
  • Page 10 PFW 6880 Installation Guide Installationsanleitung, Guía de Instalacíon, Guida de Installazione, Guide d’Installation, Installatie gids MOVE INWARD Left Right Control Control MOVE OUTWARD Left Right Control Control TILT UP AND/ TILT DOWN AND/ www.vogels.com | Europe +31 (0)40 26 47 400 Page 10 www.vogels.com | Europe +31 (0)40 26 47 400...
  • Page 11 PFW 6880 Installation Guide Installationsanleitung, Guía de Instalacíon, Guida de Installazione, Guide d’Installation, Installatie gids LEVEL UP Left Right Control Control LEVEL LEVEL LEVEL DOWN Left Right Control Control LEVEL LEVEL ROTATE LEFT Left Right Control Control LEVEL LEVEL ROTATE RIGHT...
  • Page 12 PFW 6880 Installation Guide Installationsanleitung, Guía de Instalacíon, Guida de Installazione, Guide d’Installation, Installatie gids Use the GAPit GO/No Go Gauge (supplied with model specific spacer) as a final step in the process to inspect and adjust the gap to prevent costly replacement and extend the lifespan of the displays.

  • Page 13: Maintenance

    PFW 6880 Installation Guide Installationsanleitung, Guía de Instalacíon, Guida de Installazione, Guide d’Installation, Installatie gids Maintenance Single Latch Spring Lock Figure 1 1) Push evenly in the front of the PFW6880 to release the single latch spring lock (Figure 1).
