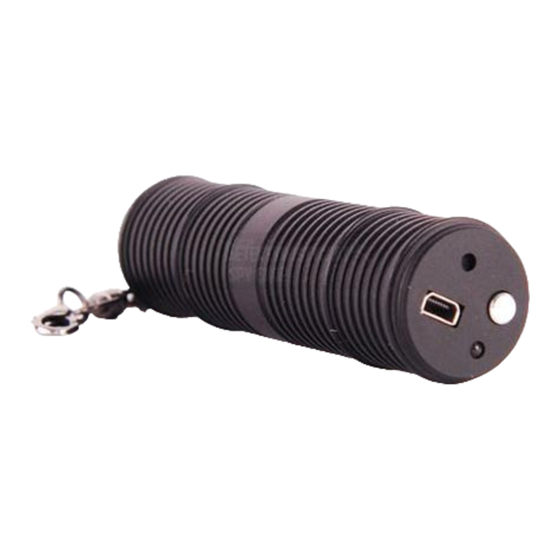

EDIC-mini TINY16
Model В26
19h/37h/75h/150h/300h/600h
Characteristics:
- Metallic case;
- Dimensions: d=20mm, h =75mm;
- Weight < 20g
(without rechargeable battery);
- Operating temperature range:
0...+40˚ C (32...+104˚F);
- Recording mode: mono;
- Battery life in record mode
(sampling rate 8 KHz, without compression):
360 hours;
- Battery life in record mode with VAS
(audio signals below threshold):
up to 2 months;
In stand-by mode: up to five years;
- Power supply: one CR123A battery.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for EDIC-mini TINY16 B26
Summary of Contents for EDIC-mini TINY16 B26
- Page 1 EDIC-mini TINY16 Model В26 19h/37h/75h/150h/300h/600h Characteristics: - Metallic case; - Dimensions: d=20mm, h =75mm; - Weight < 20g (without rechargeable battery); - Operating temperature range: 0…+40˚ C (32…+104˚F); - Recording mode: mono; - Battery life in record mode (sampling rate 8 KHz, without compression): 360 hours;...
- Page 2 In Box: - Recorder; - USB cable; - Software CD; - Instructions; - One CR123A battery. Light Emitting Diode Battery Compartment USB-micro connector Control button Microphone Figure 1: Edic-mini Tiny Model B26...
- Page 3 Inserting Battery Attention! Insert the battery as it is shown in the picture (“plus” to the front side of the recorder). Otherwise, the recorder could be harmed. Recorder Lid of the battery compartment Battery After you inserted the battery, keep the control button pressed for two seconds.
- Page 5 Attention! For recorder’s operating according to the manufacturer’s characteristics, use batteries of well known brands.
- Page 6 Turning Recording On/Off To start/stop recording, keep the button pressed for two seconds while the LED does not signal. When the recorder starts recording, the LED flashes five times. When the recorder stops recording, the LED flashes once. While recording, the sequences of LED flashes show the charge of the battery (the first sequence: 1 flash –...
- Page 7 Designed and manufactured by the Telesystems Ltd. The Manufactory Warranty Coupon The manufacturer undertakes warranty repair liabilities for 1 year from the date of purchase, but no longer than 2 years from the date of manufacture of the product (warranty does not cover batteries).
- Page 8 EM Tiny16 B26 Models: □ EM Tiny16 B26 - 19 h □ EM Tiny16 B26 - 37 h □ EM Tiny16 B26 - 75 h □ EM Tiny16 B26 - 150 h □ EM Tiny16 B26 - 300 h □...
