Summary of Contents for Promeba PS-155

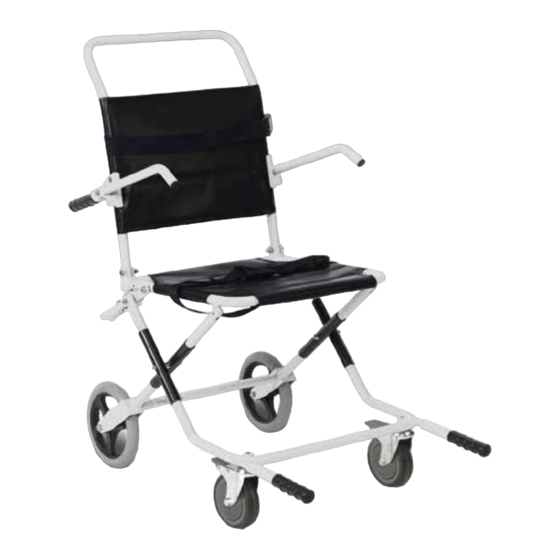

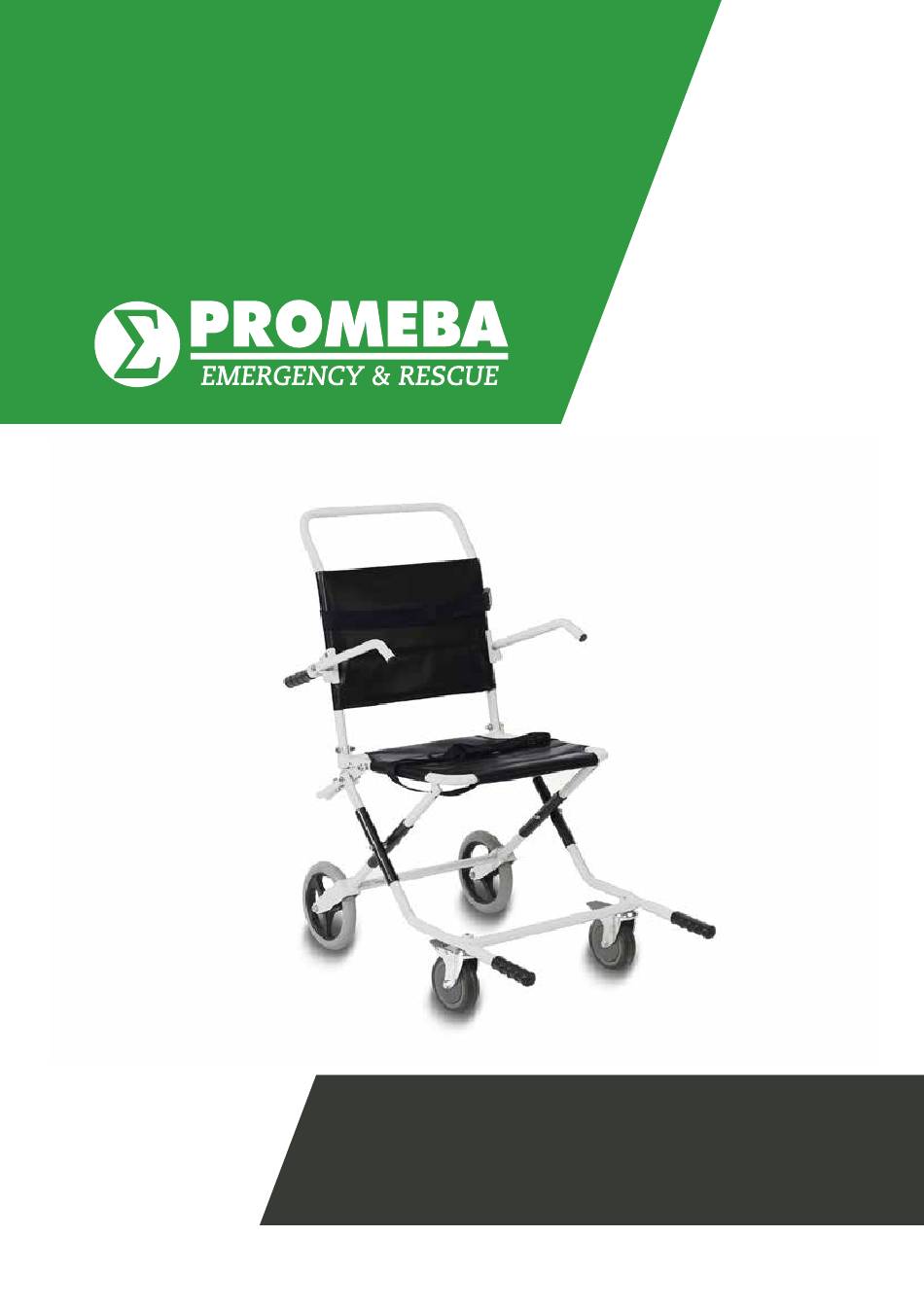

- Page 1 USER GUIDE EVACUATION CHAIR PS-155 Review 01/19...
- Page 3 General elements of evacuation chair PS-155 03.2 Folded the chair 03.3 Unfolded the chair MOUNTING AND COMPONENTS 04.1 General view CHAIR PS-155 04.2 Bill of materials of gerenal view PS-155 GENERAL MAINTENANCE LEGAL NOTICES PRODUCT WARRANTY MODEL PS-155 EVACUATION CHAIR...
-
Page 5: Using This Manual
USER MANUAL // EVACUATION CHAIR PS-155 Review 01/19 INTRODUCTION 01.1 Using this manual This manual provides using and maintenance instruc- tions of the product, as well as the way of fixing minor faults that could appear. It is recommended before the operation of the product to read carefully this manual in order to avoid damages caused by a misuse. - Page 6 USER MANUAL // EVACUATION CHAIR PS-155 Review 01/19 INTRODUCTION 01.2 Technical data sheet MEASURES AND FEATURES // FOLDED MEASURES AND FEATURES // UNFOLDED LENGHT 698 mm LENGHT 810 mm WIDTH 500 mm WIDTH 500 mm HEIGHT 950 mm HEIGHT 260 mm...
-
Page 7: Transport And Unpacking
USER MANUAL // EVACUATION CHAIR PS-155 Review 01/19 INSTALATION 02.1 Transport and unpacking First remove the packaging carefully so as not to dama- ge the outside of the stretcher. 1. Transport · Always fix the load, if it is necessary stack. you should follow the diagram shown. - Page 8 USER MANUAL // EVACUATION CHAIR PS-155 Review 01/19 OPERATING 03.1 General elements of CHAIR PS-155 Backrest Lock lever Footrest Safe lever...
- Page 9 USER MANUAL // EVACUATION CHAIR PS-155 Review 01/19 OPERATING 03.2 Folded the chair 03.3 Unfolded the chair Press the secure lever and pull up to Pull with your hand the backup and can take over the block of the right side of with the other hand separetes from the the chair.
- Page 10 USER MANUAL // EVACUATION CHAIR PS-155 Review 01/19 MOUNTING AND COMPONENTS 04.1 General view PS-155...
- Page 11 USER MANUAL // EVACUATION CHAIR PS-155 Review 01/19 MOUNTING AND COMPONENTS 04.2 Bill of materials GENERAL VIEW PS-155 NUM. ELEMENT CODE - DESCRIPTION UNITS 01.1 PS1540-02001 - Subconjunt Pota PoSterior 01.2 PS1540-01001 - Subconjunt Pota davantera 01.3 PS1500-00012 - Subconjunto marco aSiento 01.4...
-
Page 13: General Maintenance
USER MANUAL // EVACUATION CHAIR PS-155 Review 01/19 GENERAL MAINTENANCE CLEANING WEARING AREAS Keeping the equipment clean is essential to ensure Inspecting regularly to see if there is wear on the sys- good use and durability of the assembly. It is necessary... -
Page 14: Legal Notices
Periodic changes are made to the information contai- ned herein; These changes will be incorporated in new editions of the publication. Promeba, S.L. Reserves the right to make any changes or improvements to the products described in this pu- blication, if deemed appropriate. -
Page 15: Product Warranty
The only obligation on the part of Promeba, S.L. in b) Periodic maintenance and repair or replacement of connection with this warranty is to repair or replace... - Page 16 All rights reserved. Variations can be done whitout notice. Promeba, S.L. is to be considered not responsible for damages caused by the lack or the wrongness of the information here mentioned. PROMEBA, S.L. Ctra C-16 Km 59.5 · 08650 Sallent (Barcelona) · SPAIN T.
