FourStar 11223989 Assembly Instructions

MODEL: 11223989

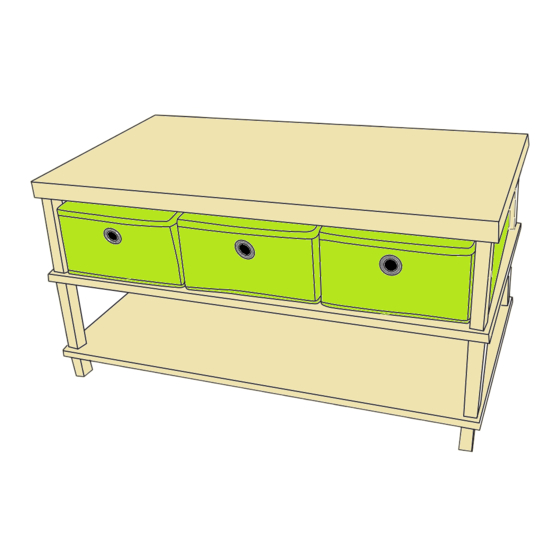

COFFEE TABLE WITH
STORAGE BINS
Do you have any questions? Missing small parts or hardware? If you need
assistance with the assembly of your TWO TIER END TABLE WITH
STORAGE BIN please e-mail our Customer Service Department at:
support@fourstari.com or call us at (800) 639-3803 or
(508)
473-7688 if calling locally from Massachusetts area
Please include the following information in your email:
• Where item was purchased • Item, model, style or SKU number listed on
instructions or box • Part number, description of the part and quantity needed
This information will help us get the proper part to you faster
STEP 1
PLACE THE TOP SHELF (A) SURFACE FACE DOWN ON A
SOFT CLOTH/BLANKET IN ORDER TO PROTECT SURFACE,
SCREW THE TOP SPINDLES (D) ON THE TOP SHELF.
ATTACH 1 SHELF (B) BY
USING MIDDLE SPINDLES (E).
AFTER THAT, ATTACH THE
OTHER SHELF (B) BY USING
FEET (F) AS SHOWN.
STEP 2
TURN OVER THE
FRAME, INSERT
BINS (C) IN WHICH
TIER YOU LIKE.
CAUTION :
1. ADULT SUPERVISION IS REQUIRED DUE TO SMALL
PARTS. CARE SHOULD BE TAKEN IN THE UNPACKING
AND ASSEMBLING OF THIS PRODUCT.
2. ASSEMBLE ON SOFT SURFACE TO PREVENT DAMAGE TO
THE PRODUCT FINISH.
3. MAKE SURE ALL PARTS ARE INCLUDED BEFORE
ASSEMBLING.
BEFORE YOU BEGIN, PLEASE READ ASSEMBLY
INSTRUCTIONS CAREFULLY. FOLLOW STEP BY STEP.
HARDWARE & PART LIST
NO
PARTS LIST
A
TOP SHELF
B
SHELF
C
BIN
D
TOP SPINDLE
E
MIDDLE SPINDLE
F
FOOT
THIS IS A TABLE. DO NOT SIT, STAND,
LEAN, WALK OR JUMP ON TABLE!
FAILURE TO COMPLY WITH THIS
CAUTION COULD RESULT IN PERSONAL
INJURY AND/OR PROPERTY DAMAGE!
5 lbs
Weight Maximum 70 LBS (31.8 kg)
CAUTION:
MAXIMUM LOADING
CAPACITY OF THIS TABLE IS 70 LBS.
40 LBS (18.1 kg)
15 lbs
QTY
1 PC
2 PCS
3 PCS
4 PCS
4 PCS
4 PCS
