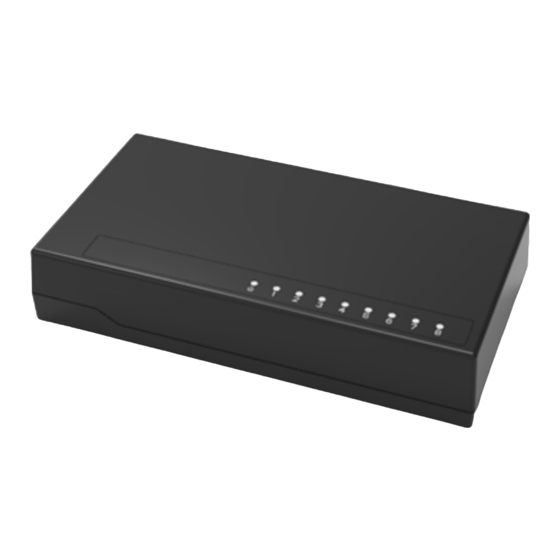

- Page 1 SW-UNM-8FE 8-Port Unmanaged Ethernet Switch User’s Manual --Ver: 1.01...
- Page 2 1 Package Contents Check the contents of your package for following parts: Fast Ethernet Switch x 1 User's Manual x 1 Power Adapter (5V 0.55A) x 1 If any of these are missing or damaged, please contact your dealer immediately, if possible, retain the carton including the original packing material, and use them against to repack the product in case there is a need to return it to us for repair.
- Page 3 Figure 1-1 switch front panel 4 LED Indicators Function Lit: Power on. Lit: indicate the link through that port is successfully established. LINK/ACT Blink: indicate that the Switch is actively sending or receiving data over that port. 5. Switch Rear Panel Figure 1-2 shows a rear panel of the switch.
- Page 4 B. Connect the power adapter to a standard wall outlet. When the Switch receives power, the Power LED should remain solid Green. - 3 -...
- Page 5 www.morrelltelecom.com sales@morrelltelecom.com morrelltelecom - 4 -...
