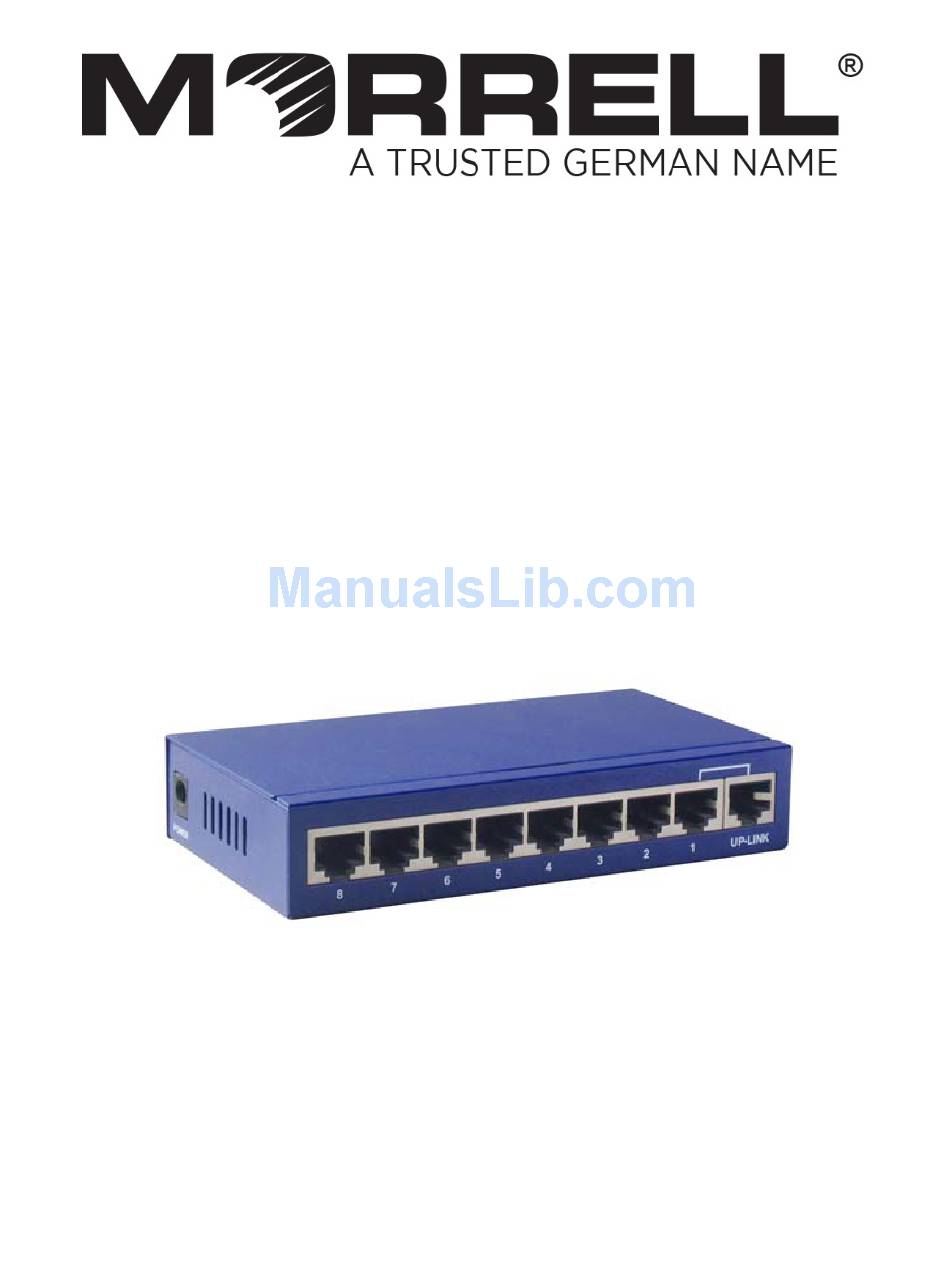

Page 1: User Manual
SW-UNM-9FE 8-Port 10/100Mbps + 1-Port 100Mbps Uplink Unmanaged Ethernet Switch User Manual Ver. 1.0... -
Page 2: Table Of Contents
Table of Contents Chapter 1 Product Introduction ..................... 3 1.1 Product Overview ......................3 1.2 Features ..........................3 1.3 Environments ........................3 Chapter 2 Installation ....................... 4 2.1 Installation method ......................4 2.2 Turn on the switch ......................4 2.3 Indicator LED ........................5 2.4 Network Connection ...................... -
Page 4: Chapter 1 Product Introduction
Congratulations on your purchasing of the switch . This switch provides a simple, economical, standard and high performance solution for you. Please read the entire user manual before using the product and save it for future reference. Chapter 1 Product Introduction 1.1 Product Overview The product is 8-port 10/100Mbps unmanaged Ethernet Switch provides the seamless network connection. -
Page 5: Chapter 2 Installation
Chapter 2 Installation Before installing the switch, make sure that the following the "packing list" listed OK. If any part is lost or damaged, please contact your local agent immediately. In addition, make sure that you have the tools install switches and cables by your hands. ... -
Page 6: Indicator Led
8-port 10/100M Switch back panel The uplink port is used for cascading between two switches. It shared the same channel with adjacent port. Consequently, if you use the uplink port, another adjacent normal port cannot be used for communicating with other devices. 2.3 Indicator LED Color Status... - Page 7 straight or crossed network cable.
-
Page 8: Chapter 3 Trouble Shooting
Chapter 3 Trouble Shooting The Switch can be easily monitored through panel indicators to assist you identify some problems. This section describes common problems you may encounter and where you can find possible solutions. 3.1 Indicators If Link indicator does not light up after making a connection, you may check whether network interface (e.g., a network adapter card on the attached device), network cable, or switch port is defective or not. -
Page 9: Appendix: Technical Specifications
Appendix: Technical Specifications Standards IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, 10BASE-T: UTP category 3,4,5 cable (maximum 100m) Network Media (Cable) 100BASE-T: UTP category 5 cable (maximum 100m) 8-10/100M Auto-Negotiation RJ45 port（Auto MDI/MDIX）, Number of Ports 1 Uplink Port Transfer Method Store-and-Forward Switching Capacity 1.6Gbps... - Page 10 www.morrelltelecom.com sales@morrelltelecom.com morrelltelecom...
