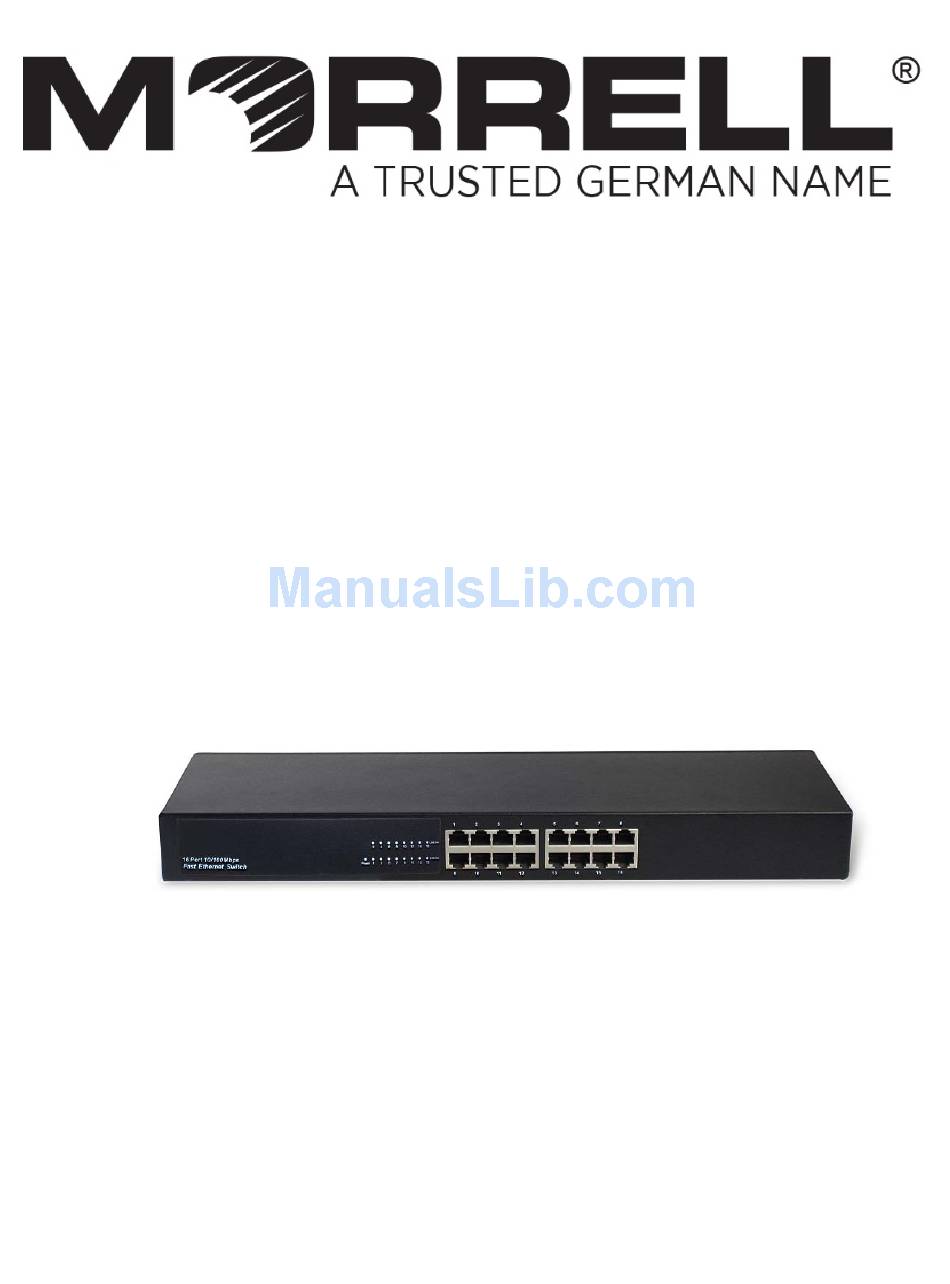

Page 1: User Manual
SW-UNM-16FE 16-Port 10/100Mbps Unmanaged Ethernet Switch User Manual Version1.1 | 2015/8/13... -
Page 2: Table Of Contents
Table of Contents Chapter 1 Product Introduction ....................3 1.1 Product Overview ....................... 3 1.2 Features ..........................3 1.3 Package Contents ........................ 3 Chapter 2 External Component Description ................4 2.1 Front Panel .......................... 4 2.2 Rear Panel ........................... 5 Chapter 3 Installing and Connecting the Switch ................ -
Page 4: Chapter 1 Product Introduction
Chapter 1 Product Introduction Congratulations on your purchasing of the 16 port 10/100Mbps Fast Ethernet Switch. Before you install and use this product, please read this manual carefully for full exploiting the functions of this product . 1.1 Product Overview The 10/100Mbps switch is the perfect way of integrating 10Mbps Ethernet and 100Mbps Fast Ethernet devices. -
Page 5: Chapter 2 External Component Description
Chapter 2 External Component Description 2.1 Front Panel The front panel of the Switch consists of 16 x 10/100Mbps RJ-45 ports and a series of LED indicators as shown as below. Figure 1 - Front Panel 10/100Mbps RJ-45 ports (1~16): Designed to connect to the device with a bandwidth of 10Mbps or 100Mbps. -
Page 6: Rear Panel
Power Off A device is connected to the port LINK/ACT 10/100Mbps: A device is disconnected to the port (1~16) green Flashing Sending or receiving data 2.2 Rear Panel The rear panel of the Switch contains AC power connector and one marker shown as below. -
Page 8: Chapter 3 Installing And Connecting The Switch
Chapter 3 Installing and Connecting the Switch This part describes how to install your Unmanaged Ethernet Switch and make connections to it. Please read the following topics and perform the procedures in the order being presented. 3.1 Installation Please follow the following instructions in avoid of incorrect installation causing device damage and security threat. -
Page 9: Rack-Mountable Installation In 19-Inch Cabinet
3.1.2 Rack-mountable Installation in 19-inch Cabinet The Switch can be mounted in an EIA standard-sized, 19-inch rack, which can be placed in a wiring closet with other equipment. To install the Switch, please follow these steps: attach the mounting brackets on the Switch’s side panels (one on each side) and secure them with the screws provided. -
Page 10: Connect Computer (Nic) To The Switch
ground connector to the grounding source on the outlet. AC Power Cord Connection: Connect the AC power connector in the back panel of the Switch to external receptacle with the included power cord, and check the power indicator is ON or not. When it is ON, it indicates the power connection is OK. - Page 11 Appendix: Technical Specifications Hardware Features Standards IEEE802.3,10Base-T,IEEE802.3u,100Base-TX 10Base-T: UTP category 3, 4, 5 cable (maximum 100m) Network Media (Cable) 100Base-Tx: UTP category 5, 5e cable (maximum 100m) 16 x 10/100Mbps Auto-Negotiation ports Number of Ports Power Power:green indicators Link/Act 10/100Mbps(1~16):green Transfer Method Store-and-Forward Backup Bandwidth...
- Page 12 10Mbps: 14880pps Frame Filtering and Forward Rate 100Mbps: 148800pps Operating Temperature: 0 ~40 Storage Temperature: -40 ~70 Environment Operating Humidity: 10%~90% non-condensing Storage humidity: 5%~90% non-condensing Input: 100-240V～50-60Hz 0.3A Power Supply/Consume Consume: 7 W（MAX）...
- Page 13 www.morrelltelecom.com sales@morrelltelecom.com morrelltelecom...
