Morrell SW-UNM-8FE1GC User Manual

8-port 10/100mbps + 1-port gigabit combo unmanaged ethernet switch

Advertisement

Quick Links

SW-UNM-8FE1GC
8-Port 10/100Mbps + 1-Port Gigabit Combo
Unmanaged Ethernet Switch

User Manual

Version 1.0 | 4/25/2015

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SW-UNM-8FE1GC and is the answer not in the manual?

Questions and answers

Summary of Contents for Morrell SW-UNM-8FE1GC

  • Page 1: User Manual

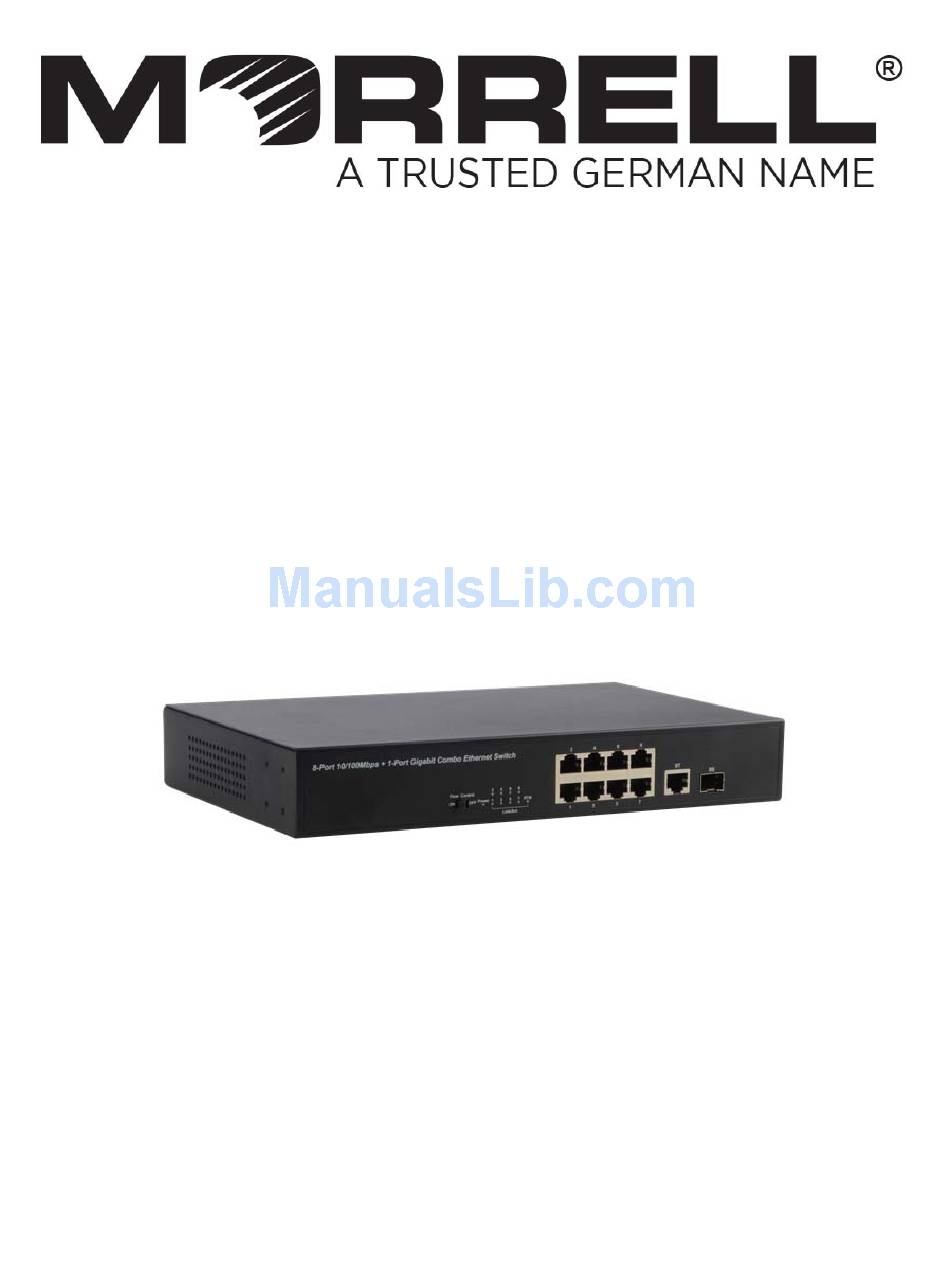

    SW-UNM-8FE1GC 8-Port 10/100Mbps + 1-Port Gigabit Combo Unmanaged Ethernet Switch User Manual Version 1.0 | 4/25/2015...
  • Page 2 Table of Contents Chapter 1 Product Introduction ....................2 1.1 Product Overview ......................2 1.2 Features ..........................2 1.3 Package Contents ......................2 Chapter 2 External Component Description ................ 3 2.1 Front Panel ........................3 2.2 Rear Panel ........................4 Chapter 3 Installing and Connecting the Switch ..............
  • Page 3: Chapter 1 Product Introduction

    Chapter 1 Product Introduction Congratulations on your purchasing of the 8-Port 10/100Mbps + 1-Port Gigabit Combo Ethernet Switch. Before you install and use this product, please read this manual carefully for full exploiting the functions of this product. 1.1 Product Overview This is a 8-Port 10/100Mbps + 1-Port Gigabit Combo Ethernet Switch, provides eight 10/100Mbps self-adaption RJ45 port, plus one alternative gigabit port --- one 10/100/1000Mbps RJ45 port and one 100/1000Mbps SFP optical port, it can be used to...
  • Page 4: Front Panel

    Chapter 2 External Component Description 2.1 Front Panel The front panel of the Switch consists of series of LED indicators, 8 10/100Mbps RJ-45 ports, 1 10/100/1000Mbps RJ45port, 1 100/1000Mbps SFP port and a flow control switch shown as below: Figure 1 - Front Panel Flow control switch: Designed to Open or close flow control function.
  • Page 5: Rear Panel

    The following chart shows the LED indicators of the Switch along with explanation of each indicator. STATUS STATUS DESCRIPTION Power On Power Power Off A device is connected to the port Link/Act (1~8) Flashing Sending or receiving data ( 9T/S) A device is disconnected to the port 2.2 Rear Panel The rear panel of the Switch contains AC power connector shown as below.
  • Page 6: Desktop Installation

    Chapter 3 Installing and Connecting the Switch This part describes how to install your Ethernet Switch and make connections to it. Please read the following topics and perform the procedures in the order being presented. 3.1 Installation Please follow the following instructions in avoid of incorrect installation causing device damage and security threat.
  • Page 7: Power On The Switch

    Figure 5 - Mounting Switch 3.1.3 Power on the Switch The Switch is powered on by the AC 100~240V 50/60Hz internal high-performance power supply. Please follow the next tips to connect: AC Electrical Outlet: It is recommended to use single-phase three-wire receptacle with neutral outlet or multifunctional computer professional receptacle.
  • Page 8: Specifications

    Appendix: Technical Specifications Specifications IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3x, Standards IEEE802.3az 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) Network Media (Cable) 100BASE-Tx: UTP category 5, 5e cable (maximum 100m) 1000BASE-T: UTP category 5e, 6 cable (maximum 100m) 8 x 10/100Mbps Auto-Negotiation ports Number of Ports 1 x 10/100/1000Mbps Auto-Negotiation port 1 x 100/1000Mbps SFP port...
  • Page 9 www.morrelltelecom.com sales@morrelltelecom.com morrelltelecom...
