Page 1: User Manual

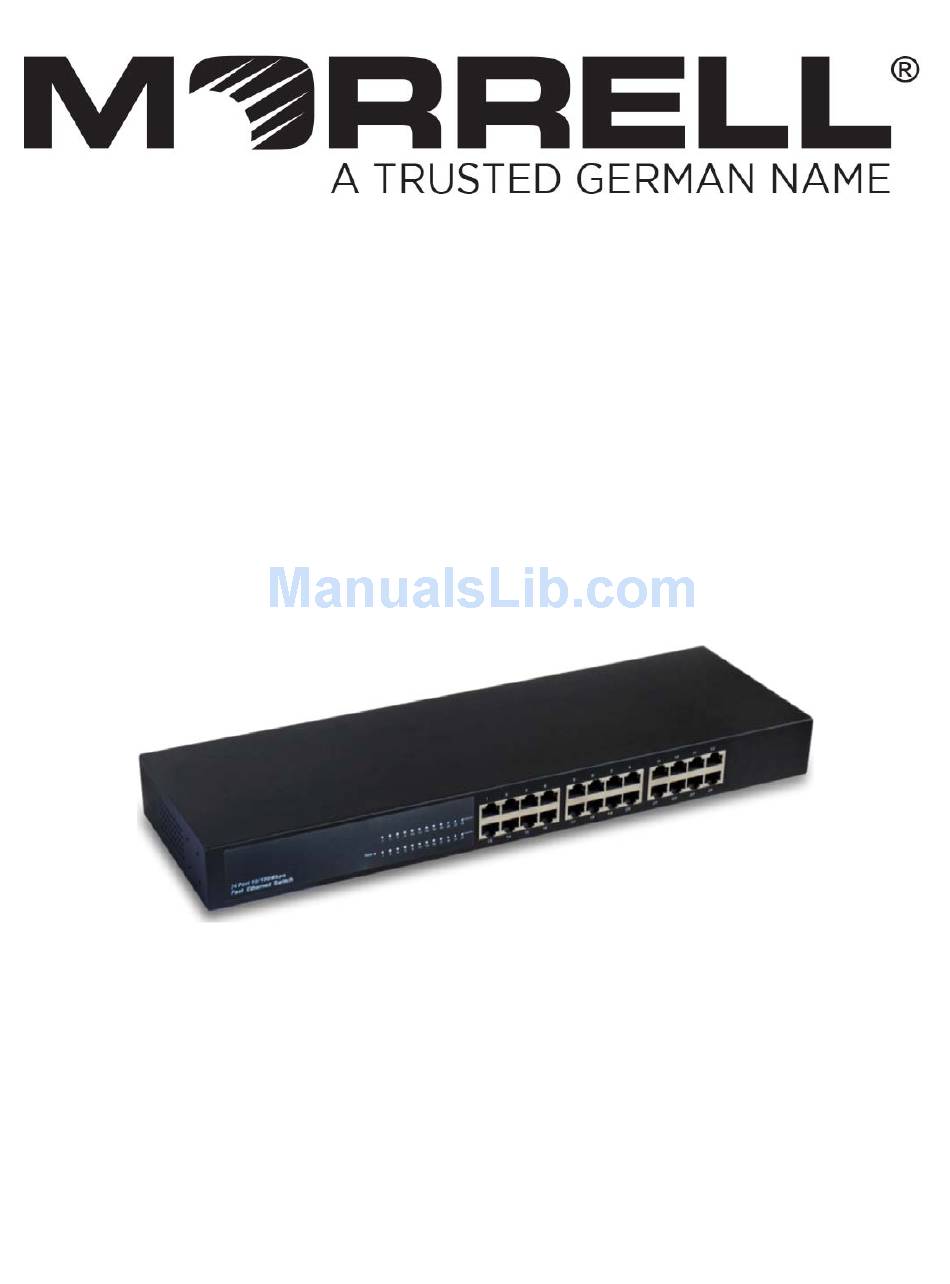

SW-UNM-24FE 24-Port 10/100Mbps Unmanaged Ethernet Switch User Manual Ver 1.0 | 12/28/2015... -
Page 2: Table Of Contents
Table of Contents Chapter 1 Product Introduction ................2 1.1 Product Overview ......................2 1.2 Features ..........................2 1.3 Package Contents ......................2 Chapter 2 External Component Description ............3 2.1 Front Panel ........................3 2.2 Rear Panel ........................4 Chapter 3 Installing and Connecting the Switch .......... -
Page 3: Chapter 1 Product Introduction
Chapter 1 Product Introduction Congratulations on your purchasing of the Ethernet Switch. Before you install and use this product, please read this manual carefully for full exploiting the functions of this product 1.1 Product Overview The 10/100Mbps Switch is the perfect way of integrating 10Mbps Ethernet and 100Mbps Fast Ethernet devices. -
Page 4: Chapter 2 External Component Description
Chapter 2 External Component Description 2.1 Front Panel The front panel of the Switch consists of series of LED indicators, 24 x 10/100Mbps RJ-45 ports shown as below: Figure 1 - Front Panel 10/100Mbps RJ-45 ports (1~24): Designed to connect to the device with a bandwidth of 10Mbps, 100Mbps. Each has a corresponding Link/Act LED. -
Page 5: Rear Panel
2.2 Rear Panel The rear panel of the Switch contains AC power connector shown as below: Figure 3 - Rear Panel AC Power Connector: Power is supplied through an external AC power adapter. It supports AC 100~240V, 50/60Hz. -
Page 6: Chapter 3 Installing And Connecting The Switch
Chapter 3 Installing and Connecting the Switch This part describes how to install your Ethernet Switch and make connections to it. Please read the following topics and perform the procedures in the order being presented. 3.1 Installation Please follow the following instructions in avoid of incorrect installation causing device damage and security threat. -
Page 7: Power On The Switch
Figure 5 - Attaching Brackets b. use the screws provided with the equipment rack to mount the Switch on the rack and tighten it. Figure 6 - Mounting Switch 3.1.3 Power on the Switch The Switch is powered on by the AC 100~240V 50/60Hz internal high-performance power supply. -
Page 8: Appendix: Technical Specifications
Appendix: Technical Specifications Specification Standards IEEE802.3 10Base-T, IEEE802.3u 100Base-TX 10Base-T: UTP category 3, 4, 5 cable (maximum 100m) Network Media (Cable) 100Base-Tx: UTP category 5, 5e cable (maximum 100m) Number of Ports 24 x 10/100Mbps Auto-Negotiation ports 10/100M Link/Act indicators Other Power Transfer Method... - Page 9 www.morrelltelecom.com sales@morrelltelecom.com morrelltelecom...
