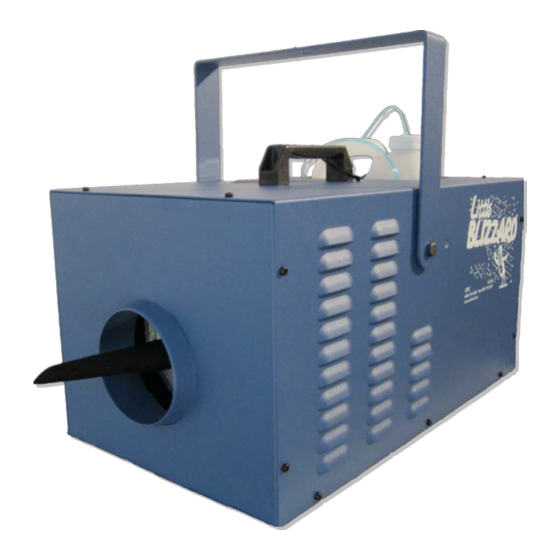

- Page 1 ® LITTLE BLIZZARD LITTLE BLIZZARD ® XT/SP Operating Instructions LBXT P/N 100255 (120 VAC) LBXT P/N 100257 (230 VAC) LBXT SP P/N 100252 (120 VAC) LBXT SP P/N 100254 (230 VAC...
- Page 2 And finally, we believe you will enjoy years of great snow effects if you care for and maintain your LITTLE BLIZZARD® XT. CITC 1420 80 St. sw #D Everett, WA 98203 (888) 786-CITC www.citcfx.com...
-
Page 3: Table Of Contents
Contents 1. Set of Equipment Supplied 2. Accessories 3. Description 4. Safety Instructions 5. Operating the LITTLE BLIZZARD® XT 5 Selecting the Location Hooking things up Selecting the Fluid Operating the machine Operating machine on DMX Shut Down Troubleshooting 6. Service and Maintenance 7. -
Page 4: Set Of Equipment Supplied
1. Set of Equipment Supplied 1 LITTLE BLIZZARD® XT w/DMX (w/5-pin XLR in/out) 1 Remote Controller w/5-pin XLR in/out 1 Bracket for hanging w/hardware Empty one-gallon bottle Instruction booklet and warranty card 1 Power Cord ... -
Page 5: Description
3. Description of the LITTLE BLIZZARD® XT The LITTLE BLIZZARD® XT is CITC’s most popular evaporating snow effect product. Insulated for quietness, you can have optional soundproofing in the SP (soundproof) model. The unit incorporates a volume control to adjust pump output and flake size, and also a two-speed fan control. -
Page 6: Operating The Little Blizzard® Xt
5. Operating the LITTLE BLIZZARD® XT Selecting the Location Operate this machine in a level position, being sure the fluid bottle is not going to be above the level of the machine. Un-level positions may cause siphoning or dripping. 5.2 Hooking things up Plug the 5-pin XLR of the Remote Control to the inlet marked “Remote Control”. -
Page 7: Selecting The Fluid
5.3 Selecting the fluid Fill the bottle with CITC’s Little Blizzard® Fluid, placing the tubing with the filter inside and at the bottom of the bottle. Use “Super Extra Dry” fluid for quickest evaporating snow, or for use over performance stages. “Extra Dry” is our most popular fluid, suitable for most indoor use. -
Page 8: Shut Down
Step 2). The DMX address is configured by adding the dip switch numbers together to total the number required. For example: Dip switch 1 + 6 = 33. Your DMX channel would be 33. (Dip switches are set by moving the switch to the right toward the “on” arrow.) Dip Switch Channel # When you move the slide control or digital control;... -
Page 9: Technical Data
Remote Control cable 25 ft (7.6 m) Sound LBXT DMX: 71–75 db LBXT Soundproof DMX: 60-65 db Fluid CITC LITTLE BLIZZARD® Fluid available in Basic, Dry, Extra-Dry, Super Extra-Dry, Dry 100 & Ultraviolet Fluid consumption 50 minutes/gallon at maximum volume; 80 minutes/gallon at... -
Page 10: Warranty Conditions
Our customer service department will respond to your problems immediately. Subject to the following conditions, CITC will repair any defect or fault in the unit if it is caused by a proven factory defect within one year of delivery to the end user. - Page 11 CITC. The right of limited warranty service is also lost if a fluid other than appropriate CITC fluid has been used or if units are sent in without first emptying the equipment of fluid.
