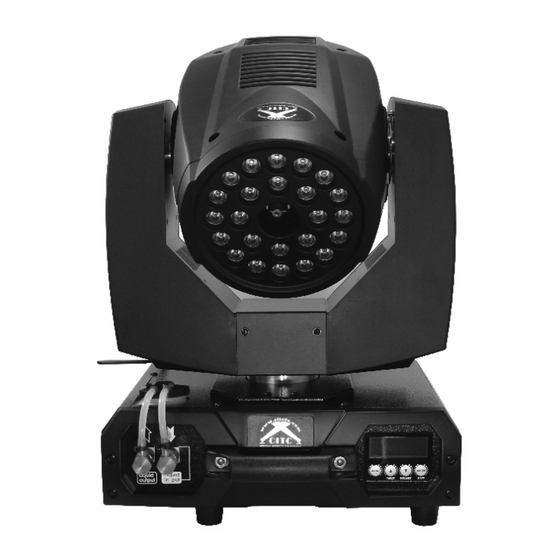

- Page 1 MANIAC II™ RGBA LED MOVING HEAD FOGGER Operating Instructions P/N 100123 (230 VAC w/DMX)
- Page 2 the manual carefully. We believe you will enjoy years of great service if you properly care for your new MANIAC II™ RGBA LED MOVING HEAD FOGGER CITC 1420 80th St. SW #D Everett, WA 98203 (888) 786-CITC www.citcfx.com...
-
Page 3: Table Of Contents
Contents 1. Equipment Supplied 2. Accessories 3. Description 4. Safety Instructions 4.1 Unpacking & Handling Precautions Operating the MANIAC II™ 5.1 Selecting The Location 5.2 Electrical Power Requirements 5.3 Hooking Things Up 5.4 Unlocking the X & Y Axis Locks 5.5 Operation 5.6 DMX Control 5.7 Wireless Remote... -
Page 4: Equipment Supplied
1 x Power Cord 1 x Operating Instructions Booklet 2. Accessories • CITC 15 Second SmartFog Fluid™ (Available in 1-Gallon or 5-Gallon Containers) • Custom Fluid Supplier #250060 • Maniac Multi-Function Controller #250145 • Allows Stand-alone use of Maniac or Maniac II •... -
Page 5: Description
For adult use only. Keep out of the reach of children. o Remove wooden block before using. Save block for future transport. o Use only CITC approved fogging fluid in this machine. o Always empty the fluid tank before transporting. -
Page 6: Unpacking & Handling Precautions
• Remove the fluid cap on the fluid tank in the base of the machine. Only fill until you reach the line marked MAX on the tank. Use only CITC approved fogging fluid. • LARGER FLUID CONNECTION: By using the supplied 42” tubing and adapters, it is possible to supply your MANIAC II™... - Page 7 Locate the fluid connections on the left front of the MANIAC II™ (see below). Carefully disconnect the 2 brass quick-connect fittings leading to Liquid Input and Liquid Output. Clip the black zip ties on the quick-connect fittings and detach the tubing leading to the on-board container.
- Page 8 1. LED Housing 2. Spray Nozzle 3. Fluid Tank 4. Fluid Input Connector 5. Fluid Outlet Connector 6. LCD Menu Display 7. 3-Pin DMX 8. 5-Pin DMX 9. Power Connector 10. Power Switch 11. Wireless Remote Antenna...
-
Page 9: Unlocking The X & Y Axis Locks
5.4 Unlocking the X and Y Axis Locks The MANIAC II™ is shipped with its X & Y Axis Locks engaged. YOU MUST UNLOCK THE X / Y LOCKS BEFORE TURNING ON OR YOU WILL CAUSE DAMAGE! Between the moving yoke and the stationary base of the machine you will see a small lever. Slide the lever to release the first lock. -
Page 10: Dmx Control
5.6 DMX Control • After the MANIAC II™ is receiving a DMX signal via its 3-pin or 5-pin panel, the LCD screen will only display the DMX-512 address settings page. You can adjust the DMX address by pressing the UP or DOWN buttons. The DMX channel that you pick will use that channel and the nine following channels to control the MANIAC II™. -
Page 11: Wireless Remote
5.7 Wireless Remote • The included wireless remote has already been synced to work with your new MANIAC II™. If you need to reprogram your wireless remote you must go to the LCD menu display and scroll to the REMOTE SETUP page. Make sure it is displaying the word “ON”. -
Page 12: Hanging/Floor Operation
5.9 Hanging / Floor Operation • To switch from floor operation to hanging operation, disconnect the 2 brass quick-connect fittings from the Fluid Input and Fluid Output. • Open side tank door and slide tank out of the inner chamber located in the base of the machine. -
Page 13: Technical Data
About 5 minutes DMX Channels LED Lamps 5W x 24 (6 each R, G, B, A) Fluid Type CITC SmartFog Fluid Fluid Capacity 1.31 qt. (1.2L) 540° - Full rotation takes approximately 2 seconds Tilt 270° - Complete tilt range in about ¾ second... -
Page 14: Limited Warranty Conditions
Our customer service department will respond to your problems immediately. Subject to the following conditions, CITC will repair any defect or fault in the unit if it is caused by a proven factory defect within one year of delivery to the end user. - Page 15 CITC. The right of limited warranty service is also lost if a fluid other than appropriate CITC fluid has been used or if units are sent in without first emptying the equipment of fluid.
