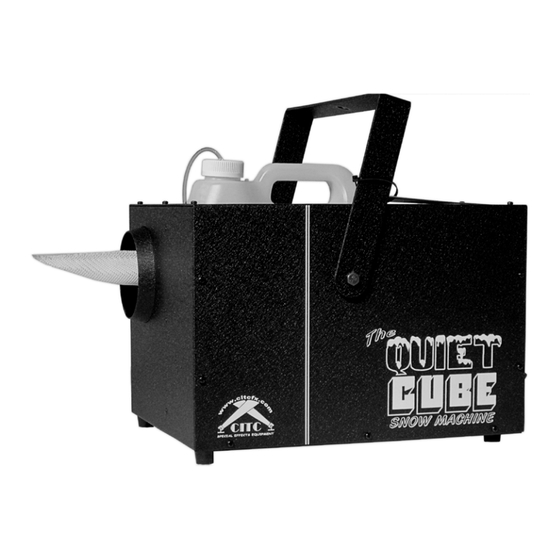

- Page 1 QUIET CUBE™ w/DMX Snow Machine Operating Instructions QUIET CUBE P/N 100258 (120 VAC) QUIET CUBE P/N 100259 (230 VAC)
- Page 2 And finally, we believe you will enjoy years of great snow effects if you care for and maintain your Quiet Cube™ Snow Machine. CITC 1420 80 St. SW #D Everett, WA 98203 (888) 786-CITC www.citcfx.com...
-
Page 3: Table Of Contents
Contents 1. Set of Equipment Supplied 2. Accessories 3. Description 4. Safety Instructions 5. Operating the Quiet Cube™ 5.1 Selecting the Location 5.2 Hooking things up 5.3 Selecting the Fluid 5.4 Operating the machine 5.5 Operating machine on DMX 5.6 Shut Down 5.7 Troubleshooting 6. -
Page 4: Set Of Equipment Supplied
1. Set of Equipment Supplied • 1 Quiet Cube™ Snow Machine w/DMX (w/5-pin XLR in/out) • 1 Remote Controller w/5-pin XLR in/out • 1 Bracket for hanging w/hardware • Empty one-gallon bottle • Instruction booklet and warranty card • 1 Power Cord •... -
Page 5: Description
3. Description of the Quiet Cube™ Snow Machine The Quiet Cube™ Snow Machine is CITC’s newest evaporating snow effect product. Insulated for quietness, utilizing our most advanced design, this is our quietest snow machine ever. It also uses a fraction of the power required for other snow machines. The unit incorporates a volume control to adjust pump output and flake size. -
Page 6: Operating The Quiet Cube
5. Operating the Quiet Cube™ Snow Machine Selecting the Location Operate this machine in a level position, being sure the fluid bottle is not going to be above the level of the machine. Un-level positions may cause siphoning or dripping. 5.2 Hooking things up Plug the 5-pin XLR of the Remote Control to the inlet marked “Remote Control”. -
Page 7: Selecting The Fluid
5.3 Selecting the fluid Fill the bottle with CITC’s Little Blizzard® Fluid, placing the tubing with the filter inside and at the bottom of the bottle. Use “Super Extra Dry” fluid for quickest evaporating snow, or for use over performance stages. “Extra Dry” is our most popular fluid, suitable for most indoor use. -
Page 8: Shut Down
Dip Switch Channel # When you move the slide control or digital control; 0 – 15% = Standby (volume output off) 40 – 100% = Volume Control The blower starts above 15% and snow starts above 40%. Adjustment of the snow is from 40% to 80% for best results. -
Page 9: Technical Data
On/off and volume control 0-100% Remote Control cable 25 ft (7.6 m) Sound 61–65 db Fluid CITC LITTLE BLIZZARD® Fluid available in Dry, Extra-Dry, Super Extra-Dry, Dry 100 & Ultraviolet Run Time Continuous Electrical Supply 120 VAC, 4 amps, 60 hz... -
Page 10: Warranty Conditions
Our customer service department will respond to your problems immediately. Subject to the following conditions, CITC will repair any defect or fault in the unit if it is caused by a proven factory defect within one year of delivery to the end user. - Page 11 CITC. The right of limited warranty service is also lost if a fluid other than appropriate CITC fluid has been used or if units are sent in without first emptying the equipment of fluid.
