- Page 1 iRenew™ Pain Relief & Recovery TENS + EMS System Model # ET-7070 Instruction Manual...
-
Page 2: Indications
For symptomatic relief and management of chronic, intractable pain, and relief of pain associated with arthritis. (Choose TENS program P8) • For use by healthy adults for the stimulation of healthy muscles to improve or facilitate muscle performance. (Choose EMS programs P1 through P6) www.iReliev.com... -
Page 3: Table Of Contents
Selecting the Intensity Level..….……………………………………..........................................14 SPECIAL FEATURES…………………………………………………..................................................15 ELECTRODE PAD PLACEMENTS....................................................16-17 TENS PROGRAMS…………………………………………………..................................................18 EMS PROGRAMS…………………………………………………..................................................... 19 CARE AND MAINTENANCE…………………………………………………............................................... 20 TROUBLESHOOTING.………..……………………………………………….…..............................................21 TECHNICAL SPECIFICATIONS……………………………………………………........................................... 22-24 INFORMATION ABOUT ELECTROMAGNETIC COMPATIBILITY..………................................25-28 FCC INFORMATION..………………………………………………………………..............................................29 WARRANTY…………………………………………........................................................30 REGISTER YOUR DEVICE........................................................32 REGISTRATION CARD…..………………......................................................33 www.iReliev.com... -
Page 4: Contraindications, Warnings, And Precautions
The irritation can usually be reduced by using an alternate conductive medium, or alternate pad placement. • Electrode placement and stimulation settings should be based on the guidance of the prescribing practitioner. • Powered muscle stimulators should be kept out of the reach of children. www.iReliev.com... - Page 5 Do not apply stimulation in the presence of electronic monitoring equipment (e.g., cardiac monitors, ECG alarms), which may not operate properly when the electrical stimulation device is in use. • Do not apply stimulation when in the bath or shower. www.iReliev.com...
- Page 6 You may experience skin irritation or hypersensitivity due to the electrical stimulation or electrical conductive medium (gel). • If you have suspected or diagnosed heart disease, you should follow precautions recommended by your physician. • If you have suspected or diagnosed epilepsy, you should follow precautions recommended by your physician. www.iReliev.com...
- Page 7 You may experience headaches and other painful sensations during or following the application of electric stimulation near your eyes and to your head and face. • You should stop using the device and should consult with your physician if you experience adverse reactions from the device. www.iReliev.com...
-
Page 8: What's Included
™ TENS + EMS Device (1) 2. Belt Clip & Holster (1) 3. 3.5” x 5” XL Electrode Pads (2) 4. 2” x 2” Electrode Pads (4) 5. AAA Batteries (3) 6. Lead Wires (2) 7. Tote Bag (1) www.iReliev.com... -
Page 9: Device Features

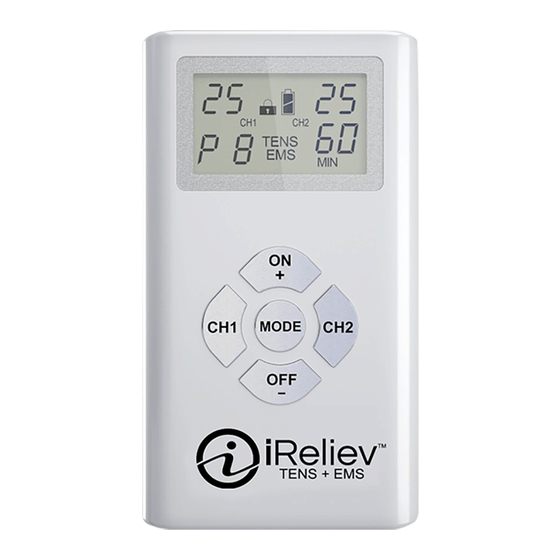

Power ON/Increase Key CH1 (Channel 1) Key CH2 (Channel 2) Key Mode (Setting Select/Set) CH1 Intensity Level CH2 Intensity Level Lock Status Indicator Battery Status Indicator 10 Therapy Program: TENS (P1-P8) EMS (P1-P6) 11 Treatment Minutes 12 Therapy Mode www.iReliev.com... -
Page 10: Step By Step Operation Guide For Treatment
3. Trim excess body hair from the area with scissors (do not shave). 4. If desired, apply iReliev® Conductive Gel or Conductive Spray to help increase conductivity. This may also reduce the chance of skin irritation and may extend the life of the electrode pads. -
Page 11: Installing Batteries
In the event you only want to run one channel, please insert the lead wire into channel 1 (Upper left-hand side). Note: The device will auto-reset by default to “0” Intensity Level on the respective channel if the lead wire is not fully inserted. www.iReliev.com... -
Page 12: Connecting Electrode Pads To Lead Wires
Note: Pads are for single person use. Never share the pads with another person. Note: Do not use pads after expiration date. Note: Do not place pad(s) on your body where it cannot be reached by your own hand. www.iReliev.com... -
Page 13: Turning On & Off The Device
Note: Time will countdown on the display in 1-minute increments for the duration of your session. STEP 9 - Select TENS or EMS Mode The TENS or EMS Mode will now be flashing. To select TENS or EMS, press the “ON/+” button for TENS or the “OFF/-” button for EMS, then press “MODE”. www.iReliev.com... -
Page 14: Selecting The Therapy Program (Tens P1-P8 Or Ems P1-P6)
Note: Always start with the lowest intensity gradually increasing until you feel a “tingling sensation”. Never increase the intensity to a level that causes additional pain. Stay under the point of discomfort. Start with short sessions of 5-10 min- utes until you are comfortable with the stimulation. www.iReliev.com... -
Page 15: Special Features
Automatic shut off: The device turns off automatically when the therapy time has elapsed or when no button is pressed for 60 seconds. • Memory: The last treatment program will be stored and appear on the display when you turn on the device. www.iReliev.com... -
Page 16: Electrode Pad Placements
Small Electrode Pad Placement Ankle Calves Elbow Feet Quad Lower Back Knee Shoulder Upper Arm Wrist Upper Back www.iReliev.com... - Page 17 Large Electrode Pad Placement Calves Lower Back Knee Shoulder Upper Arm Upper Back For more electrode pad placement information visit https://iReliev.com/electrode-placements/ www.iReliev.com...
-
Page 18: Tens Programs
For symptomatic relief and man- Variable comfortable tingling and pulsing sensation (sensation should agement of chronic, intractable appear to come in waves). Pain should ease and there should be relief after pain, and relief of pain associated treatment. with arthritis. www.iReliev.com... -
Page 19: Ems Programs
It may help improve their anaerobic separated by longer relaxation phases. Increase the Strengthening capacity and may help improve muscle strength. stimulation intensity until you get a strong and deep contraction. Do not exceed your comfort level; 20 min/ duration. www.iReliev.com... -
Page 20: Care And Maintenance
Note: Electrode pads are for single person use only. If you have questions about the integrity of the electrode pads or if you want to order new electrode pads, please order online at www.iReliev.com or call us at 855-723-2582. www.iReliev.com... -
Page 21: Troubleshooting
• Switch the device to the OFF position and then • Treatment time power ON. expired. The device doesn’t turn on • Contact ExcelHealth at 855-723-2582 or visit us at even though new batteries www.iReliev.com. We want your iReliev experience to be are installed. great. www.iReliev.com... -
Page 22: Technical Specifications
Essential Performance: The stimulation output as defined in the following specification table for TENS & EMS. TENS Programs : Program Pulse width(uS) Frequency(Hz) Function Mode Constant Burst Constant 260~156 2~60 Modulation 260~156 Modulation 7~60 Modulation 260~156 Modulation 2.45~245 Cycle www.iReliev.com... - Page 23 Operating Conditions: +50°F (10°C) to +104°F (40°C), 40-90% max. Relative humidity Transport and Storage Conditions: +14°F (-10°C) to +140° (60°C), 30-95% max. Relative humidity Operation Altitude: 3000m. Operating Atmospheric Pressure Range: 700~1013 hPa Transport and Storage Atmospheric Pressure Range: 500~1060 hPa www.iReliev.com...
- Page 24 This symbol means “type BF equipment”; this device offers protection against electrical shock by standard compliance to leakage currents of electrode pad. There is a label on the package explained as: This symbol means “use before”, represented as “YYYY-MM” (for year and month). www.iReliev.com...
-
Page 25: Information About Electromagnetic Compatibility
The customer or the user of the system can help prevent electromagnetic interference by maintaining a minimum distance between portable and mobile RF communications equipment (transmitters) and the iRenew™ Pain Relief & Recovery Sys- tem as recommended below, according to the maximum output power of the communications equipment. www.iReliev.com... - Page 26 Radiated RF IEC 3 V/m 3 V/m separation distance calculated from the equation 61000-4-3 80 MHz to 2.5 GHz applicable to the frequency of the transmitter. Interference may occur in the vicinity of equipment marked with the following symbol: www.iReliev.com...
- Page 27 70 % U (30 % dip in U ) for 70 % U (30 % dip in U ) for powered from an uninterruptible power supply or a 25 cycles 25 cycles battery. <5 % U <5 % U www.iReliev.com...
- Page 28 The iRenew™ Pain Relief & Recovery System is suitable for use in all establishments, including domestic establishments and Harmonic emissions those directly connected to the public low-voltage power supply IEC 61000-3-2 Class C network that supplies buildings used for domestic purposes. Voltage fluctuations/Flicker Complies emissions IEC 61000-3-3 www.iReliev.com...
-
Page 29: Fcc Information
Important Note: To comply with the FCC RF exposure compliance requirements, no change to the antenna or the device is permitted. Any change to the antenna or the device could result in the device exceeding the RF exposure requirements and void user’s authority to operate the device. www.iReliev.com... -
Page 30: Warranty
WARRANTY This iRenew™ Pain Relief & Recovery System carries a one-year warranty from the date of purchase. Extended warranties are provided with device registration at iReliev.com/registration. The warranty applies to the main device and necessary parts and labor. Consumable items like lead wires, electrode pads, and other accessories are guaranteed to be free from defects in workmanship and materials at the time of delivery. - Page 31 THANK YOU FOR PURCHASING Your new iReliev ® product is one of the best in the industry, and in many ways, leads the industry, particularly in the warranty coverage and customer satisfaction. Customer satisfaction is a key factor in every iReliev ® transaction.
-
Page 32: Register Your Device
REGISTER YOUR DEVICE Please go to https://www.iReliev.com/register to register your iRenew™ Pain Relief & Recovery System, model # ET-7070, within 14 days of purchase to receive free gifts and discounts. Enter the serial number on the warranty registration form. The serial number may be found on the underside of the device or retail box. -
Page 33: Registration Card
www.iReliev.com... - Page 34 www.iReliev.com...
- Page 35 www.iReliev.com...
- Page 36 ExcelHealth Inc. www.iReliev.com 1603 Hart Street Southlake, TX 76092 If you have any questions whatsoever regarding your iRenew™ Pain Relief & Recovery System Model # ET-7070, contact your reseller or ExcelHealth Inc. at: 855-723-2582 or visit www.iReliev.com...
