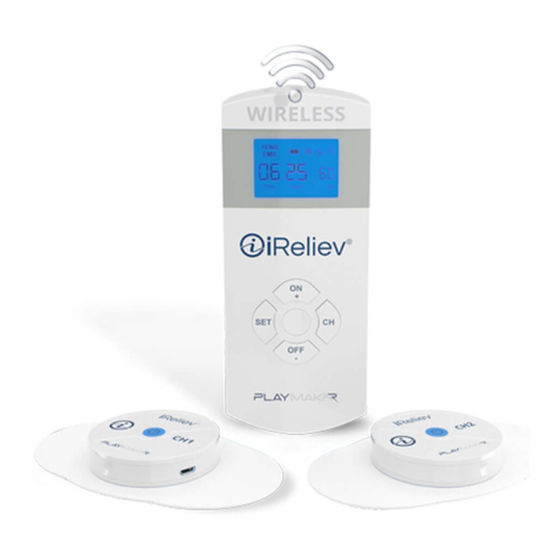

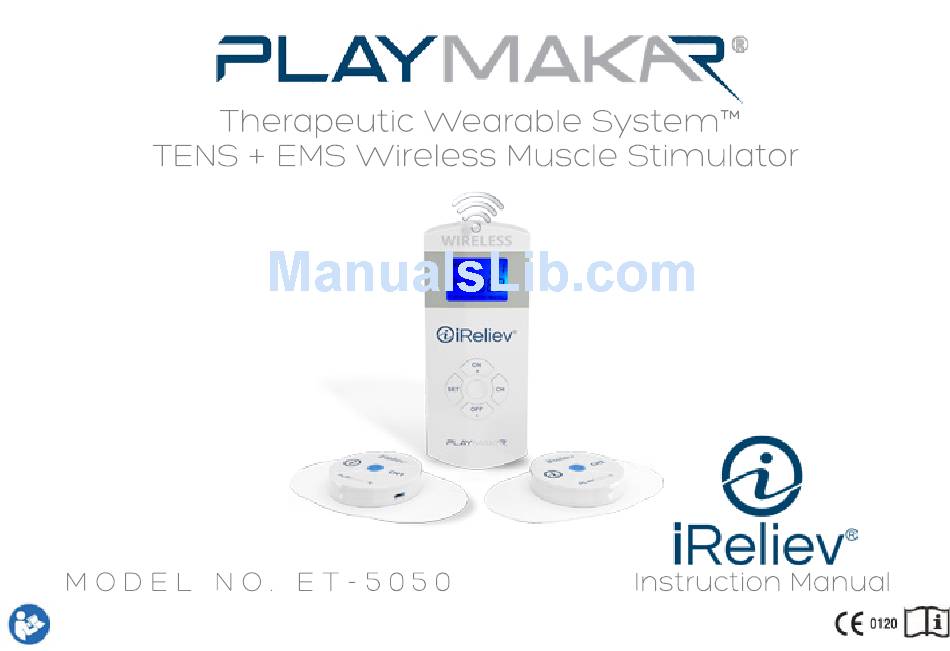

iReliev PlayMakar Therapeutic Wearable System ET-5050 Instruction Manual
Tens + ems wireless muscle stimulator
Hide thumbs
Also See for PlayMakar Therapeutic Wearable System ET-5050:
- Instruction manual (44 pages) ,
- Instruction manual (40 pages)
Related Manuals for iReliev PlayMakar Therapeutic Wearable System ET-5050
Summary of Contents for iReliev PlayMakar Therapeutic Wearable System ET-5050
- Page 21 Indicator Description Remote Features: Power OFF/Adjust/Decrease Key Navigation Key/Program Set Power ON/Adjust/Increase Key Program Mode Therapy Type (TENS or EMS) Battery Status/Wireless Connection Indicator Channel Indicator Therapy Minutes Remaining Intensity Level Channel Key 1. LED backlight will display for 10 seconds upon turning on. 2.
- Page 22 How to Select TENS + EMS Mode and Programs 1. Turn on respective receiver pod. 2. On remote, press SET button; the preset (default) therapy mode TENS/EMS will flash on the display. 3. Use the ON/+ or OFF/– button to change the therapy mode. 4.
- Page 23 Program/Mode Benefits You should feel -for temporary relief of pain Continuous comfortable tingling. The underlying pain should associated with sore and/or decrease gradually after treatment. aching muscles in the lower back Comfortable pulsing sensation. The underlying pain should due to strain from exercise or decrease almost immediately.
- Page 24 Program/Mode You Should Feel & Benefits Suggestion This program gently warms up the muscles prior Increase intensity level until you get a strong but Exercise Prep to exercise; it feels like a rhythmic massage. comfortable muscle movement; 10 min/duration. This program produces muscle twitches at a very Use it after intense exercise to promote recovery Muscle low frequency and it feels like a tapping massage;...
- Page 28 If this happens… Try this solution… Receiver pod cannot be set Ensure receiver pod has been fully charged & turned on. Press CH on remote to find respective channel. Customize settings. The remote is not turning on or Press and hold ON button for 3 seconds. Ensure that the remote is fully I cannot see anything on the charged and is unplugged from charging cable.
- Page 29 Program Pulse width(uS) Frequency(Hz) Function Mode Constant Burst Constant 260~156 2~60 Modulation 260~156 Modulation 7~60 Modulation 260~156 Modulation 2.45~245 Cycle...
- Page 30 EMS Programs: Programs Pulse Width Pulse Rte Ramp up On Time Ramp down Off Time (uS) (Hz) (sec) (sec) (sec) (sec) 40~99 4~20...
- Page 32 Wireless Protocol Characteristics Frequency band 2.4GHz ISM Protocol type Proprietary frequency Channel Channel width 1MHz Frequency modulation GFSK Frequency deviation ±50KHz EIRP Measured max. -4.9 dBM (0dBM configured as maximum output power) Effective emission power 0dBm Data rate 1Mbps Quality of service requirement 9.8 feet range between remote and receiver pod.
- Page 33 -If the PlayMakar Therapeutic Wearable System™'s RF channel is interfered by emission from other devices, fail-safe outcome is that iReliev's remote control will not operate, and/or reset the intensity Interference from other devices level to “0”; the receiver pods will stop stimulation.
- Page 34 Table 1 Recommended separation distances between portable and mobile RF communications equipment and the ME equipment ® The PlayMakar Therapeutic Wearable System™ is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of the system can help prevent electromagnetic interference by maintaining a minimum distance between portable and mobile RF ®...
- Page 35 Separation distance according to frequency of transmitter m Rated maximum output 150 kHz to 80 MHz 80 MHz to 800 MHz 800 MHz to 2.5 GHz power of transmitter W d= 0.6 d= 0.35 d= 0.7 0.01 0.06 0.04 0.07 0.19 0.11 0.22...
- Page 36 Table 3 Declaration – electromagnetic immunity ® The PlayMakar Therapeutic Wearable System™ is intended for use in the electromagnetic environment specified below. The customer or the user should assure that it is used in such an environment. Immunity test IEC 60601 test level Compliance level Electromagnetic environment guidance Electrostatic...
- Page 37 Power frequen- Power frequency magnetic fields cy (50/60 Hz) 3 A/m 30 A/m should be at levels characteristic of a magnetic field typical location in a typical commercial IEC 61000-4-8 or hospital environment. The magnetic field from common appliances are not expected to affect the device.
