iReliev ET-7070 Instructions And Operating Manual

Strength & recovery system dual channel tens + ems

Hide thumbs Also See for ET-7070:

Instruction & operation manual (25 pages)

Instruction manual (38 pages)

Instruction manual (36 pages)

Table Of Contents

Table of Contents

Quick Links

Need help?

Do you have a question about the ET-7070 and is the answer not in the manual?

Questions and answers

Mary

January 30, 2025

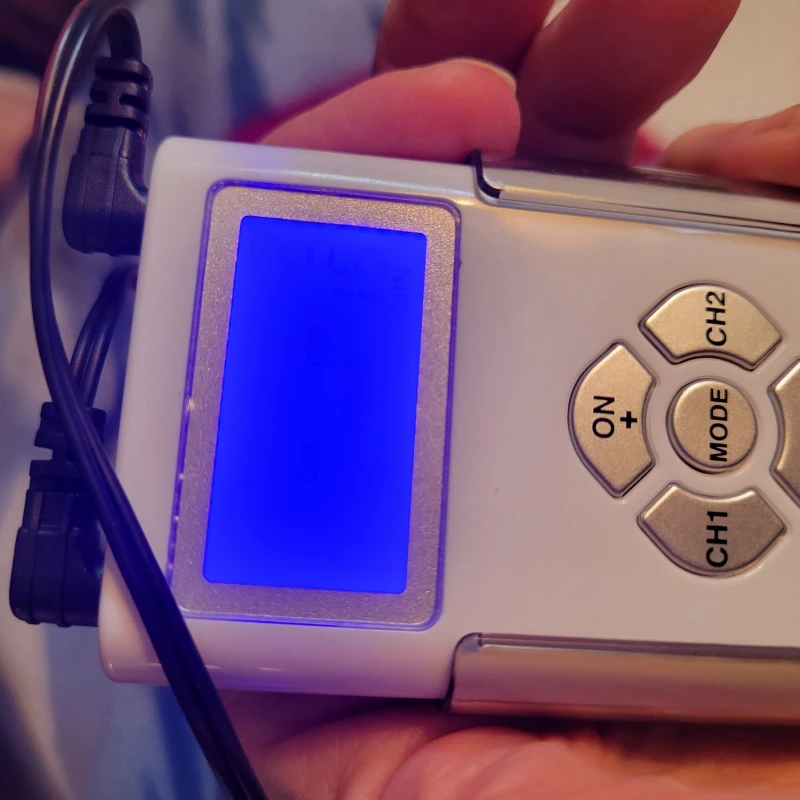

My unit will not go up on the channels past 2 and then zeros out!

1 comments:

Mr. Anderson

May 14, 2025

If your iReliev ET-7070 unit will not go up on the channels past 2 and then resets to zero, check that the lead wires are fully inserted into the channel sockets. The device will auto-reset the intensity level to “0” if the lead wire is not fully inserted. Fully insert the lead wires to ensure proper operation.

This answer is automatically generated

Lala

June 17, 2025

channel socket size for ET 7070

Summary of Contents for iReliev ET-7070

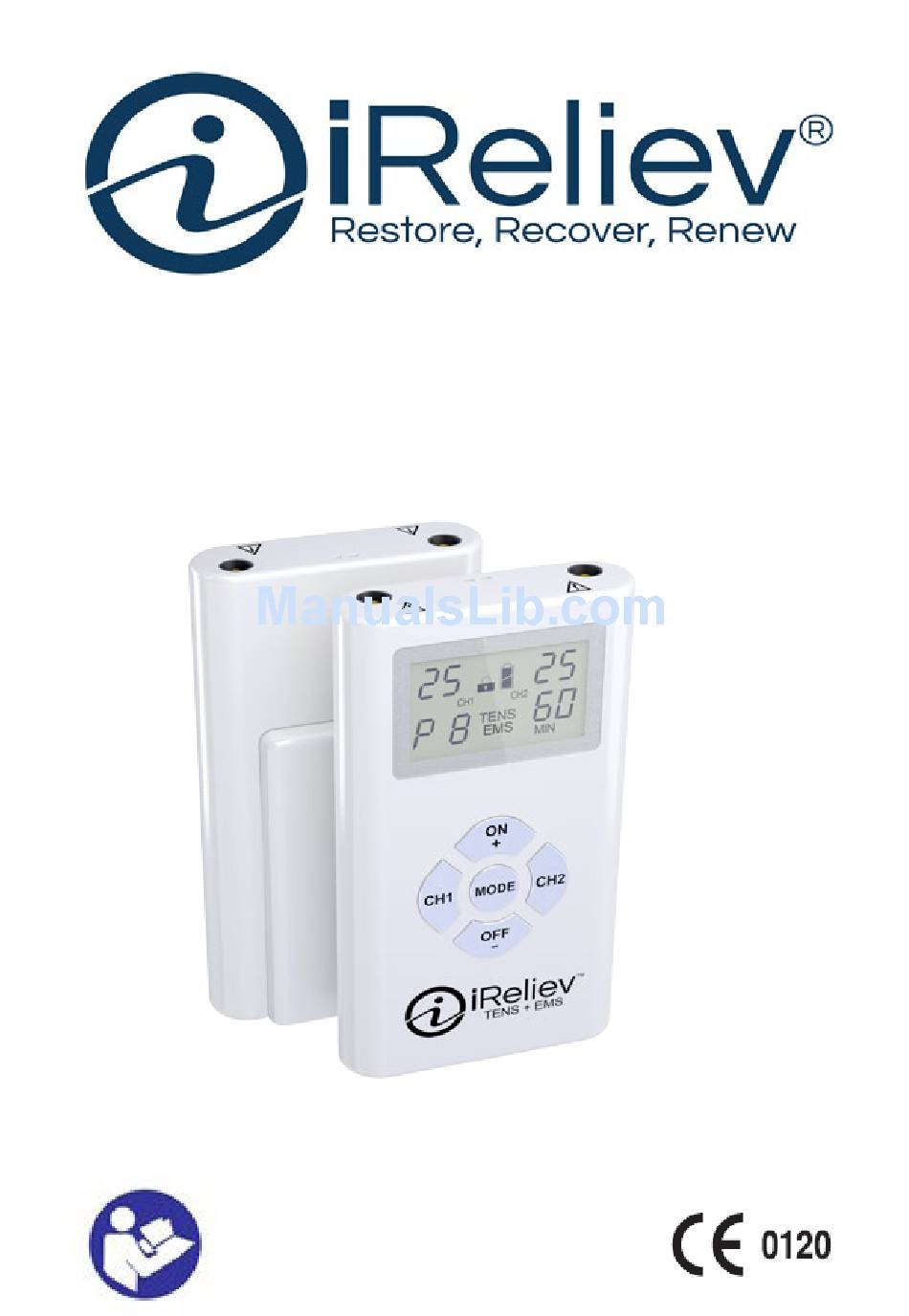

Page 1 Strength & Recovery System Dual Channel TENS + EMS Model # ET-7070 Instruction and Operating Manual Read Before Using www.iReliev.com...
Page 2: Table Of Contents
Table of Contents INDICATIONS FOR USE........... SYSTEM INCLUDES..……..……………………..... 4-11 SAFETY INSTRUCTIONS..........WARNINGS & PRECAUTIONS......... STEP BY STEP SETUP GUIDE Install Batteries............ Connecting Lead Wires ……..….…..... Connecting Electrode Pad to Lead Wires…..Remove Electrode Pads From Film.………..Place Electrode Pads on Your Skin………..Turning On and OFF the Device......
Page 3: Indications For Use
INDICATIONS FOR USE Your iReliev® Dual Channel TENS + EMS System, model # ET-7070 is intended for: • Temporary relief of pain associated with sore and aching muscles in the upper and lower extremities (arm and/or leg) due to strain from exercise or normal household and work activities.
Page 4 Make sure you have everything: 1. iReliev® TENS + EMS Device 2. Belt Clip & Holster 3. (3) AAA Batteries 4. (2) Lead Wires 5. Tote Bag 6. (2) 3.5” x 5” XL Electrodes 7. (4) 2” x 2” Electrode Pads...
Page 5: Safety Instructions
Failure to follow instructions can cause harm to user or device malfunction. Please read the following information before using your iReliev Dual Channel TENS+EMS Device What is TENS? The more precise term is Transcutaneous (meaning “through the skin”) Electrical Nerve Stimulation (TENS). A TENS unit is an electrical powered device used to apply an electrical cur- rent to electrodes on a person’s skin to relieve pain associat-...
Page 6 • Do not use if you suffer from cancer. The effects of elec- tronic stimulation on cancerous tissue is unknown. • Do not use if you are under medical supervision for cog- nitive dysfunction as you may not be able to comply with safety instructions.
Page 7 • Do not place the pads on or around your head. The effects of stimulation of the brain are unknown. • Do not use the electrode pads over or close to sores. • Do not place the electrode pads on the front or sides of the neck across or through the heart (one pad on the front of the chest and one on the back), in the genital region, or on the head, because of the risk of stimulating inappropriate...
Page 8 Wait before using this system until: • At least 6 weeks after the birth of your baby (consult your doctor before use). • At least 1 month after an IUD contraceptive device (e.g. coil) has been fitted (consult your Doctor before use). •...
Page 9 • Keep the device out of the reach of children. • This device should only be used with iReliev® brand leads, electrode pads, and accessories. • Application of moderate heat (thermal wrap) to muscles as well as moistening skin prior to treatment improves treat- ment efficacy;...
Page 10 • Do not place pads over jewelry or body piercings. Please use caution and consult your Physician before using system if any of the following conditions apply to you: • You have any serious illness or injury not mentioned in this guide.
Page 11 18 or page 19 and then restart the program again. • Only use iReliev® brand electrode pads with your device. • The electrode pads are for single person use only.
Page 12: Warnings & Precautions
Therefore, it is very important to keep the de- vice dry to ensure the safety and performance of the device. Checkout the Step by Step Video at: https://ireliev.com/step-by-step-video-guide/ or Use QR Code reader to watch the Step by Step Video...
Page 13: Step By Step Setup Guide
STEP BY STEP SET UP GUIDE 1. Install Batteries The battery compartment is located on the back of the device. (Fig. A) Open the battery compartment by pushing the battery cover marked “Open” downward (this area features raised marks for easy identification). Insert 3 AAA (1.5 V) batteries in the battery compartment;...
Page 14: Connecting Lead Wires
Low Battery Status Indicator The battery status indicator will be visible whenever the bat- tery is low. This means that soon you will have to replace the batteries. (Fig. B) The batteries should last between 30 and 60 applications depending on stim- ulation times, frequencies, intensities and use of single or dual channels.
Page 15: Remove Electrode Pads From Film
3a. Remove Electrode Pads from Plastic Film (Fig. E) ▲ Note: To preserve the integrity of the electrode pads, affix back onto film when your therapy has con- cluded. ▲ Note: The electrode pads are disposable and use an adhesive gel that Figure E will dry after prolonged use or storage.
Page 16: Turning On And Off The Device
5. Turning On & Off the Device Power ON by pressing and releasing “ON/+” button.The device turns off automatically after the therapy session time has elapsed. (Fig. G) Power OFF by pressing “OFF/“ button for three (3) seconds. The display will go blank and the device will turn off.
Page 17: Selecting Therapy Modes
8. Select Therapy Modes (TENS P1-P8 or EMS P1-P6) The device offers 14 pre-set treatment pro- gram modes (see table pages 21-22). Modes differ in varying pulse widths and frequen- cies. To Select Therapy Mode: Press and re- lease “MODE” button. On LCD, see lower right treatment time blink, press and release “MODE”...
Page 18: Special Features
SPECIAL FEATURES: Lock Function Press and hold “ON/+” and “OFF/-” keys si- multaneously for 3 seconds to lock/unlock the device (Fig. N). The lock function pre- vents accidental setting changes. This feature is particularly helpful when placing the device inside your pocket, purse or wearing on your belt clip.
Page 19: Small Pad Placement
ELECTRODE PAD PLACEMENT Small Pad Placement...
Page 20: Large Pad Placement
XL Pad Electrode Pad Placement Place electrode pads on your skin as per the diagram:...
Page 21: Electrode Pad Care & Maintenance
Electrode Pad Care & Maintenance The electrode pads are disposable and use an adhesive that will dry after prolonged use or storage. Pads should be re- placed when they lose their adhesive quality, or you sense a change in stimulation sensation.
Page 22: Therapy Mode Guide Table
All electrical specifications are ±20%...
Page 24: Care And Maintenance
CARE AND MAINTENANCE The Device The device may be wiped clean with a small amount of soapy water on a clean cloth. Do not submerge the device in liquids or expose it to large amounts of water. ▲Never use aggressive cleaning products of stiff brushes to clean the device.
Page 27: Electromagnetic Compatibility
ELECTROMAGNETIC COMPATIBILITY The device complies with current specifications with regard to electromagnetic compatibility and is suitable for use in all premises, including those designated for private residential purposes. The radio frequency emissions of the device are extremely low and in all probability do not cause any interfer- ence with other devices in the proximity.
Page 28: Guidance And Manufacturer's Declaration
It is recommended that you do not place the device on top of or close to other electronic devices. Should you notice any interference with other electrical devices, move the iReliev device as radio equipment may affect the operation of this...
Page 32: Warranty
THANK YOU FOR PURCHASING Your new iReliev product is one of the best in the industry, and in many ways leads the industry, particularly in the warranty coverage and customer satisfaction. Customer satisfaction is a key factor in every iReliev transaction.
Page 35 ExcelHealth Inc. www.iReliev.com P.O Box 80907 Billings, Mt 59108 If you have any questions whatsoever regarding your iReliev® Dual Channel TENS + EMS System, Model # ET-7070, contact your reseller or ExcelHealth at: 406-672-6066 or visit www.iReliev.com...
