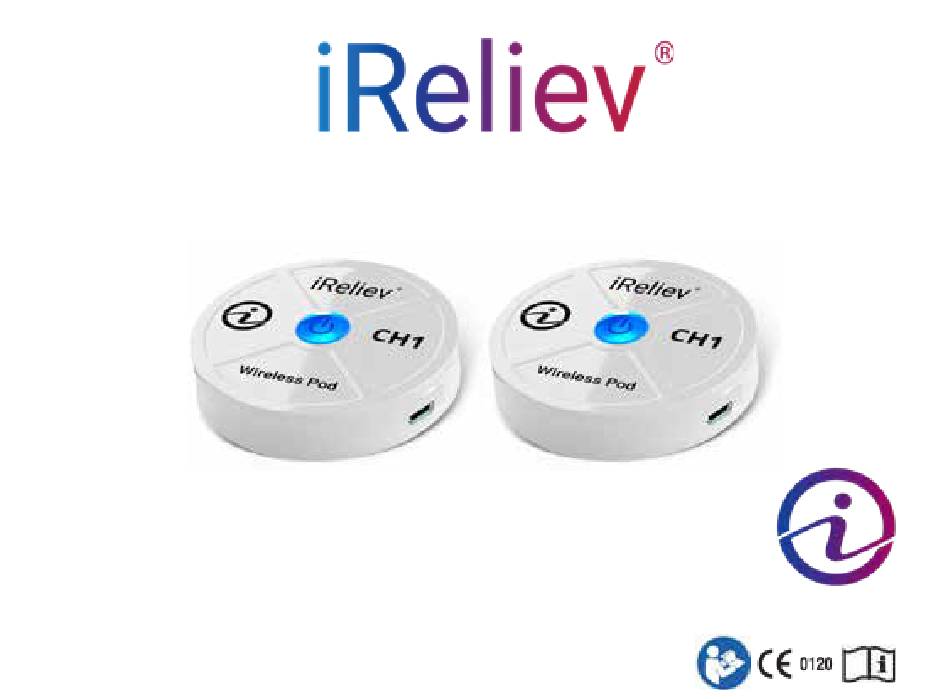

- Page 1 Expandable Wireless Pods Instruction Manual Model # ET-5555...
-
Page 2: Indications
Indications for Use The iReliev® Expandable Wireless Pods is for active treatment as per intended use: • For temporary relief of pain associated with sore and aching muscles in the lower back due to strain from exercise or normal household and work activities. -
Page 3: Table Of Contents
COMMUNICATION BETWEEN REMOTE AND RECEIVER POD(S)........................ 16 ELECTRODE PAD PLACEMENTS..........................................17 TENS PROGRAMS..................................................18 EMS PROGRAMS....................................................19 CARE AND MAINTENANCE............................................... 20 TROUBLESHOOTING.................................................. 21 TECHNICAL SPECIFICATIONS............................................22-24 RADIO FREQUENCY WIRELESS INFORMATION................................... 25-26 INFORMATION ABOUT ELECTROMAGNETIC COMPATIBILITY........................27-30 FCC INFORMATION..................................................31 WARRANTY......................................................32 REGISTER........................................................34 www.iReliev.com... -
Page 4: Contraindications, Warnings, And Precautions
• Muscle contractions may put the user at undue risk of injury which may include use while driving, operating machinery, or during any activity in which involuntary muscle contractions may put the user at undue risk of injury. www.iReliev.com... - Page 5 Do not use the device on children, if it has not been evaluated for pediatric use. We also recommend the following: • Consult with your physician before using this device, because the device may cause lethal rhythm disturbances to the heart in susceptible individuals. • Apply stimulation only to normal, intact, clean, healthy skin. www.iReliev.com...
- Page 6 You may experience headaches and other painful sensations during or following the application of electric stimulation near your eyes and to your head and face. • You should stop using the device and should consult with your physician if you experience adverse reactions from the device. www.iReliev.com...
-
Page 7: What's Included

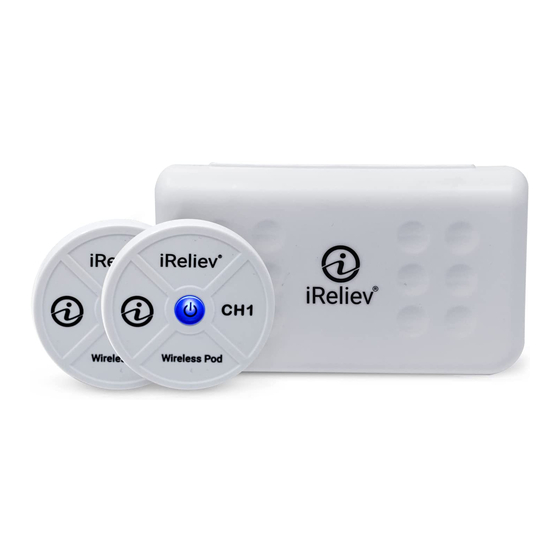

WHAT’S INCLUDED ® The iReliev Expandable Wireless Pods Includes: Wireless Receiver Pods (2) Protective Carry Case (1) www.iReliev.com... -
Page 8: Pod Features
An orange light indicates the receiver pod is now in charge mode; once fully charged the orange light will turn off. Note: Do not charge receiver pods with electrode pads snapped on to the receiver pods as it will reduce longevity of the electrode pads due to excessive heat from charging. www.iReliev.com... -
Page 9: About Rechargeable Batteries
When discarding or recycling batteries, make sure not to short circuit (+)(-) the terminals. • Please recycle. Do not dispose of old batteries with your household waste; dispose of them safely at your recycling center or business where the batteries were purchased. www.iReliev.com... -
Page 10: Set Up: Pod Channel Pairing
(CH1, CH2, CH3, CH4). Once you have selected the channel, then press SET button. Note: When the receiver pod(s) are paired, the button on the pod(s) will blink twice, which means that the channel pairing was successful. The LCD on the remote will display SS. www.iReliev.com... - Page 11 STEP 3 - Press SET on remote to adjust mode, program, and intensity level by channel pod(s). See steps 6-9 on pages 14-15 to complete the set-up. Note: If you have programmed your pod(s) to a different channel other than CH1, use the adhesive labels provided to mark the pod's channel on the pod(s). www.iReliev.com...
-
Page 12: Step By Step Operation Guide For Treatment
5. When removing electrode pads, always remove by pulling in the direction of hair growth. 6. It may be helpful to apply iReliev ® After Use Electrotherapy Lotion on electrode pad placement area when system is not in use to help increase moisture of skin. -
Page 13: Turning On And Off Receiver Pod(S)
Note: Do not turn the remote on until the receiver pod(s) are properly attached to electrode pad(s). Note: When stimulating the muscles of the arms or legs, muscle contraction may cause involuntary limb movement which may cause injury to yourself or others. Ensure limbs are secured to prevent movement. www.iReliev.com... -
Page 14: Selecting Tens Or Ems Mode
6 EMS programs; the programs differ with respect to varying pulse widths and frequencies. The program you choose determines the impulse output type. Choose the program that is appropriate to your needs as shown on pages 18-19 or is most comfortable to you. www.iReliev.com... -
Page 15: Selecting Treatment Minutes
You can use this as a guide to select an intensity level that is comfortable for you. Note: If you change therapy mode/program during a therapy session, the intensity level will reset to “0” to avoid unpleasant and unexpected impulses; it's a safety and precautionary feature. www.iReliev.com... -
Page 16: Communication Between Remote And Receiver Pod(S)
1. LCD symbol on the remote control and LED indicator guide on receiver pod(s). 2. The ET-5555 Expandable Wireless Pods comes with two (2) receiver pods. 3. Whenever the receiver pods are powered on, the remote control unit shall display the channel of the receiver pod(s). -
Page 17: Electrode Pad Placements
ELECTRODE PAD PLACEMENTS Go to iReliev.com/electrode-placements for more information www.iReliev.com... -
Page 18: Tens Programs
Variable comfortable tingling and pulsing sensation For symptomatic relief and management of (sensation should appear to come in waves). Pain chronic, intractable pain and relief of pain should ease and there should be relief after treatment. associated with arthritis. www.iReliev.com... -
Page 19: Ems Programs
Muscle muscle fibers. It may help improve anaerobic capacity Increase the stimulation intensity level until Strengthening and may help improve muscle strength. you get a strong and deep contraction. Do not exceed your comfort level; 20 min/duration. www.iReliev.com... -
Page 20: Care And Maintenance
Note: Electrode pads are for single person use only. If you have questions about the integrity of the electrode pads or if you want to order new electrode pads, please order online at www.iReliev.com or call us at 855-723-2582. Rechargeable Battery Care The rechargeable batteries are built-in the device(s). -
Page 21: Troubleshooting
2. If you have used advanced pairing option, press CH button on remote to navigate to respective pod. (See pages 10-11) 3. Set receiver pod by adjusting intensity. (See page 15) If intensity is not increased beyond "0", receiver pod will shut off automatically after 3 minutes of inactivity. www.iReliev.com... -
Page 22: Technical Specifications
• Essential Performance: The stimulation output as defined in the following specification table for TENS & EMS. TENS Programs Program Pulse width(uS) Frequency(Hz) Function Mode Constant Burst Constant 260~156 2~60 Modulation 260~156 Modulation 7~60 Modulation 260~156 Modulation 2.45~245 Cycle www.iReliev.com... - Page 23 Operating Conditions: +50°F (10°C) to +104°F (40°C), 40-90% max. Relative humidity Transport and Storage Conditions: +14°F (-10°C) to +140° (60°C), 30-95% max. Relative humidity Operation Altitude: 3000m. Operating Atmospheric Pressure Range: 700~1013 hPa Transport and Storage Atmospheric Pressure Range: 500~1060 hPa www.iReliev.com...
- Page 24 Interference may occur in the vicinity of equipment marked with the following symbol. Ingress Protecting Rating The symbol on the device means it is protected against hazards from entry of objects larger than a finger and IP22 vertically falling water drops when tilted at 15 degrees. Stand-by. www.iReliev.com...
-
Page 25: Radio Frequency Wireless Information
RADIO FREQUENCY WIRELESS INFORMATION Radio Frequency Wireless technology is used in the iReliev ® Expandable Wireless Pods. For communication between the remote control and the receiver pods: Wireless Protocol Characteristics Frequency band 2.4GHz ISM Protocol type Proprietary frequency Channel Channel width... - Page 26 Wireless Coexistence Testing The iReliev Expandable Wireless Pods protocol is designed to allow coexistence with at least 4 other iReliev devices. ® ® Each iReliev Expandable Wireless Pod is controlled by remote control. Receiver pod is assigned a unique ID. Before initial use, ®...
-
Page 27: Information About Electromagnetic Compatibility
® disturbances are controlled. The customer or the user of the system can help prevent electromagnetic interference by maintaining a minimum distance between portable and mobile RF communications equipment (transmitters) and the iReliev ® Expandable Wireless Pods are recommended below, according to the maximum output power of the communications equipment. - Page 28 0.22 0.35 Declaration – electromagnetic emissions and immunity for EQUIPMENT and SYSTEMS that are not LIFESUPPORTING and are specified for use only in a shielded location Table 2 The iReliev ® Expandable Wireless Pods declaration – electromagnetic immunity The iReliev Expandable Wireless Pods are intended for use in the electromagnetic environment specified below.
- Page 29 Table 3 Declaration – electromagnetic immunity The iReliev ® Expandable Wireless Pods are intended for use in the electromagnetic environment specified below. The customer or the user should assure that it is used in such an environment. Immunity test IEC 60601 test level...
- Page 30 NOTE: U is the a.c. main voltage prior to application of the test level. Table 4 Declaration – electromagnetic emissions The iReliev ® Expandable Wireless Pods are intended for use in the electromagnetic environment specified below. The customer or the user of the system should assure that it is used in such an environment.
-
Page 31: Fcc Information
To comply with the FCC RF exposure compliance requirements, no change to the antenna or the device is permitted. Any change to the antenna or the device could result in the device exceeding the RF exposure requirements and void user’s authority to operate the device. www.iReliev.com... -
Page 32: Warranty
The warranty does not apply to damage resulting from failure to follow the operating instructions, accidents, abuse, alterations, or disassembly by unauthorized individuals. ExcelHealth Inc. dba iReliev reserves the right to replace or repair the unit at our discretion. ExcelHealth Inc. -
Page 33: Register
Customer satisfaction is a key factor in every iReliev transaction. ® We are a company with a passion for affordable and effective electrotherapy products. At iReliev , word-of-mouth ® recommendations result in a large percentage of our business. This is a testament to our excellent product value and customer satisfaction. - Page 34 www.iReliev.com...
- Page 35 www.iReliev.com...
- Page 36 ExcelHealth Inc. www.iReliev.com 1603 Hart Street Southlake, TX 76092 If you have any questions whatsoever regarding your iReliev ® Expandable Wireless Pods Model # ET-5555, contact your reseller or ExcelHealth Inc. at: 855-723-2582 or visit www.iReliev.com...
