Summary of Contents for iReliev iRenew Plus ET-8080

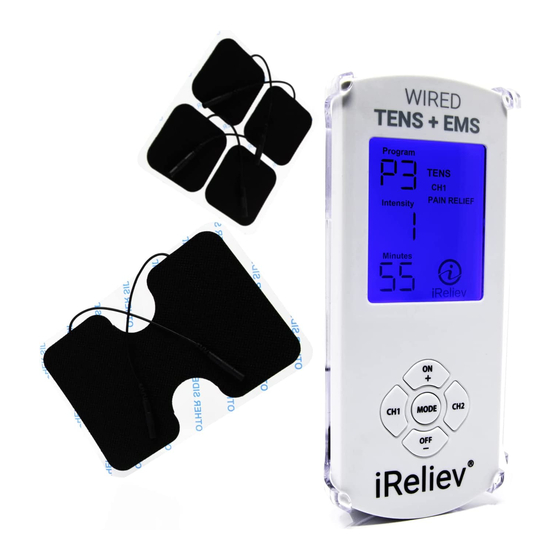

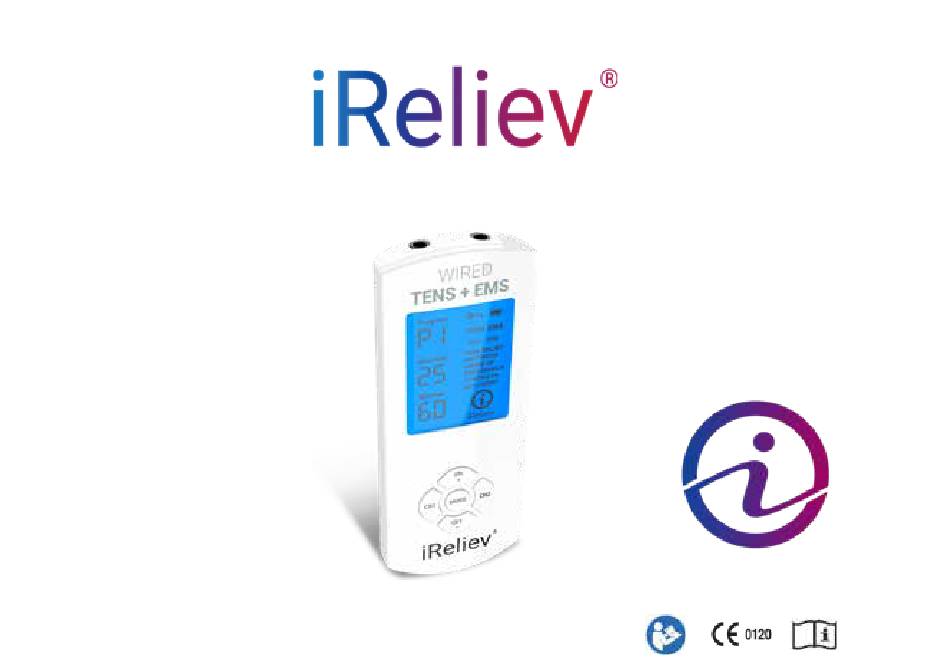

- Page 1 iRenew Plus Pain Relief & Recovery ™ TENS + EMS System Model # ET-8080 Instruction Manual...
-
Page 2: Table Of Contents Indications And Contraindications
• For symptomatic relief and management of chronic, intractable pain and relief of pain associated with arthritis. (Choose TENS Mode P8) • For use by healthy adults for the stimulation of healthy muscles in order to improve or facilitate performance. (Choose EMS Modes P1 through P6) www.iReliev.com... -
Page 3: Table Of Contents
Selecting the Therapy Modes (TENS P1-P8 or EMS P1-P6)..................Selecting the Intensity Level..….……………………………………....................SPECIAL FEATURES…………………………………………………...........................19 PAD PLACEMENTS....................................20-21 TENS PROGRAMS…………………………………………………..........................22 EMS PROGRAMS…………………………………………………..........................23 CARE AND MAINTENANCE………………….............................. 24 TROUBLESHOOTING.………..………………………............................25 TECHNICAL SPECIFICATIONS……………………………………………………...................... 26-27 ELECTROMAGNETIC COMPATIBILITY ……….............................28 FCC INFORMATION ………………………………………………………………......................33 WARRANTY………………………………................................34 REGISTER YOUR DEVICE …………………..............................36 REGISTRATION...................................... 37 www.iReliev.com... -
Page 4: Warnings And Precautions
Severe spasm of the muscles may occur and the contractions may be strong enough to close the throat or cause difficulty in breathing. Stimulation over the throat could also have an adverse effect on hearing or blood pressure. www.iReliev.com... - Page 5 Do not use the device in an environment where flammable or explosive fumes may exist. • User should never operate potentially dangerous machinery such as power saws, automobiles, exercise equipment etc. during electrical stimulation. • Application of electrodes pads near the thorax may increase the risk of cardiac fibrillation. www.iReliev.com...
- Page 6 Use caution when there is a tendency to hemorrhage, such as following acute trauma or fracture. Over a menstruating or pregnant uterus. User may experience skin irritation due to electrical stimulation or the conductive medium. Discontinue stimulation and consult a clinician. Irritation may be reduced by www.iReliev.com...
- Page 7 Application of moderate heat (thermal wrap) to muscles as well as moistening skin prior to treatment improves treatment efficacy and the use of cold packs on treated muscles after treatment is likewise recommended. This unit should only be used with iReliev ® brand electrode pads and accessories. • •...
- Page 8 Turn off the stimulator if the stimulation feels unpleasant or does not provide pain relief. • Keep your system out of the reach of children. Use your stimulator only with iReliev ® brand electrode pads and accessories. • • Do not use this system when driving, operating machinery, or when swimming.
- Page 9 Do not use this system if you are wearing a belly button ring. Remove ring before use of this device. Use this device with only the leads and electrode pads provided for use by iReliev ® . Other accessories may •...
- Page 10 ® reseller. Do not try to repair a defective device. • WARNING: No modification of this system is allowed. WARNING: Use of non-iReliev ® brand accessories may negatively affect the system’s performance. • • WARNING: Do not stack and store this system close to other equipment.
-
Page 11: What's Included
2. Belt Clip & Holster x 1 3. 3.5” x 5” XL Electrode Pads x 2 4. 2” x 2” Electrode Pads x 4 5. AC Adapter and USB Charging Wire (23.5”) 6. Lead Wires x 2 7. Tote Bag x 1 www.iReliev.com... -
Page 12: Device Features
Channel 1 Key (CH1) Channel 2 Key (CH2) Program Mode Function 1. LED backlight will display for 10 seconds upon turning on. 2. When charging, the device will shut off automatically. 3. If symbol is displayed, battery power is low. www.iReliev.com... -
Page 13: About Rechargeable Battery
• When discarding or recycling battery, make sure not to short-circuit (+)(-) the terminals. • Please recycle. Do not dispose old battery with your household waste; dispose of them safely at your recycling center. • Keep away from children. Do not recharge. Do not short circuit. www.iReliev.com... - Page 14 (1 flash/sec.) until fully charged. When fully charged, the symbol will appear and will not be flashing. Note: You may not use the device while it’s charging. When charging, the device will turn off automatically. www.iReliev.com...
-
Page 15: Charging The Battery
The batteries should last between 30 and 60 applications depending on stimulation times, frequencies, intensities and use of single or dual channels. Note: 1. When voltage is lower or equal to 3.3v the symbol will show on the LCD screen. www.iReliev.com... -
Page 16: Step By Step Operation Guide For Treatment
System requires that there is a minimum of 2 small electrode pads or 1 XL electrode pad per lead wire. Note: The system will by default auto-reset to “0” intensity on respective channel if correct number of electrode pads are not attached to the lead wries and placed on your body. www.iReliev.com... -
Page 17: Turning On & Off The Device
Press and release “ON/+” or “OFF/-” to toggle between TENS and EMS. Note: When you first push and release “MODE”, treatment time will be flashing. To select TENS or EMS, you must push and release “MODE” another time to reach TENS EMS quadrant. www.iReliev.com... - Page 18 Note: Always start with the lowest intensity gradually increasing until you feel a “tingling” sensation. Never increase the intensity to a level that causes additional pain. Stay under the point of discom- fort. Start with short sessions of 5-10 minutes until you are comfortable with the stimulation. www.iReliev.com...
-
Page 19: Special Features
The last treatment pro- gram you used will appear on the display, when you turn on the device. • Press mode to save your selection. The program selected will appear on the display the next time you turn on the device. www.iReliev.com... -
Page 20: Pad Placements
Small Pad Placement Suggestions Calves Elbow Feet Ankle Knees Lower Back Quads Shoulder Upper Arm Wrist Upper Back www.iReliev.com... -
Page 21: Pad Placements
Large Pad Placement Suggestions Calves Knees Lower Back Shoulder Upper Arm Upper Back www.iReliev.com... -
Page 22: Tens Programs
-for symptomatic relief and man- Variable comfortable tingling and pulsing sensation (sensation should agement of chronic, intractable appear to come in waves). Pain should ease and there should be relief after pain and relief of pain associated treatment. with arthritis. www.iReliev.com... -
Page 23: Ems Programs
Increase the Strengthening It improves their anaerobic capacity and is used for im- stimulation intensity until you get a strong and deep proving maximum muscle strength. contraction. Do not exceed your comfort level; 20 min/duration. www.iReliev.com... -
Page 24: Care And Maintenance
If you’re in doubt about the integrity of the electrode pads or if you want to order fresh electrode pads, please order online at www.iReliev.com or contact authorized reseller(s). How to Store Your System Store your system at room temperature in a dry place, out of the reach of children. -
Page 25: Troubleshooting
• Replace/reconnect lead wires. does not generate electric pads are broken or pulses. disconnected. • Ensure lead wires are properly seated in CH1/CH2. Treatment time expired. • Switch the device to the OFF position and then power ON. Increase treatment time. www.iReliev.com... -
Page 26: Technical Specifications
Essential Performance: The stimulation output as defined in the following specification table for TENS & EMS. TENS Programs : Program Pulse width(uS) Frequency(Hz) Function Mode Constant Burst Constant 260~156 2~60 Modulation 260~156 Modulation 7~60 Modulation 260~156 Modulation 2.45~245 Cycle www.iReliev.com... - Page 27 Transport and Storage Conditions: +14°F (-10°C) to +140° (60°C), 30-95% max. Relative humidity Operation Altitude: 3000m. Operating Atmospheric Pressure Range: 700~1013 hPa Transport and Storage Atmospheric Pressure Range: 500~1060 hPa (i) There are a number of technical symbols on your system, explained as follows on next page www.iReliev.com...
- Page 28 This symbol means “type BF equipment”; this device offers protection against electrical shock by standard compliance to leakage currents of electrode pad. (ii) There is a label on the package explained as: This symbol means “use before”, represented as “YYYY-MM” (for year and month). www.iReliev.com...
-
Page 29: Electromagnetic Compatibility
The customer or the user of the system can help prevent electromagnetic interference by maintaining a minimum distance between portable and mobile RF communications equipment (transmitters) and the iRenew™ Plus Pain Relief & Recovery System as recommended below, according to the maximum output power of the communications equipment. www.iReliev.com... - Page 30 Radiated RF IEC 3 V/m 3 V/m aration distance calculated from the equation applicable to 61000-4-3 80 MHz to 2.5 GHz the frequency of the transmitter. Interference may occur in the vicinity of equipment marked with the following symbol: www.iReliev.com...
- Page 31 70 % U (30 % dip in U ) for 70 % U (30 % dip in U ) for powered from an uninterruptible power supply or a 25 cycles 25 cycles battery. <5 % U <5 % U www.iReliev.com...
- Page 32 Class B use in all establishments, including domestic establishments Harmonic emissions and those directly connected to the public low-voltage pow- IEC 61000-3-2 Class C er supply network that supplies buildings used for domestic purposes. Voltage fluctuations/Flicker Complies emissions IEC 61000-3-3 www.iReliev.com...
-
Page 33: Fcc Information
To comply with the FCC RF exposure compliance requirements, no change to the antenna or the device is permitted. Any change to the antenna or the device could result in the device exceeding the RF exposure requirements and void user’s authority to operate the device. www.iReliev.com... -
Page 34: Warranty
WARRANTY This iRenew™ Plus Pain Relief & Recovery System carries a one-year warranty from the date of purchase. Extended warranties are provided with device registration at iReliev.com/registration. The warranty applies to the main device and necessary parts and labor. Consumable items like lead wires, electrode pads, and other accessories are guaranteed to be free from defects in workmanship and materials at the time of delivery. - Page 35 THANK YOU FOR PURCHASING Your new iReliev ® product is one of the best in the industry, and in many ways, leads the industry, particularly in the warranty coverage and customer satisfaction. Customer satisfaction is a key factor in every iReliev ® transaction.
-
Page 36: Register Your Device
1 additional year of device warranty as well as free gifts and discounts. Please go to https://www.iReliev.com/register When registering, flip your device as shown to reveal the serial number. You may also find serial number on the under- side of the retail box. -
Page 37: Registration
www.iReliev.com... - Page 40 ExcelHealth Inc. www.iReliev.com 1603 Hart Street Southlake, TX 76092 If you have any questions whatsoever regarding your iRenew™ Plus Pain Relief & Recovery System Model # ET-8080, contact your reseller or ExcelHealth Inc. at: 855-723-2582 or visit www.iReliev.com...
