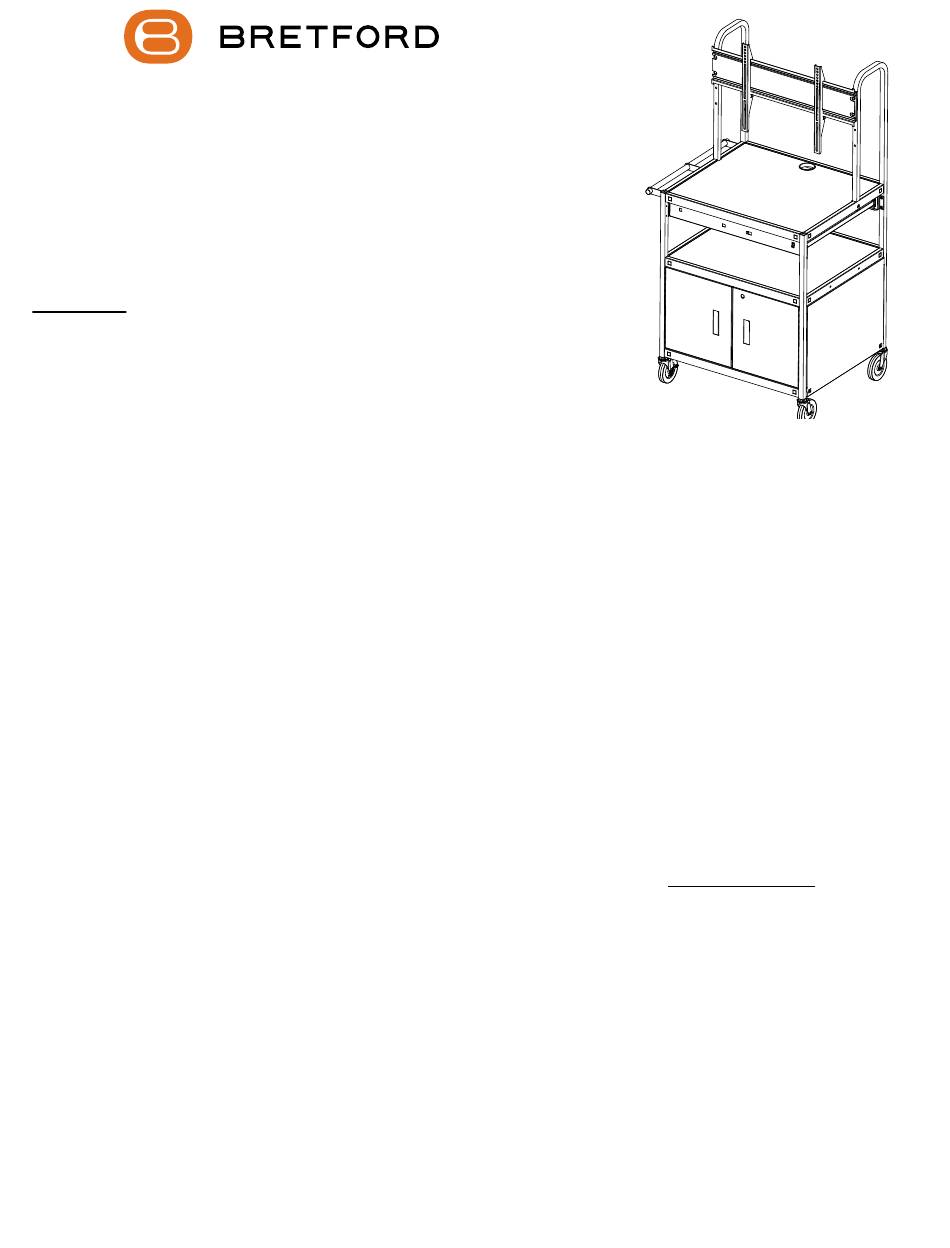

FP42ULC
FLAT PANEL CABINET CART WITH
OR WITHOUT A PULL OUT SHELF
WARNING: FP42 carts are intended to hold monitors up to 75 lbs. The
use of a TV monitor weighing more than that may result in instability
causing possible injury.
hold equipment up to 50 lbs. on each shelf. The pull out shelf on FP42MULC is
intended to support equipment up to 15 lbs.
PARTS LIST
Cart Models: FP42ULC & FP42MULC
Qty
Part#
Description
1
022-3065
Right Rear Leg Assembly
1
022-3066
Left Rear Leg Assembly
2
022-3067
Front Leg Assemblies
1
010-5778
Top Shelf
1
022-1414
Middle Shelf
1
010-1910
Bottom Shelf
2
010-1908
Cabinet Side Panel
1
010-1909
Cabinet Rear Panel
1
022-1415
Right Door Assembly w/Lock
1
022-1416
Left Door Assembly
1
022-2827
Handle Assembly
1
022-3068
Monitor Bracket
2
010-4953
Hook Bars
2
010-4956
Stop Brackets
2
015-0017
5" Stem Casters w/o Lock
2
015-0018
5" Stem Casters with Lock
Pull Out Shelf Models :
FP42MULC
Qty
Part#
Description
2
010-5783
Shelf Brackets
1
010-5782
Pull Out Shelf
1
030-1468
Left Outer Slide
1
030-1470
Right Outer Slide
2
030-1471
Inner Slides
Electrical Unit Models :
FP42ULC-E5BK, FP42MULC-EBK,
Qty
Part#
Description
1
E6 UNIT
6-Outlet Electrical Unit
FP42MULC
The top, middle and bottom shelves are intended to
HARDWARE LIST
Ref
Qty
Part#
AA
22
030-0300-10T
BB
24
030-0002
CC
2
030-0023
DD
2
030-0024
EE
4
030-0259
FF
12
030-0304
GG
2
030-1349
HH
2
SC1048B
II
2
030-0207
JJ
4
030-0401
KK
4
030-0411
LL
4
030-0865
MM
2
030-0354
1
010-1188
2
012-0286
1
010-1106
1
030-1352
1
030-0368
1
044-2124
Description
5/8" Square Head Bolts
5/16-18 Hex Serrated Nuts
#6-32 x 3/8" Round Hd Machine Screws
#6-32 Hex Nuts
#10 x 1/2" Phillips Pan Hd Screws
1/4-20 X 1/20" Truss Hd Screws
5/16-18 x 3/4" Hex Hd Screws
1/4-20 x 45mm Bolts
1/4-20 Serrated Flange Nuts
5/8-18 x 1 1/2" Hex Head Screws
5/16-18 Serrated Nuts
#6 x 1/2" Button Pin-In Hd Screws
10-32 x 1 1/2" Button Sockets Screws
Door Stop
Plastic Handles
Hex Wrench
1/8" Security Pin-In Driver Bit
Replacement Key Set
Courtesy Hardware Pack
This Pack Consists of:
(4) Metric M4 x 12 Screws
(4) Metric M4 x 30 Screws
(4) Metric M5 x 12 Screws
(4) Metric M5 x 30 Screws
(4) Metric M6 x 12 Screws
(4) Metric M6 x 35 Screws
(8) Small Washers
(20) Large Washers
(4) 5/8" Large Spacers
1
Advertisement
Related Manuals for Bretford FP42ULC
Summary of Contents for Bretford FP42ULC
- Page 1 The top, middle and bottom shelves are intended to hold equipment up to 50 lbs. on each shelf. The pull out shelf on FP42MULC is intended to support equipment up to 15 lbs. PARTS LIST HARDWARE LIST Cart Models: FP42ULC & FP42MULC Part# Description Part# Description 030-0300-10T 5/8”...
- Page 2 STEP 1 Position the top shelf onto the rear legs making sure the leg brackets are to inside of the shelf. LOOSELY secure the shelf to the legs using screws (AA) and bolts (BB). BRACKET TO THE INSIDE These side holes are used for installing the handle.
- Page 3 STEP 2 Slide the middle and bottom shelves onto the rear legs. Slide the front legs on. LOOSELY install hardware to top shelf corner ONLY, remembering to leave access for the handle. Slide on middle shelf. Slide on bottom shelf. Slide on front legs.
- Page 4 STEP 3 Install handle to either side of the cart using bolts (GG) and nuts (BB). STEP 4 Secure tube and top shelf together using screws (HH) and nuts (II).
- Page 5 STEP 5 Position each side panel under the middle shelf and hook it’s bottom flange under the bottom shelf as shown. LOOSELY install hardware to each corner with bolts (AA) and nuts (BB). Carefully rotate cart onto it’s back and install rear panel just like side panels. Side Panel INSTALL HARDWARE TO EACH CORNER...
- Page 6 STEP 6 Install door stop to bottom shelf using screws (CC) and nuts (DD). STEP 7 Attach a handle to each door with screws (EE). Then install each door between the middle and bottom shelves with screws (FF). NOTE: Adjustments to the door stop may need to be done.
- Page 7 STEP 8 Push a caster into each leg insert. To ensure casters are securely in place, a rubber mallet may be used to tap them in place. NOTE: The locking casters MUST be installed on the same side as the handle. STEP 9 Attach the monitor bracket onto the front of the rear leg tubes as shown using bolts (JJ) and nuts (KK).
- Page 8 SKIP TO STEP 15 IF YOUR CART DOES NOT HAVE A SHELF STEP 10 Attach each shelf bracket under the top shelf as shown using screws (FF). Make sure the bracket cutouts face this way, if not the bracket will be installed upside down.
- Page 9 STEP 12 Install each inner slide into the outer slides. NOTE: Push inner slide in all the way until it snaps in. STEP 13 Extend the slides to the positioning shown.
- Page 10 STEP 14 Install the pull out shelf by sliding CUTOUT 1 into TAB 1 and CUTOUT 2 into TAB 2. CUTOUT 2 TAB 1 TAB 2 CUTOUT 1...
- Page 11 STEP 15 Attach both hook bars onto the back of your monitor using the mounting holes built into the case. A courtesy hardware pack has been provided with several metric screw sizes. You may need to purchase additional metric screws from your local hardware store for odd shaped monitors. BOTTOM STEP 16 With someone’s help, hook your monitor onto the bracket as shown.
- Page 12 STEP 17 Attach the stop brackets to the hook bars as shown with security screws (LL) using the driver bit provided. STEP 18 Center your monitor horizontally and then tighten in place with screws (MM). CENTER MONITOR HORIZONTALLY THEN SECURE Part # 031-8691 Rev.
