Bretford MDMTAB24 User Manual

USER GUIDE

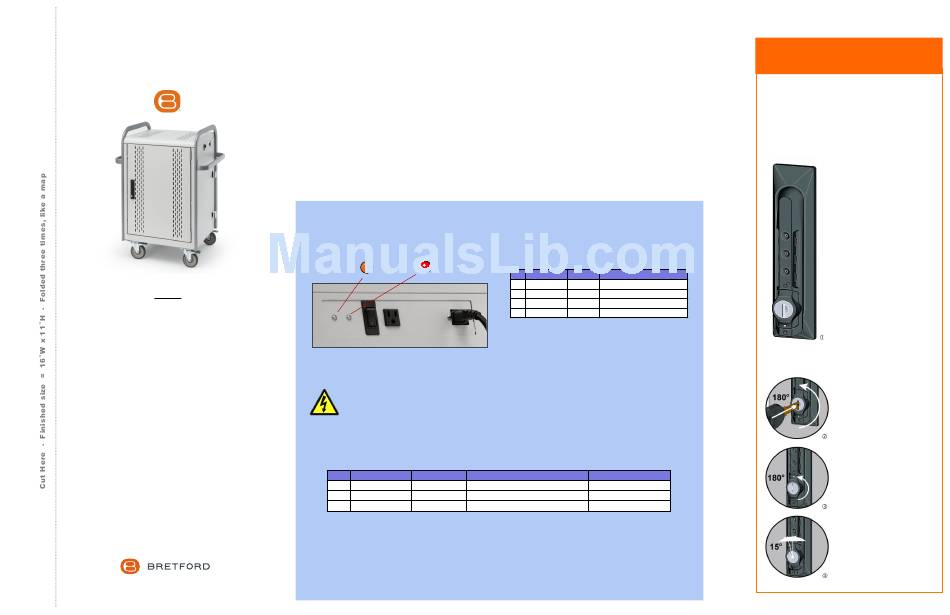

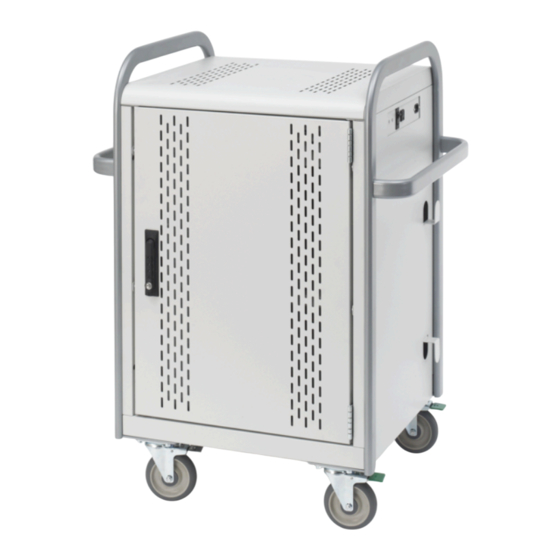

MDM Tablet Cart
MDMTAB24
24 Tablet Computers in Vertical Slots
Maximize your technology investment
Unique Power Management & Control System
gives you the ability to:
Save on energy costs – the "Power Manager"
knows the more charged a battery, the less power
it requires.
Extend the battery life of your computers with
one touch!
Designed for the IT Coordinator, the
Instructor & the Student
Easy set-up for the IT Coordinator
Easy to maintain by the Instructor
Easy to use for the Student
Laser-cut Identification System helps keep you
in control and your investment organized.
®
11000 Seymour Avenue Franklin Park, IL 60131 USA 800 521 9614
www.bretford.com
Power Management System ... The "Power Manager"
• The MDM Tablet Cart features the new and improved "Power Manager", which is designed to continuously charge
even the most power hungry laptops using only one wall outlet.
• The system uses a "Round Robin" charging cycle that constantly evaluates the demand for power and allows
each electrical strip time to cool down. Cooler batteries last longer, and extended battery life saves you money.
• One Auxiliary Outlet is included on the side of the cart to plug in a video projector or printer. Since the "Power
Manager" dedicates power to the auxiliary outlet when in use, the risk of tripping the circuit is eliminated.
• A Divider Panel separates the computer/battery from the transformer, minimizing the transformer's heat impact on
the battery ... cooler batteries last longer.
The "Power Manager" has two LED indicator lights visible on the side of the cart that let you know what it is doing.
The light on the left is Amber and the right one is Red
Amber Red
Please Note: It is recommended
that nothing be plugged into the
Auxiliary outlet while charging
Basic Troubleshooting
# Amber L ight Red L ight
1 Single B links Off Auxiliary D rawing T oo M uch P ower
2 Single B links Single B links One S et D rawing T oo M uch P ower
3 Double B links Off Internal T emp o f C art T oo H igh
1. If the Amber light displays single blinks, it means the current required to power the auxiliary outlet is too high. Unplugging whatever is in
the auxiliary outlet should allow the "Power Manager" to resume charging the devices.
2. If both the Amber and Red lights start to blink, it means one set of devices is drawing too much current and the "Power Manager" needs to
be reset by turning it off and back on. If problem persists there may be a faulty device that needs to be removed.
3. If the Amber light displays double blinks, the internal temperature of the cart is too high. Open the doors of the cart and/or move the cart
to a cooler room. The cart should cool down without having to turn off the "Power Manager"
What is the "Power Manager" doing?
# Amber L ight Red L ight Meaning
1 On On Start-­‐Up
2 Off Off Self-­‐Test
3 On Off Smart C harge M ode
4 Off Off All C harge M ode
1. When the power button is switched to the "On" position, both
indicator lights will light up for approximately 2 seconds.
2. Both lights will then turn off while the "Power Manager" evaluates
the power required to charge the first set of devices.
3. The Amber light will come on and stay lit indicating that the "Power
Manager" is now in "Smart Charge" mode. This means that tablets
will be charged in groups, three minutes at a time.
4. Once the power needed to charge all of the devices in the cart
reaches a level that will not trip the circuit, the "Power Manager"
enters "All Charge" mode and both lights will be off. All devices are
now charging.
Meaning Solu6on
Unplug A uxiliary
Turn O ff & B ack O n
Open D oors/Move C art
Dual-Locking Swing Handle
Flexible Security
The MDM Tablet Cart is secured with
a unique dual-locking handle built
right into the doors. The handle can
be opened by using EITHER the three
digit combination or a key.
1. Using the Key
• Insert the key into the lock and
turn it 180 degrees counter
clockwise (2)
• Lift and turn the handle to open
the door.
• To re-lock, turn the key 180
degrees clockwise.
2. Using the Combination Locks
• Dial in the factory set combination
– "000"
• Turn the wing knob 180 degrees
counter clockwise until the arrow
points straight up (3). Lift and
turn the handle to open the door.
• To re-lock, turn the wing knob 180
degrees clockwise and scramble
the combination.
3. Changing the Combination
• Put the keylock in the locked
position and dial in the existing
combination.
• Turn the wing knob 180
degrees + 15 degrees counter
clockwise (3) & (4). Enter the
desired new combination.
• Turn the wing knob 15 degrees
clockwise. The new
combination is now set.
Part #: 031-9497 10/08/2012
