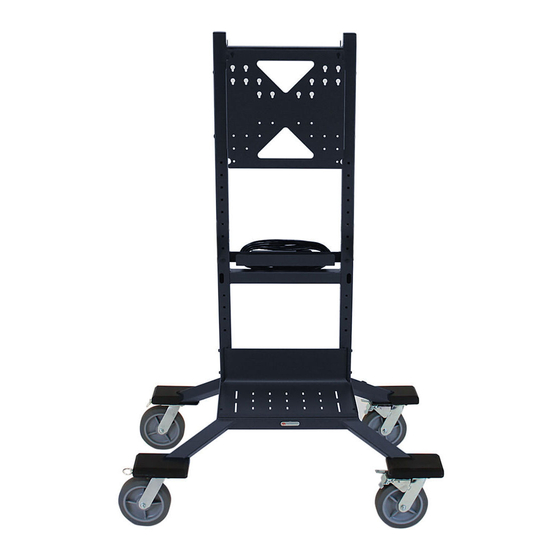

Assembly Steps: 1. Unbox and Remove Packaging Cut off straps and Remove TV Mount & center Lift the outer wrap up and off remove top tray internal supports Slide the Handle up and out Remove remaining support pieces (for model ETCMHD-SB) Slide the Upright up and out Unfold end flap on bottom tray and roll Base off pallet...
Page 3
2. Attach Upright to Base Hardware: 030-2302 (x4) – Hex Head Screws 030-2303 (x4) – Lock Washers 010-8837 (x1) – Hex Wrench Install the Upright on the Base by Push the “ON” tab down on the two sliding it onto the two posts. locking casters so frame does not move.
Page 4
3. Install TV Mount to Upright NOTE: It is recommended that 75”+ Hardware: monitors go on the lower holes to 030-2322 (x4) – Carriage Bolts 030-2323 (x4) – Lock Nuts prevent hitting the top of the doorway 010-8837 (x1) – Hex Wrench Line up bottom of TV Mount with Attach with Carriage Bolts and Nuts, one of the two sets of holes.
Page 5
Caution: Two person install 4. Mount your TV Caution: Display not to exceed 200 pounds Hardware: M6 or M8 Set Screws (x4) Caution: Ensure caster brakes are locked M6 or M8 Set Screws (x4) M6 or M8 Set Screws (x4) Caution: Do not overtighten set screws Determine the hole size on the back of the TV to be mounted –...
Page 6
5. Manage the Power Cord Hardware: 030-2249 (x3) – Cable Management Loop 030-2244 (x3) – Push Rivet 031-8122 (x3) – Velcro Strap 1. There is a series of small holes on each side of the frame for locating the cable management loops. Install loops with push rivets. 2.
