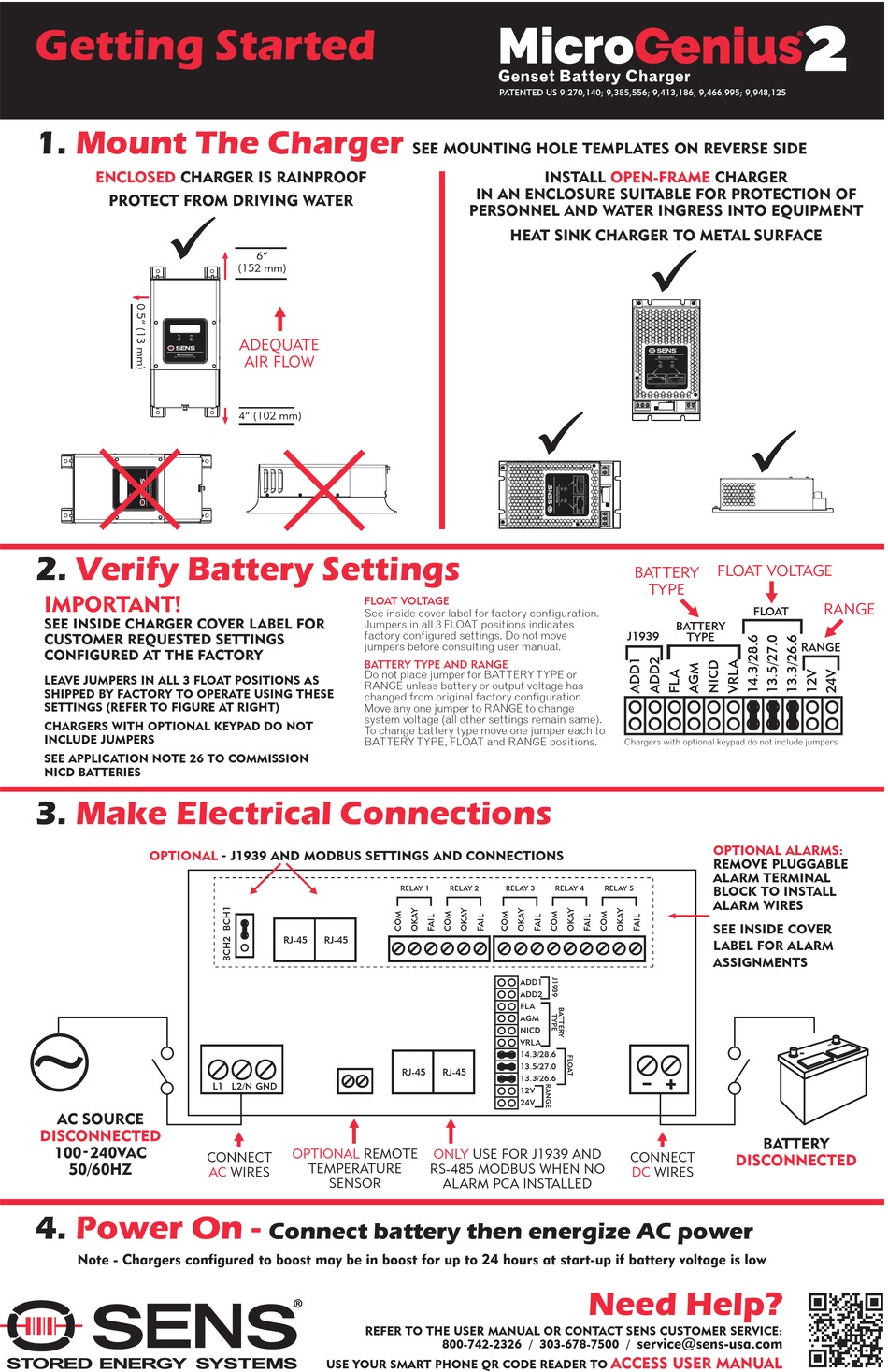

Sens MicroGenius 2 Getting Started

Getting Started
1. Mount The Charger
ENCLOSED CHARGER IS RAINPROOF
PROTECT FROM DRIVING WATER

M icroG enius
H igh Pe r fo r m an c e B atte r y C h ar ge r
2. Verify Battery Settings
IMPORTANT!
SEE INSIDE CHARGER COVER LABEL FOR
CUSTOMER REQUESTED SETTINGS
CONFIGURED AT THE FACTORY
LEAVE JUMPERS IN ALL 3 FLOAT POSITIONS AS
SHIPPED BY FACTORY TO OPERATE USING THESE
SETTINGS (REFER TO FIGURE AT RIGHT)
CHARGERS WITH OPTIONAL KEYPAD DO NOT
INCLUDE JUMPERS
SEE APPLICATION NOTE 26 TO COMMISSION
NICD BATTERIES
3. Make Electrical Connections
OPTIONAL
AC SOURCE
DISCONNECTED
100 - 240VAC
50/60HZ
4. Power On -
Note - Chargers configured to boost may be in boost for up to 24 hours at start-up if battery voltage is low
6"
(152 mm)
ADEQUATE
AIR FLOW
4" (102 mm)
FLOAT VOLTAGE
See inside cover label for factory configuration.
Jumpers in all 3 FLOAT positions indicates
factory configured settings. Do not move
jumpers before consulting user manual.
BATTERY TYPE AND RANGE
Do not place jumper for BATTERY TYPE or
RANGE unless battery or output voltage has
changed from original factory configuration.
Move any one jumper to RANGE to change
system voltage (all other settings remain same).
To change battery type move one jumper each to
BATTERY TYPE, FLOAT and RANGE positions.
- J1939 AND MODBUS SETTINGS AND CONNECTIONS
RJ-45 RJ-45
L1 L2/N GND
OPTIONAL REMOTE
CONNECT
TEMPERATURE
AC WIRES
SENSOR
Connect battery then energize AC power
REFER TO THE USER MANUAL OR CONTACT SENS CUSTOMER SERVICE:
USE YOUR SMART PHONE QR CODE READER TO
PATENTED US 9,270,140; 9,385,556; 9,413,186; 9,466,995; 9,948,125
SEE MOUNTING HOLE TEMPLATES ON REVERSE SIDE
INSTALL
IN AN ENCLOSURE SUITABLE FOR PROTECTION OF
PERSONNEL AND WATER INGRESS INTO EQUIPMENT
HEAT SINK CHARGER TO METAL SURFACE

RELAY 1 RELAY 2 RELAY 3 RELAY 4
ADD1
ADD2
FLA
AGM
NICD
VRLA
14.3/28.6
13.5/27.0
RJ-45 RJ-45
13.3/26.6
12V
24V
ONLY USE FOR J1939 AND
RS-485 MODBUS WHEN NO
ALARM PCA INSTALLED
800-742-2326 / 303-678-7500 /
OPEN-FRAME CHARGER

M icroG enius
H igh Pe r fo r m an c e B atte r y C h ar ge r
A C G o o d A C G o o d A C G o o d G R E E N G R E E N G R E E N G R E E N D C G o o d
A C Fa il A C Fa il A C Fa il R E D R E D R E D R E D C h a rg e r Fa il
Y E L L O W V D C L o w / H ig h
R E D + Y E L L O W B a tt B a ckw a rd s
In va lid S e ttin g In va lid S e ttin g In va lid S e ttin g Y E L L O W Y E L L O W Y E L L O W Y E L L O W In va lid S e ttin g
A DDITIONA L LE D CODE S LOCATE D IN US E R M A NUA L

FLOAT VOLTAGE
BATTERY
TYPE
FLOAT
BATTERY
J1939 TYPE
Chargers with optional keypad do not include jumpers
OPTIONAL ALARMS:
REMOVE PLUGGABLE
ALARM TERMINAL
RELAY 5 BLOCK TO INSTALL
ALARM WIRES
SEE INSIDE COVER
LABEL FOR ALARM
ASSIGNMENTS
CONNECT
DISCONNECTED
DC WIRES
Need Help?
service@sens-usa.com
ACCESS USER MANUAL
RANGE
RANGE
BATTERY
