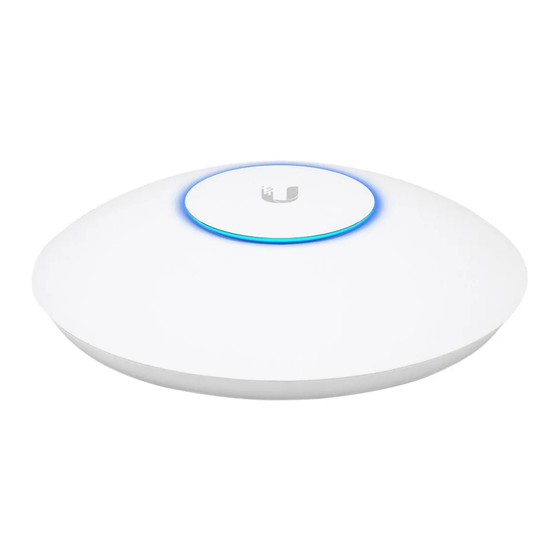

Guide *Gigabit PoE and Power Cord are not included with UAP‑XG 5‑pack TERMS OF USE: Ubiquiti radio devices must be professionally installed. Shielded Ethernet cable and earth grounding must be used as conditions of product warranty. It is the professional installer’s responsibility to follow local country regulations, including operation within legal...
Installation Requirements • Phillips screwdriver • Drill and drill bit (8 mm for wall mounting or 3 mm for ceiling tile mounting) • Optional: Drywall or keyhole saw (to cut 18 mm hole for Ethernet cable feed) • Cat6A UTP cable for indoor installations Outdoor Installation Requirements IMPORTANT: The UAP‑XG may be installed outdoors...
Network Topology Requirements • A DHCP‑enabled network (for the AP to obtain an IP address as well as for the wireless clients after deployment) • A UniFi Cloud Key or management station running the UniFi Controller v5.7 (or newer) software, located either on‑site and connected to the same Layer 2 network, or off‑site in the cloud or NOC UAP-AC-PRO...
Hardware Overview LED Color Status Factory default, waiting to be integrated. White Initializing. Flashing White Device is busy; do not touch or unplug it. Alternating This usually indicates that a process such White/Blue as a firmware upgrade is taking place. Indicates the device has been successfully Blue integrated into a network and is working...
Page 6
Ports Security Slot M/N: UAP-XG 802.3bt PoE FCC ID: SWX-UAPXG IC: 6545A-UAPXG Contains FCC ID: SWX-M442G Contains IC: 6545A-M442G Contains FCC ID: SWX-M445GL Contains IC: 6545A-M445GL Contains FCC ID: SWX-M445GH Contains IC: 6545A-M445GH Reset 10 GbE Button Port 1 GbE Port Reset The Reset button serves two functions for the UniFi AP: •...
Mounting Plate The Mounting Plate offers a variety of mounting holes for different applications. The legend printed on the Mounting Plate identifies the holes used for each application. Upgrade from UAP‑AC‑PRO The UAP‑XG is compatible with the UAP‑AC‑PRO mounting hardware, so you only need to remove the UAP‑AC‑PRO and replace it with the UAP‑XG.
Hardware Installation The UniFi AP can be mounted on a wall, ceiling tile, drop ceiling T‑rail (up to 40 mm), or electrical junction box. Perform the steps for the appropriate installation. Note for UniFi AP replacement: The holes marked “A” on the Mounting Plate line up with the holes of mounting brackets used for previous UniFi AP models.
Page 9
3. Insert the Screw Anchors into the holes. Secure the Mounting Plate to the wall by inserting the Wall Screws into the anchors. 4. Go to the Connecting Ethernet section, and then return to step 5. 5. Align the Arrow on the top edge of the UniFi AP with the Arrow on the Mounting Plate.
6. Rotate the UniFi AP clockwise until the tabs lock into place and the Lock Tab engages. Ceiling Mount 1. Remove the ceiling tile. 2. Place the Ceiling Backing Plate in the center of the ceiling tile. Mark the four mounting screw holes and an 18 mm hole for the Ethernet cable feed.
Page 11
3. Use a 3 mm drill bit to drill the screw holes, and cut or drill the 18 mm hole for the Ethernet cable feed. 4. Insert the Ceiling Screws through the Mounting Plate, ceiling tile, and Ceiling Backing Plate. Fasten the screws using the Keps Nuts.
Page 12
5. Perform the steps in the Connecting Ethernet section, and then return to step 6. 6. Align the Arrow on the top edge of the UniFi AP with the Arrow on the Mounting Plate. Arrow Lock Tab Arrow 7. Rotate the UniFi AP clockwise until the tabs lock into place and the Lock Tab engages.
Page 13
T‑Bar Mount 1. Remove the ceiling tiles on both sides of the T‑bar you will use for mounting. 2. Loosen the set screws of the T-Bar Mounts. 3. Insert the T‑bar into a T-Bar Mount, and turn the T-Bar Mount clockwise to attach it. Use the included Allen Wrench to tighten the two set screws to secure the T-Bar Mount.
Page 14
5. Use the two dashed lines on the Mounting Plate to space the T-Bar Mounts 77 mm (3") apart. 6. Tighten the two set screws on the second T-Bar Mount.
Page 15
7. Insert the included T-Bar Screws into the holes marked “B” on the Mounting Plate, and then secure the plate to the T-Bar Mounts. 8. Drop the Ethernet cable between the plate and T‑bar.
Page 16
9. Perform the steps in the Connecting Ethernet section, and then return to step 10. 10. Align the Arrow on the top edge of the UniFi AP with the Arrow on the Mounting Plate. Arrow Lock Tab Arrow 11. Rotate the UniFi AP clockwise until the tabs lock into place and the Lock Tab engages.
Page 17
Junction or Outlet Box Mount 1. Use the legend printed on the Mounting Plate to select the appropriate mounting holes for your installation. 2. Pull the Ethernet cable through the Mounting Plate, and attach the Mounting Plate to the junction or outlet box using at least two screws (not included).
Page 18
4. Align the Arrow on the top edge of the UniFi AP with the Arrow on the Mounting Plate. Arrow Arrow Lock Tab 5. Rotate the UniFi AP clockwise until the tabs lock into place and the Lock Tab engages.
Connecting Ethernet 1. Remove the rubber port cover from the UniFi AP. 2. If the Ethernet cable runs along the mounting surface, skip to step 3. If the Ethernet cable is fed through the wall or ceiling, insert the Cable Feed Plug. 3.
Page 20
Powering the UniFi AP The UAP‑XG features auto‑sensing 802.3bt PoE support and can be powered by any 802.3bt PoE compliant switch. To power the UniFi AP, connect the Ethernet cable from the UniFi AP directly to a PoE+ port on the switch. 802.3bt PoE Switch Note:...
UniFi Controller management interface. For information on configuring and using the UniFi Controller software, refer to the User Guide. Mobile App Installation Ubiquiti Networks also offers the UniFi mobile app, which is available from the App Store (iOS) or Google Play Store ™...
Specifications UAP‑XG Dimensions 228 x 228 x 50 mm (8.98 x 8.98 x 1.97") Weight without Mount 1300 g (2.87 lb) Networking Interface (1) 10/100/1000 RJ45 Ethernet Port (1) 1/10 Gbps ICM Ethernet Port Buttons Reset Power Method PoE+ 802.3bt Max.
Safety Notices Read, follow, and keep these instructions. Heed all warnings. Only use attachments/accessories specified by the manufacturer. WARNING: Do not use this product in a location that can be submerged by water. WARNING: Avoid using this product during an electrical storm.
(VI) has no original Ubiquiti MAC label, or is missing any other original Ubiquiti label(s); or (VII) has not been received by Ubiquiti within 30 days of issuance of the RMA.
SUBJECT TO LIMITATIONS, INTERRUPTIONS, DELAYS, CANCELLATIONS AND OTHER PROBLEMS INHERENT IN THE USE OF COMMUNICATIONS FACILITIES. UBIQUITI NETWORKS, ITS AFFILIATES AND ITS AND THEIR THIRD PARTY PROVIDERS ARE NOT RESPONSIBLE FOR ANY INTERRUPTIONS, DELAYS, CANCELLATIONS, DELIVERY FAILURES, DATA LOSS, CONTENT CORRUPTION, PACKET LOSS, OR OTHER DAMAGE RESULTING FROM ANY OF THE FOREGOING.
Page 26
Note Some countries, states and provinces do not allow exclusions of implied warranties or conditions, so the above exclusion may not apply to you. You may have other rights that vary from country to country, state to state, or province to province. Some countries, states and provinces do not allow the exclusion or limitation of liability for incidental or consequential damages, so the above limitation may not apply to you.
ISED Canada CAN ICES-3(A)/NMB-3(A) This device complies with ISED Canada licence‑exempt RSS standard(s). Operation is subject to the following two conditions: This device may not cause interference, and This device must accept any interference, including interference that may cause undesired operation of the device. The radio transmitters (IC: 6545A‑UAPXG, IC: 6545A‑M442G, IC: 6545A-M445GL and IC: 6545A-M445GH) have been approved by ISED Canada.
Page 28
RoHS/WEEE Compliance Statement English European Directive 2012/19/EU requires that the equipment bearing this symbol on the product and/or its packaging must not be disposed of with unsorted municipal waste. The symbol indicates that this product should be disposed of separately from regular household waste streams.
Page 29
Español La Directiva 2012/19/UE exige que los equipos que lleven este símbolo en el propio aparato y/o en su embalaje no deben eliminarse junto con otros residuos urbanos no seleccionados. El símbolo indica que el producto en cuestión debe separarse de los residuos domésticos convencionales con vistas a su eliminación.
English Hereby, UBIQUITI NETWORKS declares that the radio equipment type UAP-XG is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: www.ubnt.com/compliance Eesti keel [Estonian] Käesolevaga deklareerib UBIQUITI NETWORKS, et käesolev raadioseadme...
Page 31
Malti [Maltese] B’dan, UBIQUITI NETWORKS, niddikjara li dan it-tip ta’ tagħmir tar-radju UAP-XG huwa konformi mad-Direttiva 2014/53/UE. Id-dikjarazzjoni tal-konformità tista’ tiġi kkonsultata minn www.ubnt.com/compliance Norsk [Norwegian] UBIQUITI NETWORKS erklærer herved at utstyret UAP-XG er i samsvar med de grunnleggende krav og øvrige relevante krav i direktiv 2014/53/EU. Den fulle teksten til EU-samsvarserklæringen er tilgjengelig på...
