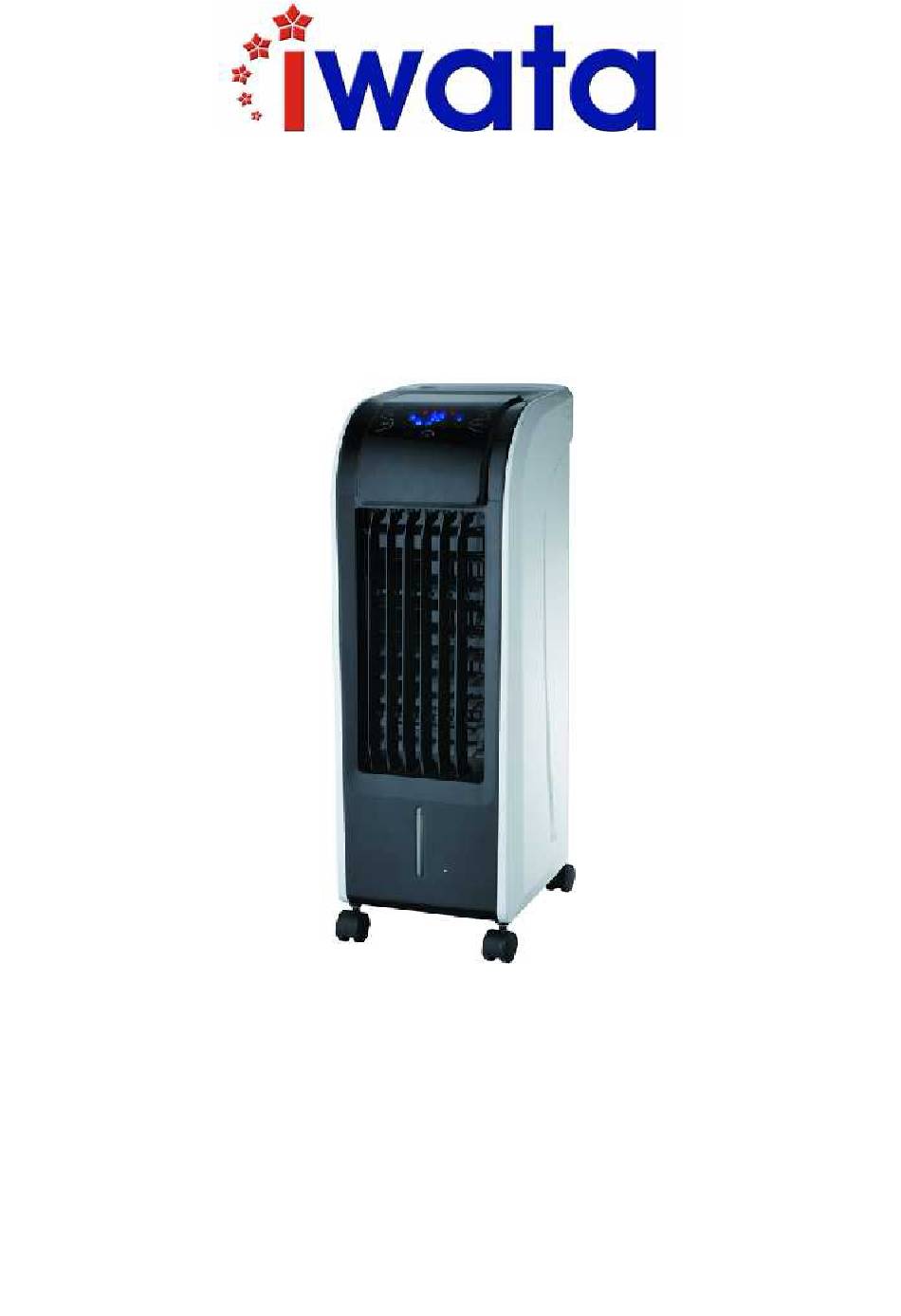

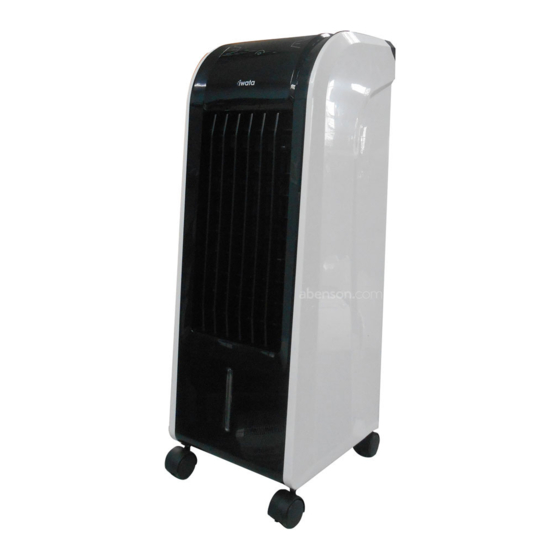

AIR COOLER INSTRUCTION MANUAL MODEL: CM14EC-X2 INTRODUCTION ●Thank you for purchasing our air cooler. ●Each unit has been manufactured to ensure safety and reliability. ●Before initial use, please read this manual carefully and keep it for future reference.
PERFORMANCE PARAMETERS Model Rating Power Power Water tank capacity Specification CM14EC-X2 220V,60Hz Cooling only FUNCTIONS ● Principle of Cooling: Water flows into the cooling pad using a water pump and water evaporates making the air cooler. ● Electronic control: Safe and durable, attractive appearance.
ASSEMBLY AND ADDING WATER 1. Assembling castors: put the appliance on a flat surface, take out the wrench from foam box, then assemble the castors. 2. Remove the water tank by pulling it out a third from the body of the unit and add clean water. a.
Page 4
CAUTION 1. Use as per the rating voltage. 2. Do not repair or remake the appliance by yourself, have it repaired at the service center. 3. Do not operate the appliance with wet hands, to avoid damaging the unit. 4. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
CLEANING AND MAINTENANCE WARNING: Ensure that the unit is unplugged from the supply mains before removing the air filter screen. 1. Cleaning the air filter screen (map 1) Cut off the power supply, pull the handle of air filter screen, remove it from the appliance. Clean the air filter screen with neutral detergent and banister brush, then clean it with clear water.
ELECTRIC PRINCIPLE DIAGRAM TROUBLESHOOTING AND MAINTENANCE Malfunction Causes Solution Unit not functioning 1. Power is off or poor 1. Plug the power cord and connection on outlet. make sure It is well 2. “ON” key on the control connected to the wall panel is not pressed firmly.
