INSTRUCTION MANUAL

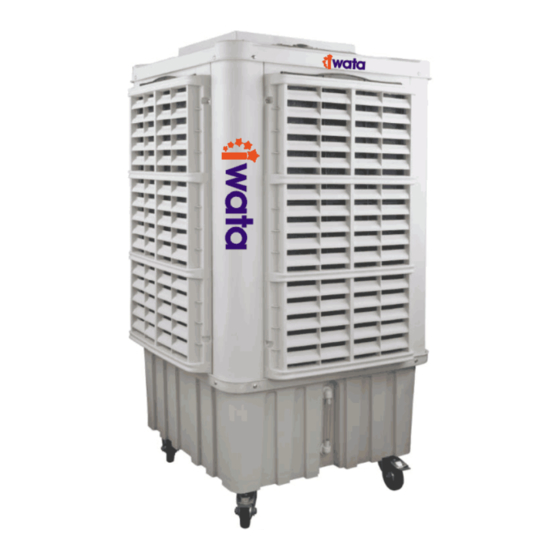

IWATA Evaporative Air Cooler
TORNADO iAC-6000/iAC-8000
www.colentco.com
For after-sales service:
Tel. #: 442-3866, 412-6155, 413-8819, 442-3856, 448-7674
Mobile. # 0923-5345681, 0917-3079188, 0920-9746874
Email: sales_mktg@colentco.com , iwata@colentco.com
iwata2@colentco.com or iwata3@colentco.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Iwata Tornado iAC-6000
Summary of Contents for Iwata Tornado iAC-6000
- Page 1 INSTRUCTION MANUAL IWATA Evaporative Air Cooler TORNADO iAC-6000/iAC-8000 www.colentco.com For after-sales service: Tel. #: 442-3866, 412-6155, 413-8819, 442-3856, 448-7674 Mobile. # 0923-5345681, 0917-3079188, 0920-9746874 Email: sales_mktg@colentco.com , iwata@colentco.com iwata2@colentco.com or iwata3@colentco.com...
- Page 2 TABLE OF CONTENTS Preface …………………………………………………………………………… Warnings & Precautions……………………………………………………… Models Available ………………………………………………………………… Controller Panel…………………………………………………………… Technical Parameters……………………………………………………….. Preventive Maintenance………………………………………………………. Product Application…………………………………………………………… Troubleshooting Guide………………………………………………………...
- Page 3 PREFACE Thank you for purchasing Iwata evaporative air cooler. Please read this instruction manual prior to initial use. Actual product may vary from the images shown in this manual due to continuous product development and may not necessarily affect the performance or reduce its functionality but rather improve it.
- Page 4 B.Selection of model 1、Main body TORNADO iAC-6000 TORNADO iAC-8000 INSTALLATION DIAGRAM Choose the model & accessories that fit your requirements. Installation will be based on final customer requirements and images shown are for reference only. Please contact the...
- Page 5 4、PARTS IDENTIFICATION 5、TYPE OF ACCESSORIES AVAILABLE:...
- Page 6 C. CONTROL PANEL 1、”SPEED” BUTTON: Adjust the fan speed (Low, Medium, High) 2、“SWING”Button: Control the swing function 3、“COOL”Button: Control the water supply. TECHNICAL PARAMETERS Model TORNADO-iAC-6000 TORNADO-iAC-8000 Max airflow 4,500m³/h 8,000m³/h Voltage 220V/60HZ 220V/60HZ Power 400W 950W Currency 2.2A 5.2A Outlet size 350×330mm 350×330mm...
- Page 7 detergent to avoid damaging it. 3. Drainage Cleaning: Open the drain and empty the contents of the water tank then use a soft cloth to wipe off and excess liquid and dirt. Please remember to also clean any dirt on the water pump and valves. 4.Main body cleaning：When cleaning the outside parts of the machine, please use mild soapy water and a soft cloth.
