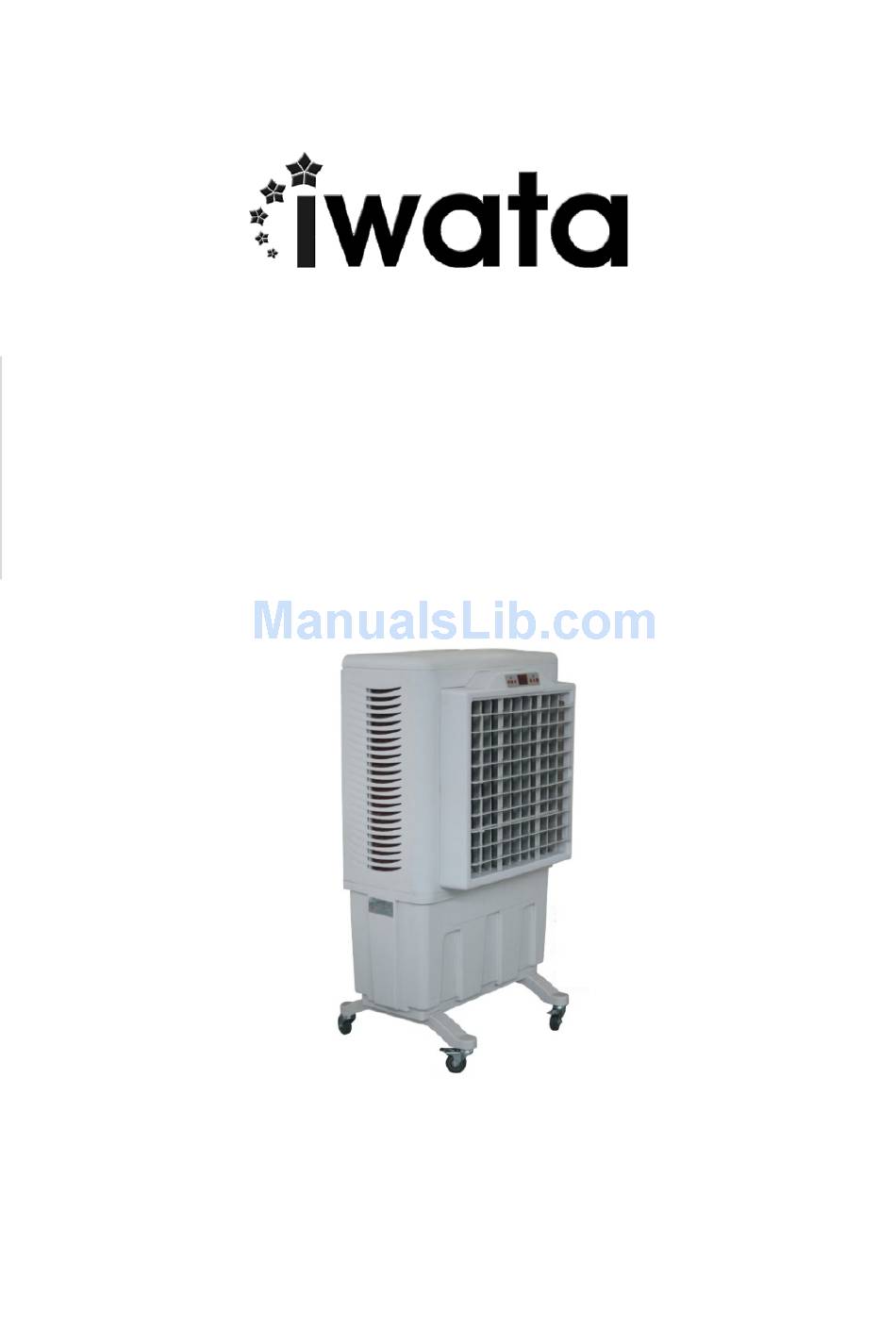

- Page 1 EVAPORATIVE AIR COOLER INSTRUCTION MANUAL AIRBLASTER-2 Please read this manual carefully before initial use...
- Page 2 Preface Thank you for purchasing our new generation evaporative air cooler. Please read this manual thoroughly before initial use.
-
Page 3: Table Of Contents
Table of Contents N o t i c e ..................1 Cooling principle ................1 A p p l i c a t i o n s... -
Page 4: Notice
Notice Please read this manual carefully and thoroughly before you run this unit. When the air cooler is working, pay attention to not allow welding or other igniting sources near it. Power outlet must have a ground wire not less than 1.5mm thickness in order to ensure effective grounding of air cooler. -
Page 5: Operation
Operation Fig1 Control panel (Fig 1) 1 On/off Press this button once to start the unit. It will start up with low fan speed and cool function on the initial use. Press this button again to turn off. 2 Cool During operation, press this button to start the evaporative cooling function. -
Page 6: Wiring Diagram
Wiring diagram Fig 3... -
Page 7: Installation And Disassembly
Installation of castors Installation of castors Fig 4 Fig 5 Fig 6 1.Take the two castors with brake, two castors without brake and 2pcs of castor frames (Fig 4). 2. Fix the castors into the M10 hole on castor frames. Castors with brake should be installed on the front side of the unit (Fig 5). -
Page 8: Water In/Out Diagram
Draining Water Rotate the drain plug counterclockwise and remove it. Water will flow out via gravity and re-install the drain plug afterwards. Technical parameters Model AIRBLASTER-2 Air volume (m /h) 6000 Blast pressure (pa) Input power (W) Voltage/frequency (V/Hz) -
Page 9: Troubleshooting Guide
Troubleshooting problem possible reason solution not working well 1. The plug is not securely 1. Insert the plug into the socket firmly and make sure it is well inserted into the socket, not connected or check the breaker if well connected or no power on there is no power on the convenience outlet.
