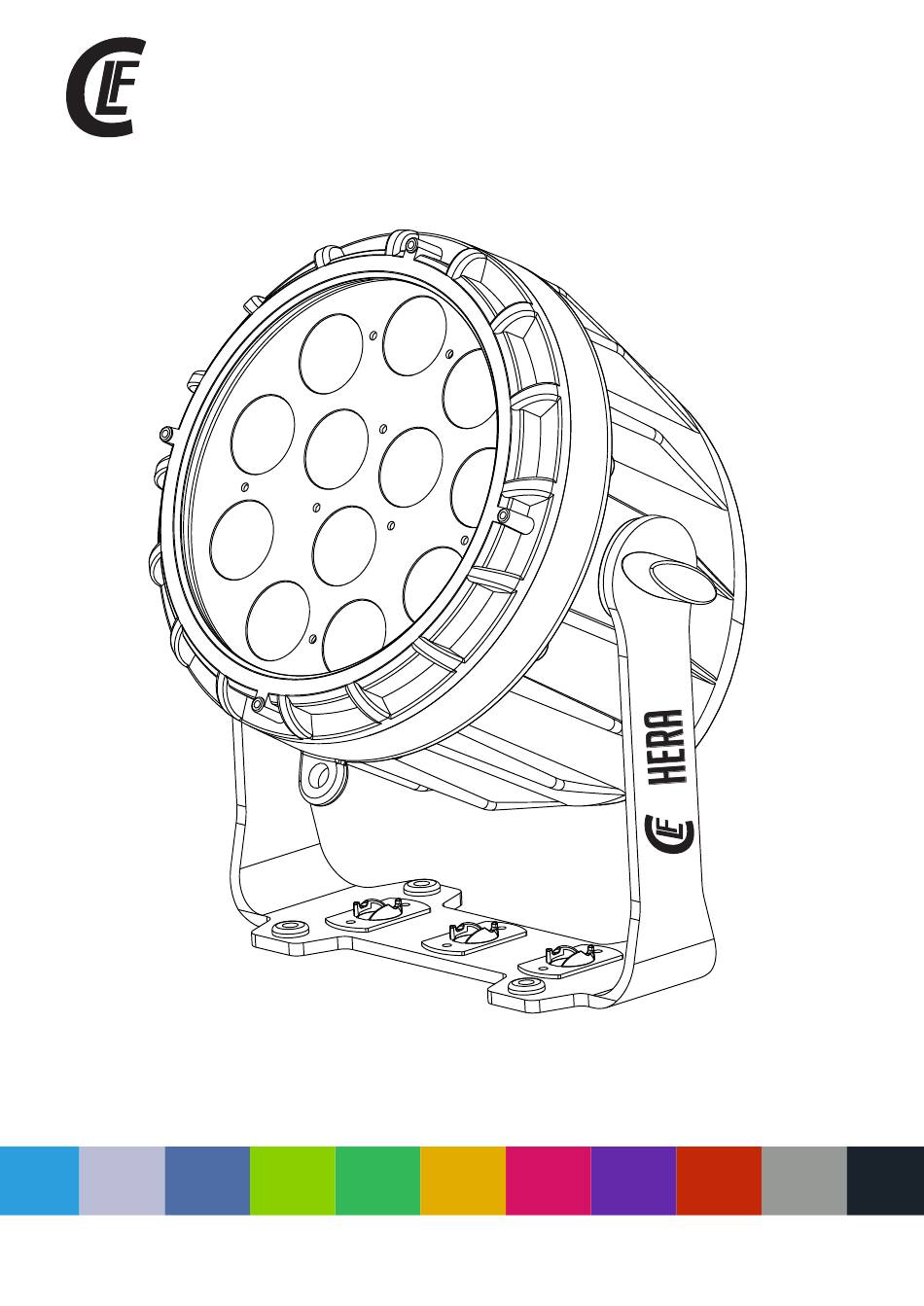

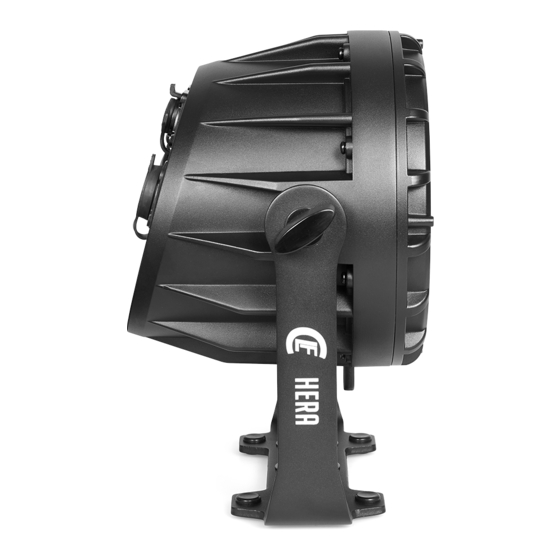

- Page 1 HERA manual WWW.CLF-LIGHTING.COM V1.0 March 2018...
-
Page 2: Table Of Contents
table of CONTENTS Dimensions Safety Information Fixture overview Introduction AC power Power voltage Power cables Relaying power to other devices Data link Tips for reliable data transmission Physical installation Fastening the fixture to a flat surface Setup Control panel and menu navigation DMX address setting Control Mode Static Color options... -
Page 3: Dimensions
Dimensions All dimensions are in millimeters WWW.CLF-LIGHTING.COM... -
Page 4: Safety Information
WARNING! Read the safety precautions in this section before installing, powering, operating or servicing this product The following symbols are used to identify important safety information on the product and in this manual: DANGER! DANGER! WARNING! WARNING! WARNING! WARNING! WARNING! Safety hazard. - Page 5 Do not connect any other type of device to these sockets. Do not stick filters, masks or other materials onto any optical component, besides the optional CLF Hera filters. Do not modify the fixture in any way not described in this manual.
-
Page 6: Fixture Overview
5P DMX output 3P DMX input (optional) 3P DMX output (optional) # CLF-13-453 # CLF-13-454 AC mains power AC mains power input throughput HERA LCD Display Control buttons Safety cable attachment point G Clamp with Quicklock # 875760 (Optional) Omega bracket with... -
Page 7: Introduction
Introduction Outdoor RGBWAP LED Fixture Affordable lighting essential Unique bracket design ¢ Touring proof ¢ Smooth RGBWAUV color mixing ¢ Ip65 rating ¢ Silent operation ¢ Wireless DMX (Optional ) ¢ Smooth projection ¢ ® Powercon true 1 in & out ¢... -
Page 8: Power Cables
power cables Power input and throughput cables must be rated 16A minimum, have three conductors 1.5 mm² (16 AWG) minimum conductor size and an outer cable diameter of 5 - 15 mm. Cables must be hard usage type (SJT or equivalent) and heat- resistant to 90°C minimum. -
Page 9: Physical Installation
Physical installation Warning! The fixture must be either fastened to a flat surface such as a stage or wall, or clamped to a truss or similar structure in any orientation using a rigging clamp. Warning! If the fixture can cause injury or damage it if falls, attach an approved safety cable to one of the safety cable attachment points on the base (see “Fixture overview”... -
Page 10: Setup
SETUP Warning! Read “Safety Information” on page 2 before installing, powering, operating the fixture. Control panel and menu navigation The onboard control panel and backlit graphic display are used to set the fixture’s DMX address, configure individual fixture settings (personality), read out data and execute service utilities. See “Onboard control menus”... -
Page 11: Control Mode
Control mode DMX control mode is selected in the CONTROL MODE menu. The fixture has 9 DMX control modes: 11ch 13ch Dimmer RGBW A+UV Strobe Macro color Effect Dimmer / Auto speed Function set Saturation Value Intensity WWW.CLF-LIGHTING.COM... -
Page 12: Static Color Options
Static Color options There are three options for static color: 1. FIXED Color Several options from combinated RGBW values. Use Up and Down to scroll through the options. R = Red RB = Red & Blue BW = Red & White G = Green GB = Green &... -
Page 13: Auto Show
Auto show The auto function gives 10 auto programs and custom programs RGBW color combinations which are working without any DMX console. Hit [ENTER] to adjust the speed of the Auto program from 1-20. Auto program 1 pre-program 1 1) Auto 1 11) Program 1 Auto program 2 pre-program 2... -
Page 14: Dimmer Mode
DIMMER MODE provides five dimming options (see picture below): DMX % DMX % DMX % LINEAR SQUARE LAW INVERSE SQUARE LAW DMX % S-CURVE DMX % Up DMX % Down SPECIAL LINEAR – the increase in light intensity appears to be linear as DMX value is increased. SQUARE LAW –... -
Page 15: Dmx Protocols
dmx protocols Function Value Setting Remark 0 - 100 Saturation 0 - 100 Value 0 - 100 Note: In HSV mode, Hue stands for the visible light, such as red, yellow, and cyan, etc. Saturation refers to the dominance of hue in the color; when saturation is at 100%, then the color is at its purest. Value is the color's brightness; when value is at 100%, then the color is at its brightest. - Page 16 dmx protocols 7 CH Function Value Setting Remark Dimmer 0 - 100 0 - 100 Green 0 - 100 Blue 0 - 100 White 0 - 100 Amber 0 - 100 0 - 100 8 CH Function Value Setting Remark Dimmer 0 - 100 0 - 100...
- Page 17 11 CH Function Value Setting Remark Dimmer 000 - 255 0 - 100% 000 - 255 0 - 100% Green 000 - 255 0 - 100% Blue 000 - 255 0 - 100% White 000 - 255 0 - 100% 000 - 019 No function 020 - 024...
- Page 18 13 CH Function Value Setting Remark Dimmer 000 - 255 0 - 100% 000 - 255 0 - 100% Green 000 - 255 0 - 100% Blue 000 - 255 0 - 100% White 000 - 255 0 - 100% Amber 0 - 100% 0 - 100%...
- Page 19 Onboard control menus Main Menu Menu level 2 Menu level 3 Remark DMX ADDRESS Default <001> 1. Red 2.Green 3.Blue 4.White 1. Dimmer, 2.Red, 3.Green, 4.Blue, 5.White, 1.Red, 2.Green, 3.Blue,4.White, 5.Amber, 6.UV 1. Dimmer, 2.Red, 3.Green, 4.Blue, 5.White, 6.Amber, 7.UV 1.
-
Page 20: Onboard Control Menus
Onboard control menus Main Menu Menu level 2 Menu level 3 Remark R, G, B, W, A, UV, AUV, RG, RB, GB, RGB, RW, Default : RGBWAUV GW, BW, RGW, RBW, GBW, RGBW, RA, GA, BA, WA, RGA, RBA, GBA, RGBA, RWA, GWA, BWA, RGWA, RBWA, GBWA, RGBWA, RUV, GUV, BUV, WUV, RGUV, RBUV, GBUV, RGBUV, RWUV, Fixed color... -
Page 21: Exploded View
exploded view Description Part Number Front cover ring CLF-14-003 Rubber glass ring CLF-14-010 Tempered front glass CLF-14-013 Lens kit CLF-17-002 LED board CLF-17-006 LED board radiator CLF-14-002 CLF-14-016 Fan cover CLF-14-017 Power supply CLF-14-015 Power supply support bracket CLF-14-007 Case body CLF-14-001 Display board CLF-17-005... -
Page 22: Specifications
Specifications Physical Length 260mm Width 180mm Height 290mm Weight 3.8 kg without accessories Dynamic Efects beam angle ° Optics 12 pcs high-power LEDs (RGBWAUV) Light source Control and Programming Control DMX512-A DMX channels 4 / 5 / 6 / 7 / 8 / 11 / 13 / HSV / HSI Setting and addressing Control panel with backlit LCD graphic display Protocol... - Page 23 Outdoor IP-rated fixtures CLF products are applied to official classified IP norm levels. For this product the IP rate is IP65 when using the covers for the chassis parts. IP65 means according classified norm: shielded against dust and pressurized water from any side. Typical use for outdoor rated stage events with normal weather acceptance.
- Page 24 NOTE 22.0 WWW.CLF-LIGHTING.COM...
- Page 25 Hera CLFLIGHTING WWW.CLF-LIGHTING.COM...
