Summary of Contents for CLF Lighting Aorun

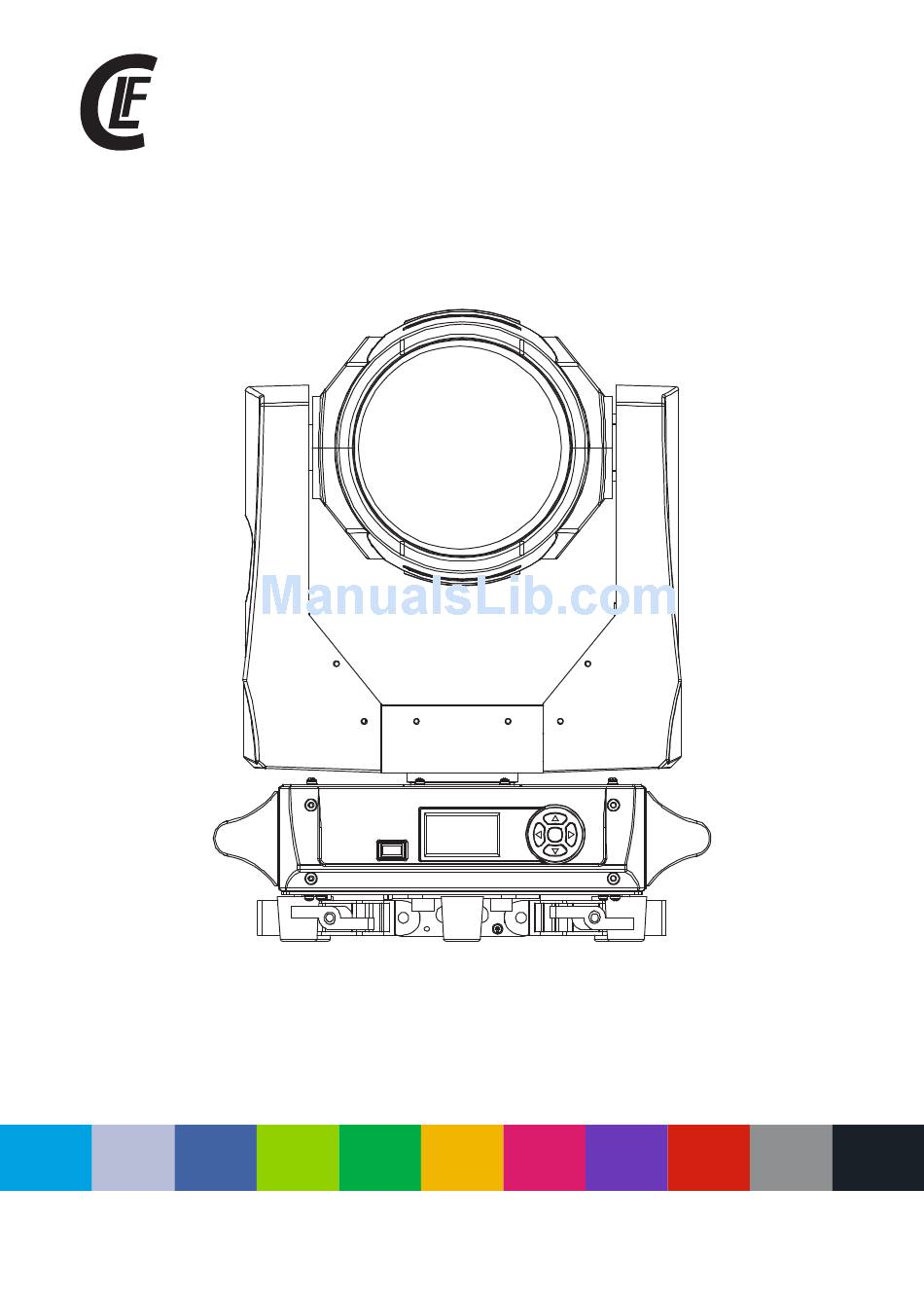

- Page 1 WWW.CLF-LIGHTING.COM V2.0 MARCH 2018...
-
Page 2: Table Of Contents
table of CONTENTS Dimensions Safety instruction Physical installation Control panel Menu navigation DMX Protocols DMX protocol CH14 DMX protocol CH16 DMX protocol CH16 PLUS Cleaning and maintanances Troubleshooting Circuit connection diagram Specifications Included items WWW.CLF-LIGHTING.COM... -
Page 3: Dimensions
Dimensions All dimensions are in millimeters 38 0 2 75 OPTIONAL HANGING BRACKET ART. NO. 160022 3 35 334.8188±0.0100 3 36 2 3 5 1 55 φ\f@??|b0|i0|c0|p2;155 18 8 4 8 3 4 2 4 3 77 1 20 WWW.CLF-LIGHTING.COM... -
Page 4: Safety Instruction
Safety Instruction WARNING! Read the safety precautions in this section before installing, powering, operating or servicing this product The following symbols are used to identify important safety information on the product and in this manual: DANGER! DANGER! WARNING! WARNING! WARNING! WARNING! WARNING! Safety hazard. - Page 5 Safety Instruction PROTECTION AGAINST ELECTRICAL SHOCK RNING! The connection must be made with a power supply system including efficient earthing (Class I appliance according to e safety precautions in this section before standard EN 60598-1). It is important to protect the supply lines of the fuxture from indirect contact and/or shorting to ng, powering, operating or servicing this earth by using appropriately sized residual current devices.
- Page 6 AORUN PHOTOMETRICS WWW.CLF-LIGHTING.COM WWW.CLF-LIGHTING.COM...
-
Page 7: Physical Installation
physical installation Installing the fixture - Fig. 3 The fixture can be installed on the floor resting on the special rubber feet or on a truss. The fixture can be installed on the floor resting on a special rubber feet or on a truss. WARNING: When the fixture is positioned on truss, the safety rope must be fitted. - Page 8 power end The N terminal is connected with the blue line. Ground The L terminal is connected with the brown line. ● Not more then 4 fixtures in a series. ● Connection to the mains must be carried out by a qualified electrical installer. WWW.CLF-LIGHTING.COM...
-
Page 9: Control Panel
DMX terminator is an XLR connector with a 120 1/2W resistor connected across pin 2 and 3. Which is then plugged into the output socket on the last projector in the chain refer to the connection. control panel AORUN Test AORUN... -
Page 10: Menu Navigation
menu navigation MAIN MENU MENU I MENU II MENU III DMX address Address: 001 - 512 Total: ****(h) Lamp hours Lamp open: ****(h) Temperatuur Board: 000.0 RDM UID Undistributed MOTOR UID Fan 1: 00.0V Fan 2: 00.0V Fan 1: 0000 RPM Fan speed / voltage Fan 2: 0000 RPM Fan3: 0000 RPM... - Page 11 menu navigation MAIN MENU MENU I MENU II MENU III Language English Open Backlight Auto close (15s) Normal Display Reversal Personal Rota. 180 Backlight blink Return (ESC) Return (ESC) 1. Color (***) 2. Shutter (***) 3. Dimmer (***) 4. Gobo (***) 5.
- Page 12 menu navigation MAIN MENU MENU I MENU II MENU III Dimmer 1 000-255 Dimmer 2 000-255 Focus 1 000-255 Focus 2 000-255 Color 000-255 Calibration Stat. gobo 000-255 Prism 1 000-255 Prism 2 000-255 Prism rota 000-255 Frost 000-255 Service Return (ESC) 000-255 Default...
-
Page 13: Dmx Protocols
dmx protocol (14 Ch) CHANNEL PERCENTAGE FUNCTION COLOR 0 - 4 0 - 1.56 White 5 - 8 1.96 - 3.14 White + red 9 - 12 3.53 - 4.71 13 - 17 5.10 - 6.67 Red + orange 18 - 21 7.06 - 8.24 Orange 22 - 25... - Page 14 CHANNEL PERCENTAGE FUNCTION STROBE 0 - 3 0 - 1.2 Closed 4 - 103 1.6 - 40.4 Slow-fast strobe 104 - 107 40.8 - 42.0 Open 108 - 157 42.4 - 61.6 Pulsation slow-fast, fast off, slow open 158 - 207 62.0 - 81.2 Pulsation slow-fast, fast open, slow off 208 - 212...
- Page 15 CHANNEL PERCENTAGE FUNCTION PRISM 0 - 63 0 - 24.7 Unused range 64 - 127 25 - 49.8 Prism 1 128 - 191 50.2 - 74.9 Prism 2 192 - 255 75.3 - 100 Prism 1 + prism 2 PRISM ROTATION Unused range 1 - 63 0.4 - 24.7...
-
Page 16: Dmx Protocol Ch16
dmx protocol (16 Ch) CHANNEL PERCENTAGE FUNCTION COLOR 0 - 4 0 - 1.56 White 5 - 8 1.96 - 3.14 White + red 9 - 12 3.53 - 4.71 13 - 17 5.10 - 6.67 Red + orange 18 - 21 7.06 - 8.24 Orange 22 - 25... - Page 17 CHANNEL PERCENTAGE FUNCTION STROBE 0 - 3 0 - 1.2 Closed 4 - 103 1.6 - 40.4 Slow-fast strobe 104 - 107 40.8 - 42.0 Open 108 - 157 42.4 - 61.6 Pulsation slow-fast, fast off, slow open 158 - 207 62.0 - 81.2 Pulsation slow-fast, fast open, slow off 208 - 212...
- Page 18 CHANNEL PERCENTAGE FUNCTION PRISM 0 - 63 0 - 24.7 Unused range 64 - 127 25 - 49.8 Prism 1 128 - 191 50.2 - 74.9 Prism 2 192 - 255 75.3 - 100 Prism 1 + prism 2 PRISM ROTATION Unused range 1 - 63 0.4 - 24.7...
-
Page 19: Dmx Protocol Ch16 Plus
dmx protocol (16 Ch plus) CHANNEL PERCENTAGE FUNCTION COLOR 0 - 4 0 - 1.56 White 5 - 8 1.96 - 3.14 White + red 9 - 12 3.53 - 4.71 13 - 17 5.10 - 6.67 Red + orange 18 - 21 7.06 - 8.24 Orange... - Page 20 CHANNEL PERCENTAGE FUNCTION STROBE 0 - 3 0 - 1.2 Closed 4 - 103 1.6 - 40.4 Slow-fast strobe 104 - 107 40.8 - 42.0 Open 108 - 157 42.4 - 61.6 Pulsation slow-fast, fast off, slow open 158 - 207 62.0 - 81.2 Pulsation slow-fast, fast open, slow off 208 - 212...
- Page 21 CHANNEL PERCENTAGE FUNCTION PRISM 0 - 63 0 - 24.7 Unused range 64 - 127 25 - 49.8 Prism 1 128 - 191 50.2 - 74.9 Prism 2 192 - 255 75.3 - 100 Prism 1 + prism 2 PRISM ROTATION Unused range 1 - 63 0.4 - 24.7...
-
Page 22: Cleaning And Maintanances
cleaning and maintenances • To ensure that the fixture works normally, always keep it clean. We recommend to clean the fans and ventilation inlet frequently. The lens and dichroic color filters should also be cleaned regularly to maintain an optimum light output. Do not use any type of chemicals to clean the dichroic color filters, it will damage the fixture. -
Page 23: Circuit Connection Diagram
circuit connection diagram WWW.CLF-LIGHTING.COM WWW.CLF-LIGHTING.COM 22.0... -
Page 24: Specifications
specifications Osram Sirius HRI 330W XL Lamp Color temperature 7500K Average life ±1500h Motors 12 ultra quiet motors Control DMX 512 & RDM Color 14 colors & open Gobo Open, 11 Gobo & 3 animation ranges Strobe Double lens strobe (0.5 - 9 times / second) Dimmer 0 - 100% linear adjustment Prism... -
Page 25: Included Items
Lamp power 330W Total power 450W Voltage / frequency AC100V - 240V - 50/60Hz Netto weight 18,8kg Size 380x280x529mm Channel 14 / 16 / 16+ CH X / Y travel 540° / 250° X / Y resolution 2,11° / 0,98° X / Y speed 2,7S / 1,6S Beam angle... - Page 26 CLFLIGHTING WWW.CLF-LIGHTING.COM...
