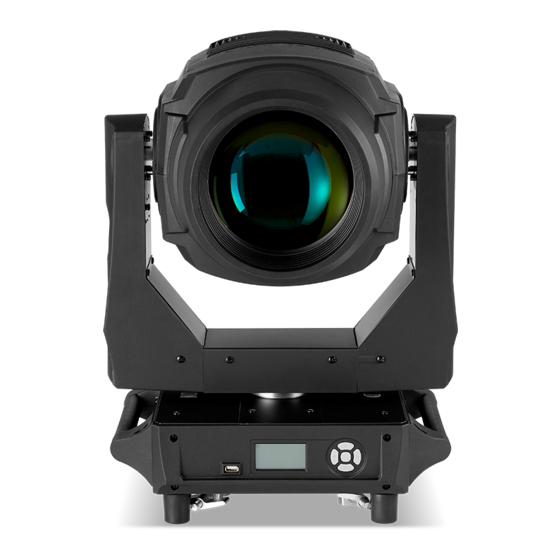

orion
manual
WWW.CLF-LIGHTING.COM
V1.0 OCTOBER 2018

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Orion and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for CLF Lighting Orion

Summary of Contents for CLF Lighting Orion

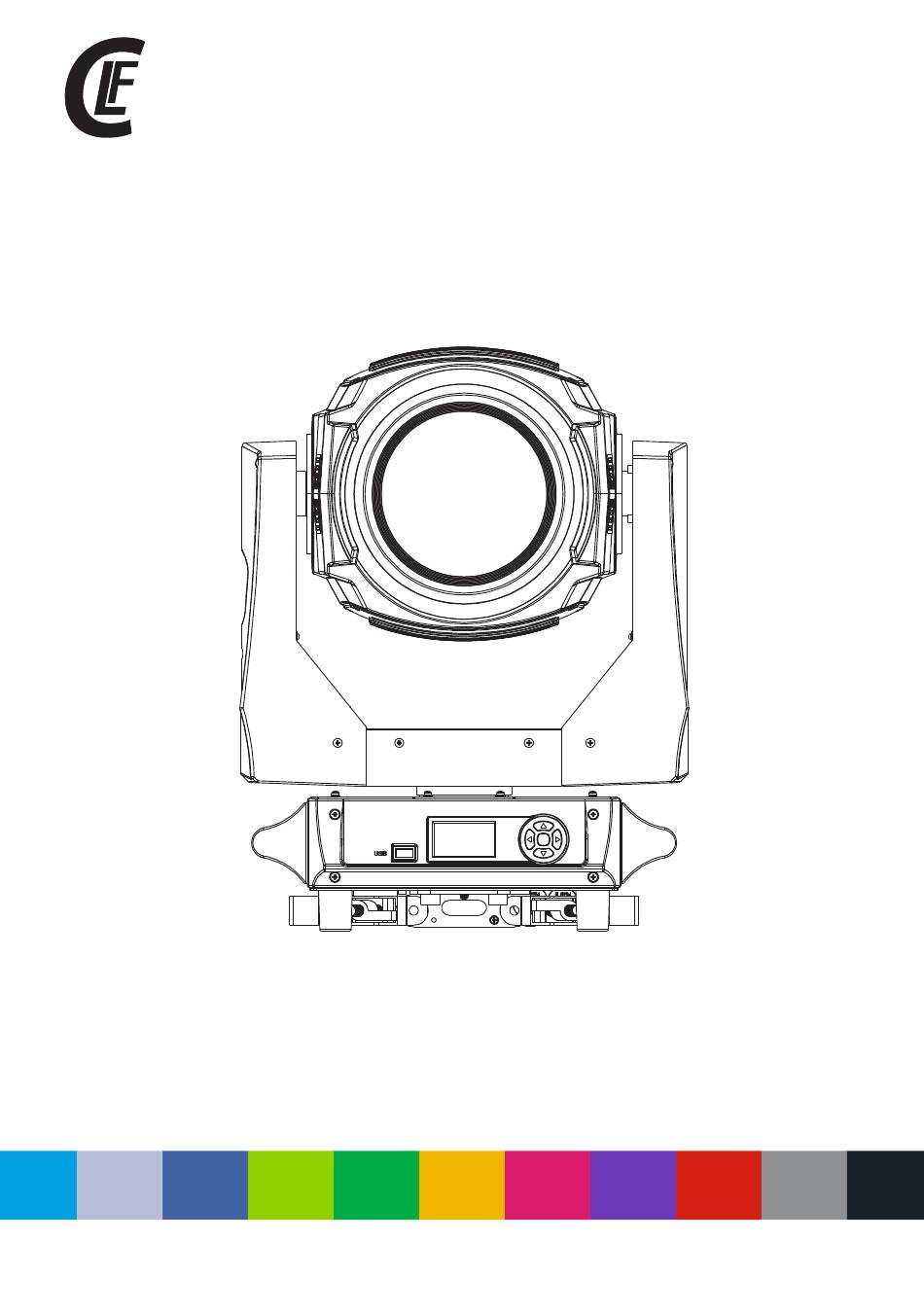

  • Page 1 WWW.CLF-LIGHTING.COM V1.0 OCTOBER 2018...

  • Page 2: Table Of Contents

    table of CONTENTS Dimensions Safety Instruction Fixture overview Introduction AC Power Power voltage Power cables Relaying power to other devices Data link Tips for reliable data transmission Physical installation Fastening the fixture to a flat surface Outdoor IP-rated fixtures Condensation/moisture inside housing Fixtures temperature specification Setup Control panel and menu navigation...

  • Page 3: Dimensions

    Dimensions All dimensions are in millimeters OPTIONAL HANGING BRACKET ART. NO. 160022 460,29 o r i o n WWW.CLF-LIGHTING.COM...

  • Page 4: Safety Instruction

    Safety Instruction WARNING! Read the safety precautions in this section before installing, powering, operating or servicing this product. The following symbols are used to identify important safety information on the product and in this manual: DANGER! DANGER! WARNING! WARNING! WARNING! WARNING! Safety hazard.
  • Page 5 PROTECTION FROM BURNS AND FIRE • The exterior of the fixture becomes hot during use. Avoid contact by persons and materials. Allow the fixture to cool for at least 5 minutes before handling. • Keep all combustible materials (e.g. fabric, wood, paper) at least 1 metres away from the fixture. •...

  • Page 6: Fixture Overview

    Fixture overview main switch AC MAINS POWER INPUT 5P DMX OUTPUT AC MAINS POWER OUTPUT 3P DMX INPUT 3P DMX INPUT 5P DMX INPUT WWW.CLF-LIGHTING.COM...

  • Page 7: Introduction

    Introduction feature packed hybrid luminaire ■ CMY Color Mixing System ■ Fixed Color Wheel ■ 2 Gobo Wheels ■ 3 + 1 Double Wheel Prisms ■ 2 Level Frost Effect ■ Zoom 2° - 42° ■ Effect wheel Using for the first time Warning! Read “Safety Information”...

  • Page 8: Power Cables

    Power cables Power input and throughput cables must be rated 16A minimum, have three conductors 1.5 mm² (16 AWG) minimum conductor size and an outer cable diameter of 5 - 15 mm. Cables must be hard usage type (SJT or equivalent) and heat- resistant to 90°C minimum. In the EU the cable must be HAR approved or equivalent.

  • Page 9: Physical Installation

    Physical installation Warning! The fixture must be either fastened to a flat surface such as a stage or wall, or clamped to a truss or similar structure in any orientation using a rigging clamp. Warning! If the fixture can cause injury or damage if it falls, attach an approved safety cable to one of the safety cable attachment points on the base (see “Fixture overview”).

  • Page 10: Outdoor Ip-Rated Fixtures

    Outdoor IP-rated fixtures CLF products are applied to official classified IP norm levels. For this product the IP rate is IP65 when using the covers for the chassis parts. IP65 means according classified norm: shielded against dust and pressurized water from any side. Typical use for outdoor rated stage events with normal weather acceptance.

  • Page 11: Setup

    Setup Warning! Read “Safety Information” before installing, powering, operating the fixture. Control panel and menu navigation The onboard control panel and backlit graphic display are used to set the fixture’s DMX address, configure individual fixture settings (personality), read out data and execute service utilities. See “Onboard control menus” for a complete list of menus and commands. Using the control buttons •...

  • Page 12: Onboard Control Menus

    Onboard control menus Main menu Menu level 2 Menu level 3 Remark DMX Address 001 - 512 Power on: *** H Total Time Lamp on: *** H E-ballast: ***,* Temperature Tempboard: ***,* RDM UID MOTOR UID 1.U-Fan 1:00.0V 2.Mid-Fan :00.0V 3.L_Fan3&4:00.0V 4.L_Fan2:00.0V 5.L_Fan1:0000R...
  • Page 13 Main menu Menu level 2 Menu level 3 Remark 21.PrismMacro *** 22.Macro Rot *** 23.Frost *** 24.Zoom *** 25.Zoom Fine *** 26.Focus *** DMX Live 27.Focus Fine *** 28.Focus 2 *** 29.AutoFocus *** Information 30.Shutter *** 31.Dimmer *** 32.DimmerFine *** 33.Hotspot *** XY: V*.** Color: V*.**...
  • Page 14 Main menu Menu level 2 Menu level 3 Remark 1.Pan *** 2.Pan Fine *** 3.Tilt *** 4.Tilt Fine *** 5.P/T Speed *** 6.Functions*** 7.Cyan *** 8.Magenta *** 9.Yellow *** 10.ColorWheel *** 11.Color Fine *** 12.Effect *** 13.Effect Rot *** 14.Static Gob *** 15.Rot Gobo *** 16.Gobo Rot *** 17.Prism 1 ***...
  • Page 15 Main menu Menu level 2 Menu level 3 Remark System reset Pan/Tilt reset Gobo reset Color reset Reset Manual Control Dimmer reset Zoom reset Effect reset Return(ESC) Return(ESC) Error list Keep List Clean error Empty List Tilt Dimmer Effect Focus Zoom Color Stat Gobo...
  • Page 16 Main menu Menu level 2 Menu level 3 Remark Lamp Test P/T STEP *** Test effect STEP *** Test Test all STEP *** Return(ESC) Normal Rotate display Rotate 180 WWW.CLF-LIGHTING.COM...

  • Page 17: Dmx Protocol

    DMX protocol CHANNEL FUNCTION VALUE SETTING REMARK 0-255 Pan Fine 0-255 Pan Fine Tilt 0-255 Tilt Tilt fine 0-255 Tilt fine Standard mode (0=default) P/T speed 0-255 Speed from max. to min. Reserved (0=default) 10-14 Reserved 15-19 Reserved 20-24 LCD display On 25-29 LCD display Off 30-34...
  • Page 18 CHANNEL FUNCTION VALUE SETTING REMARK 160 - 169 Gobo wheels reset 170 - 179 Dimmer/Shutter reset 180 - 189 Zoom/focus/frost/prism wheels reset 190 - 199 Effect wheel reset 200 - 209 Total reset Special functions 210 - 229 Reserved 230 - 239 Lamp Off 240 - 244 Reserved...
  • Page 19 CHANNEL FUNCTION VALUE SETTING REMARK Color wheel 0 - 255 Fine positioning (0=default) fine 0-39 No function (0=default) 40-127 Index Ramping from open to full position 128-170 Effect ( max--->min. speed) wheel Ramping from open to half position 171-213 ( max. --->min. speed) Ramp.
  • Page 20 CHANNEL FUNCTION VALUE SETTING REMARK 160-167 Gobo 9 shake slow to fast 168-175 Gobo 10 shake slow to fast 176-183 Gobo 11 shake slow to fast 184-191 Gobo 12 shake slow to fast Static Gobo 192-199 Gobo 13 shake slow to fast Wheel 200-201 Open/hole...
  • Page 21 CHANNEL FUNCTION VALUE SETTING REMARK 0-127 Gobo indexing Rotating No rotation gobo, wheel 128-187 gobo rotation CW from fast to slow indexing 188-195 No rotation and rotation 196-255 Gobo rotation CCW slow to fast Open position/hole (0=default) 4-15 Prism 1 - Linear index 16-27 Prism 2 - 4-facet index Prism...
  • Page 22 CHANNEL FUNCTION VALUE SETTING REMARK 125-135 Prism macro rotation 5 136-146 Prism macro rotation Prism 147-157 Prism macro rotation 7 macro 158-168 Prism macro rotation 8 169-179 Prism macro rotation 9 180-190 Prism macro rotation 10 0 - 255 Pattern indexing No rotation Prism macro indexing...
  • Page 23 CHANNEL PERCENTAGE FUNCTION 0-15 Autofocus Off 16-55 10 metres 56-95 15 metres Auto focus 96-135 20 metres select 136-175 30 metres 176-215 40 metres 216-255 50 metres 0 - 31 Shutter closed 32 - 63 Shutter open 64 - 95 Strobe-effect from slow to fast 96 - 127 Shutter open...

  • Page 24: Gobo Overview

    gobo overview WWW.CLF-LIGHTING.COM...

  • Page 25: Photometrics

    Orion distance, spot diameter and illumination diagram (beam mode) Orion distance, spot diameter and illumination diagram (spot mode) WWW.CLF-LIGHTING.COM...

  • Page 26: Circuit Connection Diagram

    circuit connection diagram 100V~240V- 50/60Hz Electronic ballast Lamp 28V IN 28V OUT P-7QD P-ZJ P-6QD P-8QD WWW.CLF-LIGHTING.COM...

  • Page 27: Specifications

    Specifications Power Input voltage & rate AC100-240V~, 50/60HZ Standby power 498W Nominal total power consumption (at nominal voltage 630W 230V) Typical current (at nominal voltage 230V) 2.7A Cos φ 0.972 Power plug type Seetronic Powercon TRUE Source Lamp Osram Sirius HRI 471W SN Expected Lifetime 1500 hours CRI level...
  • Page 28 Specifications MIN ambient temp (Ta min) Ta min =-20° MAX Housing temp (ta=25°C) Tc=100°C MAX Housing temp (ta=40°C) Tc=100°C Control Control protocol DMX512 DMX Channels DMX input connection 3-pin and 5-pin Data input (artnet, SACN) Hardware Interface LCD Display Software upload method Installation IP rating IP20...
  • Page 29 CLFLIGHTING WWW.CLF-LIGHTING.COM...
