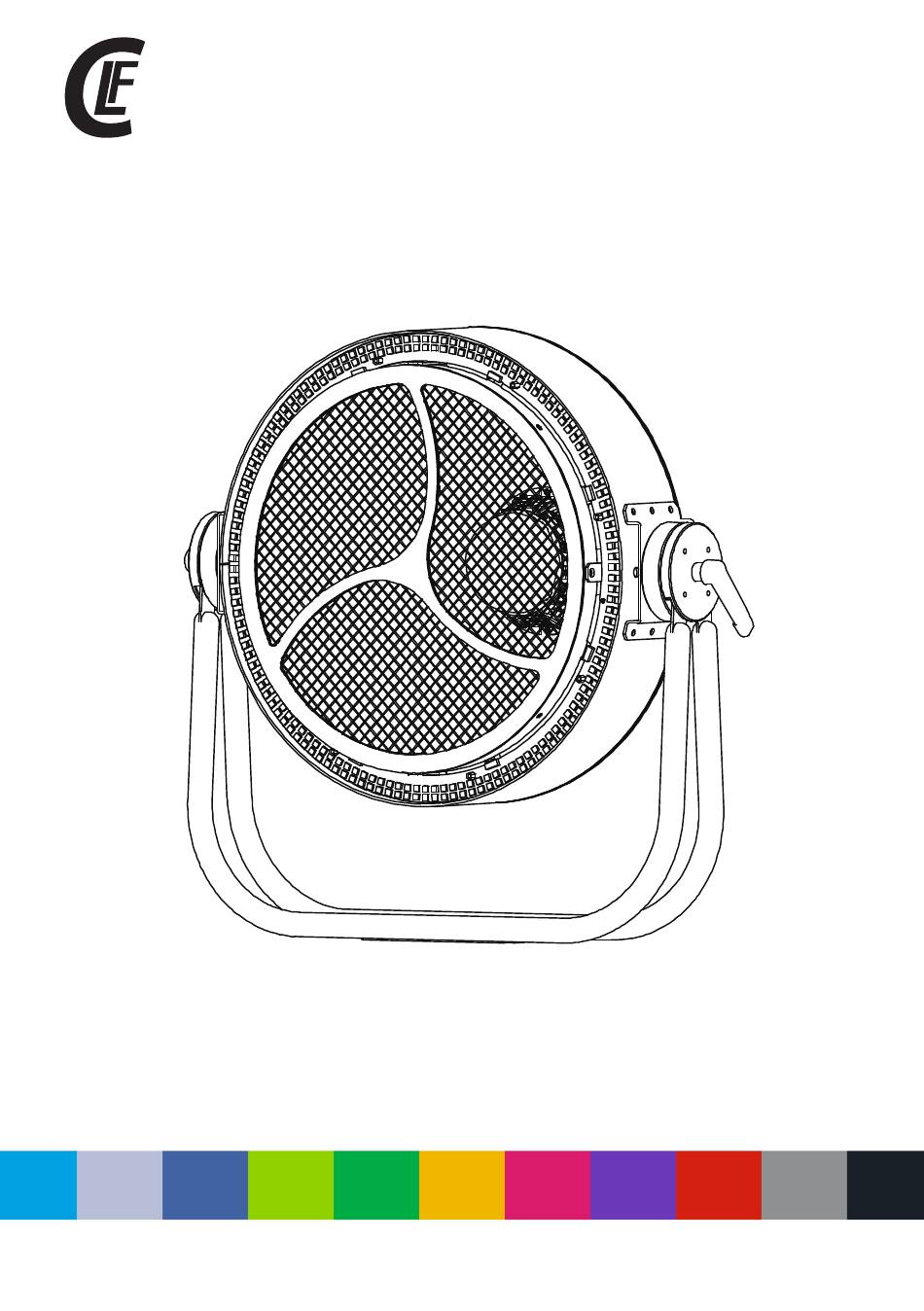

- Page 1 Apollo manual WWW.CLF-LIGHTING.COM V1.0 AUGUST 2018...
-
Page 2: Table Of Contents
table of CONTENTS Dimensions Safety Instruction Fixture overview Introduction AC Power Power voltage Power cables Relaying power to other devices Data link Tips for reliable data transmission Physical installation Fastening the fixture to a flat surface Outdoor IP-rated fixtures Fixtures temperature specification Setup Control panel and menu navigation DMX address setting... -
Page 3: Dimensions
Dimensions All dimensions are in millimeters Ø 385 WWW.CLF-LIGHTING.COM... -
Page 4: Safety Instruction
Safety Instruction WARNING! Read the safety precautions in this section before installing, powering, operating or servicing this product. The following symbols are used to identify important safety information on the product and in this manual: DANGER! DANGER! WARNING! WARNING! WARNING! WARNING! WARNING! Safety hazard. - Page 5 PROTECTION FROM BURNS AND FIRE • The exterior of the fixture becomes hot during use. Avoid contact by persons and materials. Allow the fixture to cool for at least 5 minutes before handling. • Keep all combustible materials (e.g. fabric, wood, paper) at least 100 mm away from the fixture. •...
-
Page 6: Fixture Overview
Fixture overview LCD display Control buttons AC mains power output 5P DMX input apollo AC mains power input 5P DMX output WWW.CLF-LIGHTING.COM... -
Page 7: Introduction
Introduction RETRO STYLE LED Fixture Affordable lighting essential ■ RGB center effect ■ Warm white center effects ■ Outer RGB ring ■ PowerCON TRUE 1 in and out ■ 5 pin DMX Using for the first time Warning! Read “Safety Information” before installing, powering, operating or servicing the fixture. Before applying power to the fixture: Check that the local AC mains power source is within the fixture’s power voltage and frequency ranges. -
Page 8: Power Cables
Power cables Power input and throughput cables must be rated 16A minimum, have three conductors 1.5 mm² (16 AWG) minimum conductor size and an outer cable diameter of 5 - 15 mm. Cables must be hard usage type (SJT or equivalent) and heat- resistant to 90°C minimum. In the EU the cable must be HAR approved or equivalent. -
Page 9: Physical Installation
Physical installation Warning! The fixture must be either fastened to a flat surface such as a stage or wall, or clamped to a truss or similar structure in any orientation using a rigging clamp. Warning! If the fixture can cause injury or damage if it falls, attach an approved safety cable to one of the safety cable attachment points on the base (see “Fixture overview”). -
Page 10: Outdoor Ip-Rated Fixtures
Outdoor IP-rated fixtures CLF products are applied to official classified IP norm levels. For this product the IP rate is IP20 when using the covers for the chassis parts. IP65 means according classified norm: shielded against dust and pressurized water from any side. Typical use for outdoor rated stage events with normal weather acceptance. -
Page 11: Setup
Setup Warning! Read “Safety Information” before installing, powering, operating the fixture. Control panel and menu navigation The onboard control panel and backlit graphic display are used to set the fixture’s DMX address, configure individual fixture settings (personality), read out data and execute service utilities. See “Onboard control menus” for a complete list of menus and commands. Using the control buttons •... -
Page 12: Control Mode
Control mode DMX control mode is selected in the CONTROL MODE menu. The fixture can be controlled with 6 DMX control modes: 7 ch 16ch 51ch 55ch 64ch Master dimmer Master strobe Effect Dimmers Strobes Dimmer speed RGB control Center RGB segments WWW.CLF-LIGHTING.COM... -
Page 13: Control Panel
control panel DMX Address 1 - 511 2 CH 7 CH 16 CH Control Mode 51 CH 55 CH 64 CH Display 30 Sec DMX Hold Normal Dimmer Speed Smooth Personality Regulated Silent 2 Fan Speed Silent 1 Full Center Fan Test Fan Test Ring Fan Test LED Test... -
Page 14: Dmx Protocol 2Ch, 7 Ch & 16 Ch
DMX protocol 2 CH FUNCTION VALUES DESCRIPTION Master 000 - 255 0 - 100% 000 - 041 No Fucntion 042 - 083 Effect 1 084 - 125 Effect 2 Flow effect 126 - 167 Effect 3 168 - 209 Effect 4 210 - 255 Effect 5 7 CH... -
Page 15: Dmx Protocol 51 Ch
DMX protocol 16 CH FUNCTION VALUES DESCRIPTION Center Warm White 000 - 255 0 - 100% Center Amber 000 - 255 0 - 100% Back Warm White 000 - 255 0 - 100% 000 - 010 No Function Central Strobe 011 - 240 Slow to fast 241 - 255... -
Page 16: Dmx Protocol 55 Ch
DMX protocol 51 CH FUNCTION VALUES DESCRIPTION Inner Blue 5 000 - 255 0 - 100% Inner Red 6 000 - 255 0 - 100% 000 - 255 0 - 100% Inner Green 6 Inner Blue 6 000 - 255 0 - 100% Inner Red 7 000 - 255... - Page 17 DMX protocol 55 CH FUNCTION VALUES DESCRIPTION Inner Red 2 000-255 0 -100% Inner Green 2 000-255 0 -100% 000-255 0 -100% Inner Blue 2 Inner Red 3 000-255 0 -100% Inner Green 3 000-255 0 -100% Inner Blue 3 000-255 0 -100% Inner Red 4...
-
Page 18: Dmx Protocol 64 Ch
DMX protocol 64 CH FUNCTION VALUES DESCRIPTION Master 000 - 255 0 - 100% All LED Strobe 000 - 255 Slow to fast 000 - 041 No function 042 - 083 Effect 1 084 - 125 Effect 2 Flow Effect 126 - 167 Effect 3 168 - 209... - Page 19 DMX protocol 64 CH FUNCTION VALUES DESCRIPTION Outer Red 7 000 - 255 0 - 100% 000 - 255 0 - 100% Outer Green 7 000 - 255 0 - 100% Outer Blue 7 Outer Red 8 000 - 255 0 - 100% Outer Green 8 000 - 255...
-
Page 20: Exploded View
Exploded view Description Part number Description Part number Frost cover ring CLF-21-011 Support bracket reflector CLF-21-029 LED PCB outer ring CLF-21-001 Support plate back housing CLF-21-025 Support frame LED PCB CLF-21-040 Driver board center dot CLF-21-007 Heatsink front ring CLF-21-039 Cable support back frame CLF-21-030 Fixing plate knob... -
Page 21: Specifications
Specifications Power Input voltage & rate 100-240V, 50/60hZ Standby power 8,3W "Nominal total power consumption (at nominal voltage 230V) 400W Typical current (at nominal voltage 230V) 1,74A Power plug type PowerCON TRUE 1 Configuration LED color RGB and Warm White / Amber LED CRI level Center LED’s warm white + amber: 87,8 Quantity of LED... - Page 22 Specifications Housing Safety attachment point Physical Net product weight 8,25 KG Machine dimensions - length 472mm Machine dimensions - depth 271mm Machine dimensions - height 494mm Accessories Included items Power and signal cable, manual Approvals Approved certifications CE/RoHS WWW.CLF-LIGHTING.COM...
