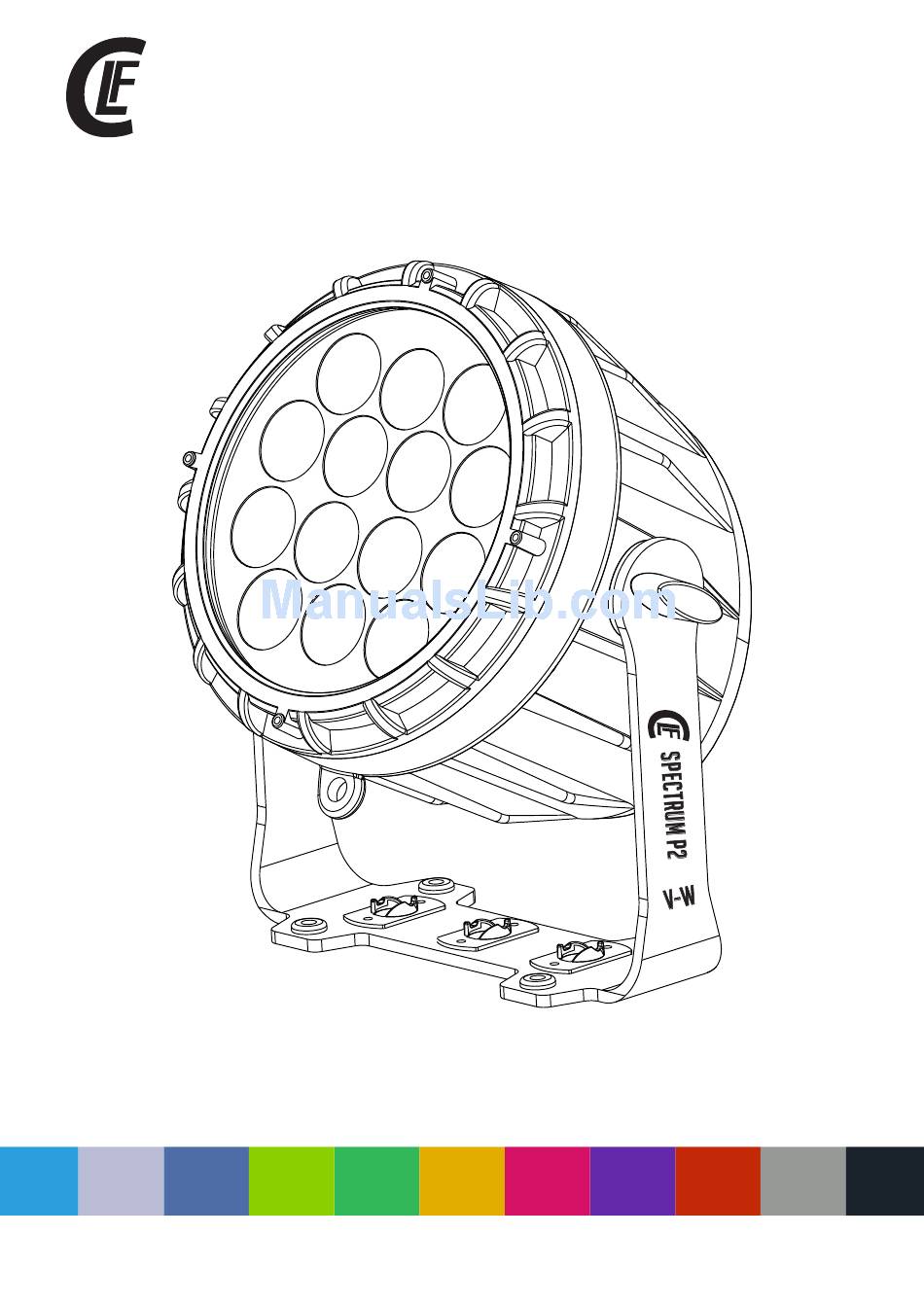

- Page 1 SPECTRUM P2 VARI-WHITE manual WWW.CLF-LIGHTING.COM V1.0 May 2018...
-
Page 2: Table Of Contents
table of CONTENTS Dimensions Safety Information Fixture overview Introduction AC power Power voltage Power cables Relaying power to other devices Data link Tips for reliable data transmission Physical installation Fastening the fixture to a flat surface Setup Control panel and menu navigation DMX address setting Control Mode Static Color options... -
Page 3: Dimensions
Dimensions All dimensions are in millimeters WWW.CLF-LIGHTING.COM... -
Page 4: Safety Information
WARNING! Read the safety precautions in this section before installing, powering, operating or servicing this product The following symbols are used to identify important safety information on the product and in this manual: DANGER! DANGER! WARNING! WARNING! WARNING! WARNING! WARNING! Safety hazard. - Page 5 Do not expose the fixture to rain or moisture Refer any service operation not described in this manual to a qualified technician. Socket outlets used to supply the fixture with power or external power switches must be located near the fixtures and easily accessible so that the fixtures can easily be disconnected from power.
-
Page 6: Fixture Overview
fixture overview 5P DMX input 5P DMX output 3P DMX input (optional) 3P DMX output (optional) # CLF-13-453 # CLF-13-454 SPECTRUM AC mains power AC mains power input throughput LCD Display Control buttons VARI-WHITE Safety cable attachment point G Clamp with Quicklock # 875760 (Optional) Omega bracket with... -
Page 7: Introduction
Introduction Outdoor C+W LED Fixture Affordable lighting essential Unique bracket design ¢ Touring proof ¢ Smooth Cool white + Warm white mixing ¢ Ip65 rating ¢ Silent operation ¢ Smooth projection ¢ ® Powercon true 1 in & out ¢ RDM ready ¢... -
Page 8: Power Cables
power cables Power input and throughput cables must be rated 20A minimum, have three conductors 1.5 mm² (16 AWG) minimum conductor size and an outer cable diameter of 5 - 15 mm. Cables must be hard usage type (SJT or equivalent) and heat- resistant to 90°C minimum. -
Page 9: Physical Installation
Physical installation Warning! The fixture must be either fastened to a flat surface such as a stage or wall, or clamped to a truss or similar structure in any orientation using a rigging clamp. Warning! If the fixture can cause injury or damage it if falls, attach an approved safety cable to one of the safety cable attachment points on the base (see “Fixture overview”... -
Page 10: Setup
SETUP Warning! Read “Safety Information” on page 2 before installing, powering, operating the fixture. Control panel and menu navigation The onboard control panel and backlit graphic display are used to set the fixture’s DMX address, configure individual fixture settings (personality), read out data and execute service utilities. See “Onboard control menus”... -
Page 11: Control Mode
Control mode DMX control mode is selected in the CONTROL MODE menu. The fixture has 5 DMX control modes: Dimmer Cool white Warm white Strobe Fade WWW.CLF-LIGHTING.COM... -
Page 12: Static Color Options
Static Color options There are three options for static color: 1. FIXED Color Several options from combinated warm white and cool white values. Use Up and Down to scroll through the options. Cool White Warm white CW+WW 2. CCT Easy color choice between 2800K (warm white) to 6000K (cood white) 2800 K 4500 K 3200 K... -
Page 13: Auto Show
Auto show which are working without any DMX console. Hit [ENTER] to adjust the The auto function gives 3 auto programs speed of the Auto program from 1-3. Auto program 1 1) Auto 1 Auto program 2 2) Auto 2 Auto program 3 3) Auto 3 Master/Slave... -
Page 14: Dimmer Mode
DIMMER MODE provides five dimming options (see picture below): DMX % DMX % DMX % LINEAR SQUARE LAW INVERSE SQUARE LAW DMX % DMX % Up DMX % Down S-CURVE SPECIAL LINEAR – the increase in light intensity appears to be linear as DMX value is increased. SQUARE LAW –... -
Page 15: Dmx Protocols
dmx protocols Function Value Setting Remark Cool white 0 - 100 Warm white 0 - 100 Function Value Setting Remark Dimmer 0 - 100 Cool white 0 - 100 Warm white 0 - 100 Function Value Setting Remark Dimmer 0 - 100 Cool white 0 - 100 Warm white... - Page 16 dmx protocols 6 CH Function Value Setting Remark Dimmer 0 - 100 Cool white 0 - 100 Warm white 0 - 100 000 - 009 No function 010 - 255 6000K - 2800K 000 - 024 Shutter open Strobe 1 (fast → slow) 025 - 064 065 - 069 Shutter open...
-
Page 17: Software Type
Onboard control menus Main Menu Menu level 2 Menu level 3 Remark DMX ADDRESS <001> Default 1. Cool white 2.Warm white 1. Dimmer, 2. Cool white , 3. Warm white 1. Dimmer, 2. Cool white , 3. Warm white , 4.CCT. Default : 5CH CONTROL MODE 1. -
Page 18: Exploded View
exploded view Description Part Number Front Cover ring CLF-14-003 Rubber glass ring CLF-14-010 Tempered front glass CLF-14-013 CLF-19-002 Lens kit LED board CLF-19-006 LED board radiator CLF-14-002 CLF-14-016 CLF-14-017 Fan cover CLF-14-015 Power supply Power supply support bracket CLF-14-007 Case body CLF-14-001 CLF-19-005 Display board... -
Page 19: Specifications
Specifications Physical Length 260mm Width 180mm Height 295mm Weight 3.8 kg without accessories Dynamic Efects beam angle 15° Optics Light source 14 pcs high-power LED (cool white + Warm white) Control and Programming Control DMX512-A DMX channels 2 / 3 / 4 / 5 / 6 Setting and addressing Control panel with backlit LCD graphic display Protocol... - Page 20 SPECTRUM P2 VARI-WHITE CLFLIGHTING WWW.CLF-LIGHTING.COM...
