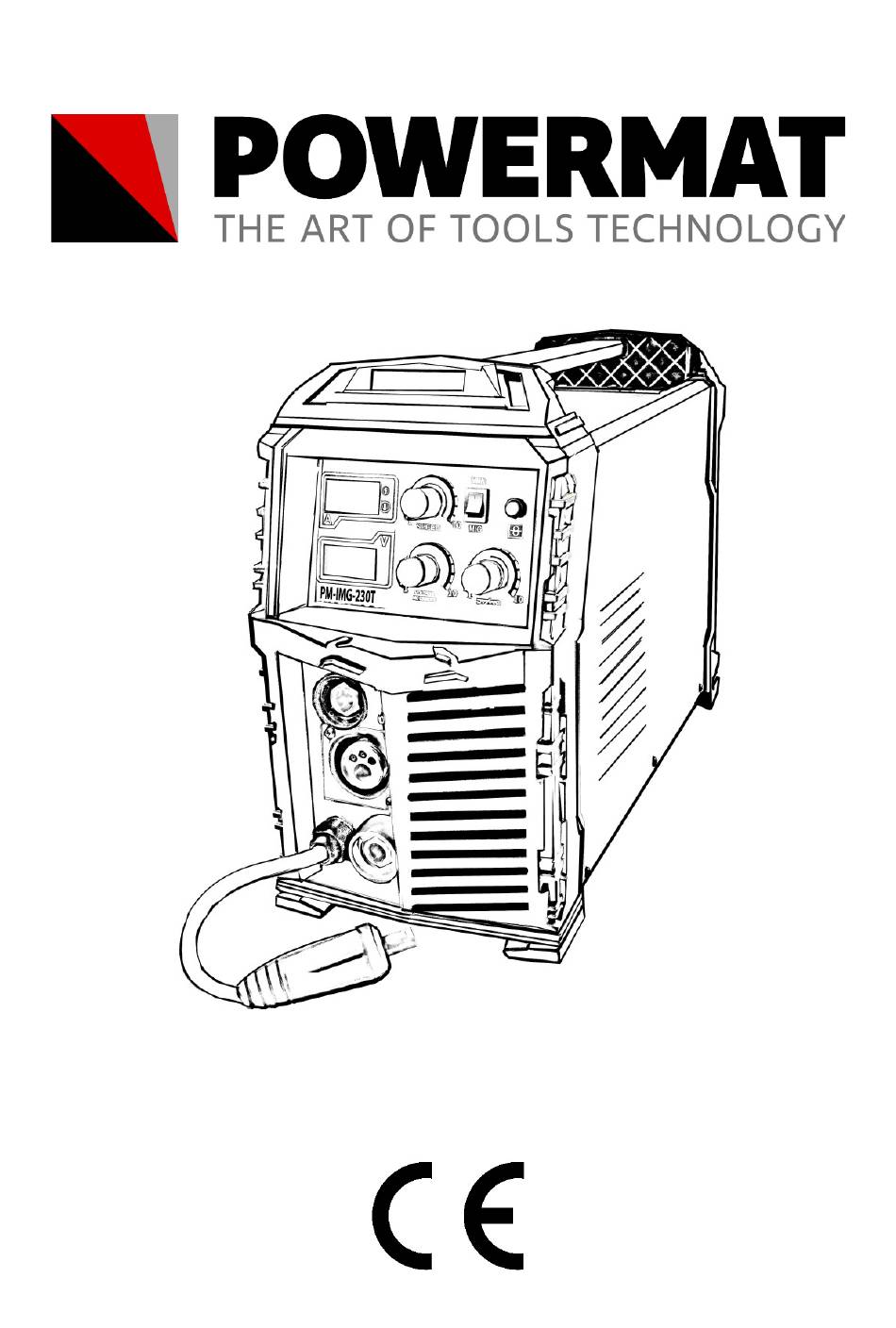

- Page 1 USER MANUAL inverter welder PM-IMG-230T ORIGINAL INSTRUCTIONS...
-
Page 2: Table Of Contents
Table of Contents SYMBOLS WARNING / INFORMATION ..................3 APPLICATION EQUIPMENT ......................... 3 TECHNICAL DATA ..........................3 SAFETY ........................... 4 GENERAL THOUGHTS ............................4 Safety during welding ....................4 ..Electromagnetic field .......... - Page 3 MAINTENANCE AND SERVICE ........................22 Maintenance ............................22 Malfunctions welding ........................ 23 Service ..............................24 REMOVAL OF USED ......................24 COMPANY INFORMATION ..........................24 DECLARATION OF CONFORMITY ........................25...
-
Page 4: Symbols Warning / Information
For resulting from improper use damage or injuries responsibility of the user / operator and not the manufacturer. Producer in order to improve its products reserves the right to possibility of differences in the above mentioned product. TECHNICAL DATA Model: PM-IMG-230T Welding method MIG / MAG Power 230V / 50Hz... -
Page 5: Safety
SECURITY Before starting work carefully to become familiar with the manual. Keep them for future reference. For damages resulting from failure to observe these instructions, the manufacturer is not liable. The greatest danger is prohibited to perform the following steps: and) Welders use for purposes other than those described in the manual. - Page 6 Electromagnetic may interfere with pacemakers. Welding cables should be arranged in parallel, as close as possible to each other. SPARKS CAN CAUSE FIRE: Sparks generated during welding can cause fire, explosion and burns SPARKS CAN CAUSE FIRE: Sparks generated during welding can cause fire, explosion and burns unprotected skin.
-
Page 7: Electromagnetic Field
STATIC DISCHARGE MAY DAMAGE THE PRINTED CIRCUIT: Before touching the printed circuit STATIC DISCHARGE MAY DAMAGE THE PRINTED CIRCUIT: Before touching the printed circuit boards and parts of the electrical system should be assumed grounding wrist-strap. Use of antistatic packaging is storing and transporting electrical components. READ INSTRUCTIONS: Carefully read the manual and follow the information contained therein. -
Page 8: Description Of The Device
DESCRIPTION OF THE DEVICE PM-MIG-230T The extension wire Knob inductance (MIG) Socket polarity (-) Mode switch MIG / MMA / TIG-Lift Feed speed of a wire (MIG) MIG welding socket Ammeter 10. Socket polarity (+) 10. Socket polarity (+) 5. voltmeter 5. -
Page 9: Description Of Symbols On The Label
ABOUT MARKING THE PIS LABEL ABOUT MARKING THE PIS LABEL ABOUT MARKING THE PIS LABEL Current (DC) Symbol single phase alternating current (AC) of the rated frequency 50Hz and 60Hz operating frequency. Nominal input voltage (AC) Nominal input voltage (AC) Nominal input voltage (AC) Maximum input current Maximum input current... -
Page 10: Welding Service
Warning! It is forbidden to use the device or completely dismantled the housing removed, it may cause electric shock Warning! It is forbidden to use the device or completely dismantled the housing removed, it may cause electric shock and lead to severe injury. Do not touch the energized equipment. Before installing the unit, check electrical network to which the device is connected meets the requirements placed on the nameplate and that it meets all local and national standards. - Page 11 12. LED overheating ( OC) lights up in case of overheating. In this case 12. LED overheating ( OC) lights up in case of overheating. In this case 12. LED overheating ( OC) lights up in case of overheating. In this case 12.
-
Page 12: Selection Of Mig / Mma / Tig-Lift
drive. Excessive force causing increase in the resistance of a wire, which can cause deformation and machining. Connection of protective gas 1. The bottle of carefully selected protective gas must be set on the shelf and semi-automatic 1. The bottle of carefully selected protective gas must be set on the shelf and semi-automatic secured by a chain. -
Page 13: Mig
15. Set the mode switch position MIG welding. 15. Set the mode switch position MIG welding. 16. A suitable set operating parameters for welding. 16. A suitable set operating parameters for welding. 17. Start the welding process. 17. Start the welding process. MIG MIG MIG MIG - welding process, wherein the shielding gas used is chemical inert gas, for example. -
Page 14: Mig
During welding, the torch moves the welding wire, which is constantly melting in an electric arc. The fluid material of the welding wire connected to a combination of material to form a liquid weld pool. When moving the welding torch, lake follow, to solidify at the edges and creating a durable combination of materials. - Page 15 Among the many possible methods of carrying the torch frequently used zig-zag movements pushed, which are aimed at keeping the bow in the direction of welded components. Method Front, which is pushing the burner is better than the method from the rear (pulling burner) due to increased shielding gas coverage, and introduces joint on each edge of the materials to be joined, resulting in a flat and neat seam.
- Page 16 oxidising recommended only welding steel WHAT WHAT down low carbon oxidising Recommended only for welding carbon steel and low-alloy Ar + 20 - 50% CO2 steel oxidising Recommended only for welding carbon steel and low-alloy Ar + 10% CO Ar + 10% CO Ar + 10% CO Ar + 10% CO 5% O2...
-
Page 17: Basic Information For Welding Mma
6. After welding is complete, move the electrode from the work piece and set 6. After welding is complete, move the electrode from the work piece and set OFF switch in the OFF position. WARNING! The arc starts at the moment when the welding electrode to the welding point touch and then will be moved to a distance the length of the arc. -
Page 18: Welding Electrodes In Practice
Setting the welding current is dependent on the diameter of the electrode size and thickness of the welded material and the welding position. When welding materials with the same thickness, materials with a small area is used lower electrode and a lower welding current than for larger surfaces. Thin metal requires less power, and smaller electrode requires less power. -
Page 19: Electric Arc Welding
Electric arc welding Fig. 4 Figure 4. Presents phenomena occurring during arc welding, which is greatly enlarged what is seen by the welder. Figure 4. Presents phenomena occurring during arc welding, which is greatly enlarged what is seen by the welder. Curved space is shown in a central position in the picture. -
Page 20: Correct Welding Position
differences in the types of buffer zones to gain knowledge select the right electrode for the job. When choosing the electrodes need to consider: 1. Implementation example. Steel, mild steel and stainless steel. 1. Implementation example. Steel, mild steel and stainless steel. 2. -
Page 21: Proper Arc Length
Proper arc length Arc length is the distance from the end of the electrode to the workpiece. Once the arc is stabilized setting proper arc length is very important. Arc should have a length of approximately 1.5 - 3mm. Due to the burning of the electrodes must be kept adjust the length of the arc. -
Page 22: Key Characteristics For Welding Tig
most sheets, plates, pipes, rolling, angles, beams. This type of steel can usually pospawać without special precautions. However, some types of steel contain large amounts of carbon. Such steels are most commonly used in the connecting rods, knives and cutting grinding, axles, shafts, plowshares. Carbon steels in most cases can be welded with success, however, caution should be exercised in maintaining proper temperatures in the earlier welding and reheating the material to be welded. -
Page 23: Welding Parameters Draw
Shielding gas should be selected depending on the work piece and the desired characteristics of the weld shown in the following table: Type of welded metal shielding gas welding properties of magnesium alloys Argon Easy adjustment of melting and high purity of the weld It is easy to control the shape of the weld arc is struck, the carbon steel Argon... -
Page 24: Malfunctions Welding
internal components of the device. Prior to the maintenance welder must be disconnected from the mains. The device should be cleaned with dry air of low pressure, thereby removing contaminants must be formed on the housing and the vents. It is necessary for the proper functioning of the device. An important aspect is the state of the external wiring, welding machines, which need to be checked regularly. -
Page 25: Service
Thanks re-use, material utilization or other forms of old appliances, you make an important contribution to protecting our environment. COMPANY DETAILS PH Powermat TMK Bijak Sp. General Partnership Ul. Defenders of the Gdansk Post 97 42-400 Zawiercie...
Need help?
Do you have a question about the PM-IMG-230T and is the answer not in the manual?
Questions and answers

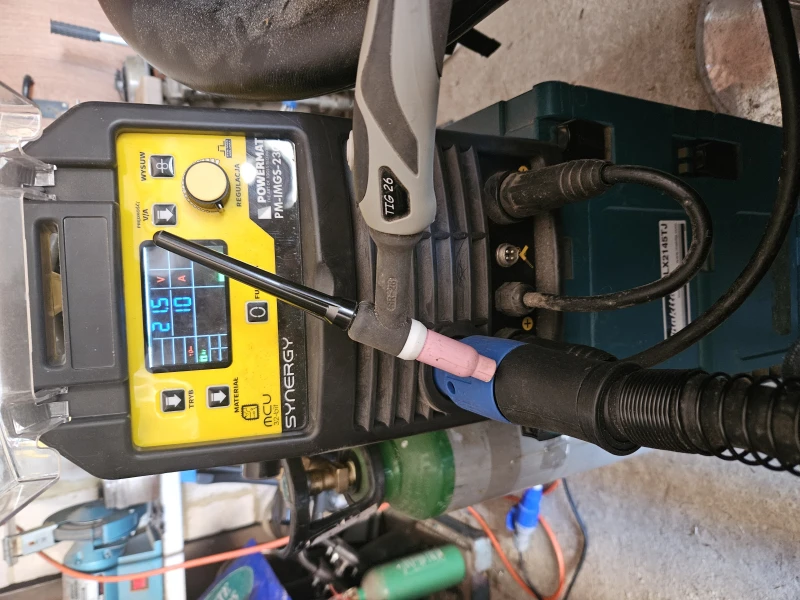

When in TIG mode with the TIG torch fitted, the gas valve is not opening. It does when in MIG mod with the TIG torch fitted.
A possible cause of the gas valve not opening in TIG mode on the Powermat PM-IMG-230T when using a TIG torch could be incorrect mode selection. The welding mode switch must be set to TIG-LIFT for proper operation. If the mode is not set correctly, the device may not activate the gas valve for TIG welding.
