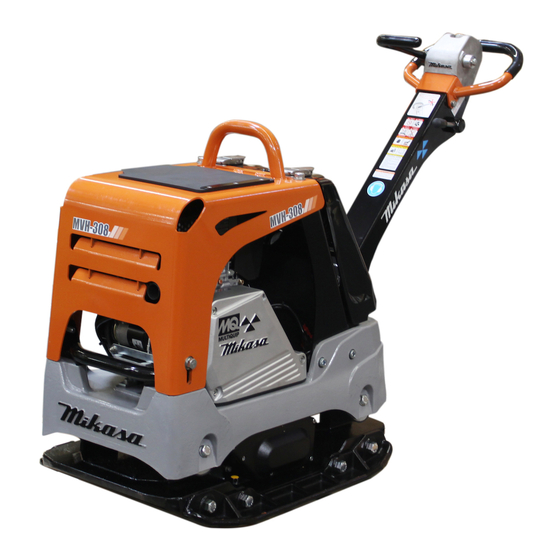

OPERATION AND PARTS MANUAL
SERIES
MODEL MVH308GH
REVERSIBLE PLATE COMPACTOR
(HONDA GX270UT2SMXC/GX270UT2SCM
GASOLINE ENGINES)
Revision #3 (11/17/17)
www.discount-equipment.com
THIS MANUAL MUST ACCOMPANY THE EQUIPMENT AT ALL TIMES.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MVH308GH and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for MQ Multiquip MVH308GH

Summary of Contents for MQ Multiquip MVH308GH

  • Page 1 OPERATION AND PARTS MANUAL SERIES MODEL MVH308GH REVERSIBLE PLATE COMPACTOR (HONDA GX270UT2SMXC/GX270UT2SCM GASOLINE ENGINES) Revision #3 (11/17/17) www.discount-equipment.com THIS MANUAL MUST ACCOMPANY THE EQUIPMENT AT ALL TIMES.
  • Page 2 Discount-Equipment.com is your online resource for commercial and industrial quality parts and equipment sales. Locations: Florida (West Palm Beach): 561-964-4949 Outside Florida TOLL FREE: 877-690-3101 Need parts? Check out our website at www.discount-equipment.com Can’t find what you need? Click on this link: http://www.discount-equipment.com/category/5443-parts/ and fill out the request form.

  • Page 3: Proposition 65 Warning

    PROPOSITION 65 WARNING PAGE 2 — MVH308GH PLATE COMPACTOR • OPERATION AND PARTS MANUAL — REV. #3 11/17/17...

  • Page 4: Table Of Contents

    Specifications and part numbers are subject to change Vibrator Assembly ..........40-41 without notice. Base And Engine Assembly......42-45 Electrical Device Assembly ......46-47 Control Assembly ..........48-51 PAGE 4 — MVH308GH PLATE COMPACTOR • OPERATION AND PARTS MANUAL — REV. #3 11/17/17...

  • Page 5: Safety Information

    COULD result in DEATH or SERIOUS INJURY. CAUTION Indicates a hazardous situation which, if not avoided, COULD result in MINOR or MODERATE INJURY. NOTICE Addresses practices not related to personal injury. PAGE 6 — MVH308GH PLATE COMPACTOR • OPERATION AND PARTS MANUAL — REV. #3 11/17/17...
  • Page 6  ALWAYS clear the work area of any debris, tools, etc. that would constitute a hazard while the equipment is in operation. MVH308GH PLATE COMPACTOR • OPERATION AND PARTS MANUAL — REV. #3 11/17/17— PAGE 7...
  • Page 7 MV H-3 06 the engine start diffi cult. and serious damage to the equipment or engine. PAGE 8 — MVH308GH PLATE COMPACTOR • OPERATION AND PARTS MANUAL — REV. #3 11/17/17...
  • Page 8  ALWAYS keep battery cables in good working condition. hot engine. Repair or replace all worn cables. MVH308GH PLATE COMPACTOR • OPERATION AND PARTS MANUAL — REV. #3 11/17/17— PAGE 9...
  • Page 9  Contact your country's Department of Public Works or recycling agency in your area and arrange for proper disposal of any electrical components, waste or oil associated with this equipment. PAGE 10 — MVH308GH PLATE COMPACTOR • OPERATION AND PARTS MANUAL — REV. #3 11/17/17...

  • Page 10: Specifications

    Environment by equipment for use outdoors. Products are tested for hand/arm vibration (HAV) level in accordance with European Directives 2002/44/EC and EN500-4 and ISO 5349-1:2001, ISO 5349-2:2001. MVH308GH PLATE COMPACTOR • OPERATION AND PARTS MANUAL — REV. #3 11/17/17— PAGE 11...

  • Page 11: Dimensions

    EXTENSION PLATE (OPTION) Figure 1. Dimensions Table 4. Dimensions REF. DES IN. (MM) 17.52 (445) 23.62 (600) 34.65 (880) 47.64 (1210) 53.54 (1360) 33.86 (860) 60.63 (1540) PAGE 12 — MVH308GH PLATE COMPACTOR • OPERATION AND PARTS MANUAL — REV. #3 11/17/17...

  • Page 12: General Information

    Before starting the plate compactor identify and understand The resulting vibrations cause forward motion. The engine the function of all the controls and components. and handle are vibration isolated from the vibrating plate. MVH308GH PLATE COMPACTOR • OPERATION AND PARTS MANUAL — REV. #3 11/17/17— PAGE 13...

  • Page 13: Components

    COMPONENTS S/N B1677 AND BELOW S/N B1678 AND ABOVE S/N B1677 AND BELOW NEUTRAL REVERSE FORWARD (STORED POSITION) (WORKING POSITION) Figure 2. Plate Compactor Components PAGE 14 — MVH308GH PLATE COMPACTOR • OPERATION AND PARTS MANUAL — REV. #3 11/17/17...
  • Page 14 8. Vibrating Plate — A flat, open plate made of durable cast iron construction used in the compacting of soil. 9. Extension Plate — Provides additional area of vibration to the vibrating plate. MVH308GH PLATE COMPACTOR • OPERATION AND PARTS MANUAL — REV. #3 11/17/17— PAGE 15...

  • Page 15: Basic Engine

    4. Engine ON/OFF Switch – ON position permits engine Reference the maintenance section in this manual for starting, OFF position stops engine operation. servicing. PAGE 16 — MVH308GH PLATE COMPACTOR • OPERATION AND PARTS MANUAL — REV. #3 11/17/17...

  • Page 16: Inspection

    Table 5. Oil Type Season Temperature Oil Type Summer 25°C or Higher SAE 10W-30 Spring/Fall 25°C~10°C SAE 10W-30/20 Figure 7. V-Belt Cover Removal Winter 0°C or Lower SAE 10W-10 MVH308GH PLATE COMPACTOR • OPERATION AND PARTS MANUAL — REV. #3 11/17/17— PAGE 17...
  • Page 17 3. When the handle bar is raised to the desired height, PULLEY AS SHOWN. tighten the wing nut. Grip V-BELT VIBRATOR Wing nut PULLEY Figure 9. V-Belt Tension Figure 11. Handle Height Adjustment PAGE 18 — MVH308GH PLATE COMPACTOR • OPERATION AND PARTS MANUAL — REV. #3 11/17/17...

  • Page 18: Startup

    5. Place the engine ON/OFF switch (Figure 16) in the "ON" position. Slightly higher Handle position Idle position Figure 13. Throttle Lever (Higher Position) Figure 16. Engine ON/OFF Switch (ON Position) MVH308GH PLATE COMPACTOR • OPERATION AND PARTS MANUAL — REV. #3 11/17/17— PAGE 19...
  • Page 19 (Figure 18) as the engine warms up. If the engine has not started, repeat steps 1 through 6. CHOKE LEVER OPEN CLOSE Figure 18. Choke Lever (Open) PAGE 20 — MVH308GH PLATE COMPACTOR • OPERATION AND PARTS MANUAL — REV. #3 11/17/17...

  • Page 20: Operation

    Your unit may be equipped with direction control levers on both the right and left side of the handle. Earlier models only have one control lever located on the right side of the handle. MVH308GH PLATE COMPACTOR • OPERATION AND PARTS MANUAL — REV. #3 11/17/17— PAGE 21...
  • Page 21 2. Place the engine ON/OFF switch (Figure 23) in the OFF position. Figure 23. Engine ON/OFF Switch (OFF Position) 3. Place the fuel shut-off lever (Figure 24) in the OFF position. PAGE 22 — MVH308GH PLATE COMPACTOR • OPERATION AND PARTS MANUAL — REV. #3 11/17/17...

  • Page 22: Maintenance

    Ensure that the maintenance area is well ventilated. Gasoline engine exhaust contains poisonous carbon monoxide gas that can cause unconsciousness and may result in DEATH MVH308GH PLATE COMPACTOR • OPERATION AND PARTS MANUAL — REV. #3 11/17/17— PAGE 23...
  • Page 23 2. These items should be serviced by your service dealer, unless you have the proper tools and are mechanically proficient. Refer to the HONDA Shop Manual for service procedures. 3. For commercial use, log hours of operation to determine proper maintenance intervals. PAGE 24 — MVH308GH PLATE COMPACTOR • OPERATION AND PARTS MANUAL — REV. #3 11/17/17...
  • Page 24 Engine Oil Filter Change dirt. Brushing will force dirt into the fibers. Replace the paper filter element if it is excessively dirty. Every 2 years Fuel Lines Replace MVH308GH PLATE COMPACTOR • OPERATION AND PARTS MANUAL — REV. #3 11/17/17— PAGE 25...
  • Page 25 (Figure 26). shown in. Clean inside of air filter cover with warm, soapy water or nonflammable solvent. Rinse and dry thoroughly. PAGE 26 — MVH308GH PLATE COMPACTOR • OPERATION AND PARTS MANUAL — REV. #3 11/17/17...
  • Page 26 Table 4. For engine oil capacity, see Table 2 (Engine Specifications). DO NOT overfill. Figure 32. Removing Hydraulic Hose 4. Set the run lever to reverse. MVH308GH PLATE COMPACTOR • OPERATION AND PARTS MANUAL — REV. #3 11/17/17— PAGE 27...
  • Page 27 DO NOT exceed OIL LEVEL of hydraulic oil. If the level is higher, oil will burst out from the breather plug. MISSING RUBBER CRACKS SIDEWALL WEAR Figure 35. V-Belt Inspection PAGE 28 — MVH308GH PLATE COMPACTOR • OPERATION AND PARTS MANUAL — REV. #3 11/17/17...
  • Page 28 4. Carefully remove carbon deposits from the spark arrester screen (Figure 37) with a wire brush. WIRE BRUSH SPARK ARRESTER SCREEN Figure 37. Cleaning The Spark Arrester MVH308GH PLATE COMPACTOR • OPERATION AND PARTS MANUAL — REV. #3 11/17/17— PAGE 29...

  • Page 29: Troubleshooting (Compactor)

    Piston inside hydraulic pump not Adjust or replace. moving smoothly? Direction Control Lever operating resistance for reverse is high. Vibrator cylinder piston does not move Adjust or replace. smoothly PAGE 30 — MVH308GH PLATE COMPACTOR • OPERATION AND PARTS MANUAL — REV. #3 11/17/17...

  • Page 30: Troubleshooting (Engine)

    Fuel fi lter/lines clogged? Replace fuel fi lter. Fuel tank cap breather hole clogged? Clean or replace fuel tank cap. Air in fuel line? Bleed fuel line. MVH308GH PLATE COMPACTOR • OPERATION AND PARTS MANUAL — REV. #3 11/17/17— PAGE 31...
  • Page 31 Check cable connections. Charge or replace Will not start, no power with key "ON". (if Battery disconnected or discharged? applicable) battery Ignition switch/wiring defective? Replace ignition switch. Check wiring. PAGE 32 — MVH308GH PLATE COMPACTOR • OPERATION AND PARTS MANUAL — REV. #3 11/17/17...

  • Page 32: Explanation Of Code In Remarks Column

    “Remarks” Column. assembly/kit that can be purchased, or is not available for sale through Multiquip. PAGE 34 — MVH308GH PLATE COMPACTOR • OPERATION AND PARTS MANUAL — REV. #3 11/17/17...

  • Page 33: Suggested Spare Parts

    3◊ ..17218Z1C780 ..FILTER OUTER supersede/replace the part numbers shown in the 1....17620Z4H900 ..CAP, FUEL TANK following parts lists. 1....17672Z4H000 ..FUEL FILTER, FUEL TANK NOTICE GX270UT2SMXC ♦ ◊ GX270UT2SCM MVH308GH PLATE COMPACTOR • OPERATION AND PARTS MANUAL — REV. #3 11/17/17— PAGE 35...
  • Page 34 NAMEPLATE AND DECAL ASSY. 15-1 15-2 PAGE 36 — MVH308GH PLATE COMPACTOR • OPERATION AND PARTS MANUAL — REV. #3 11/17/17...
  • Page 35 920218130 DECAL: E/G RPM 3600 920217870 DECAL: MODEL MVH-308 920217730 DECAL: MODEL (R, OR) 920217740 DECAL: MODEL (L, OR) PLATE: SERIAL NO...........1....CONTACT MQ PARTS DEPT. MVH308GH PLATE COMPACTOR • OPERATION AND PARTS MANUAL — REV. #3 11/17/17— PAGE 37...
  • Page 36 VIBRATING PLATE ASSY. OPTION PAGE 38 — MVH308GH PLATE COMPACTOR • OPERATION AND PARTS MANUAL — REV. #3 11/17/17...
  • Page 37 O-RING 014208020 BOLT 8X20 ............18....REPLACES P/N 001220820 030208200 WASHER, LOCK M8 467219050 EXTENSION PLATE 012218050 BOLT 18X50............8....REPLACES P/N 001221850 58407 WASHER, LOCK M18 ........8....REPLACES P/N 030218460 MVH308GH PLATE COMPACTOR • OPERATION AND PARTS MANUAL — REV. #3 11/17/17— PAGE 39...
  • Page 38 VIBRATOR ASSY. PAGE 40 — MVH308GH PLATE COMPACTOR • OPERATION AND PARTS MANUAL — REV. #3 11/17/17...
  • Page 39 014208020 BOLT 8X20 ............2....REPLACES P/N 001220820 030208200 WASHER, LOCK M8 0401450080 WASHER, FLAT M8 ..........2....REPLACES P/N 031108160 467218890 BELT COVER, LOWER 001520852 SOCKET HEAD BOLT 8X60 MVH308GH PLATE COMPACTOR • OPERATION AND PARTS MANUAL — REV. #3 11/17/17— PAGE 41...
  • Page 40 BASE AND ENGINE ASSY. PAGE 42 — MVH308GH PLATE COMPACTOR • OPERATION AND PARTS MANUAL — REV. #3 11/17/17...
  • Page 41 WASHER, FLAT M14 467121140 CENTER COVER 001521435 SOCKET HEAD BOLT 14X35 031114260 WASHER, FLAT M14 030214350 WASHER, LOCK M14 020314110 NUT M14 467466800 RUBBER COVER, UPPER MVH308GH PLATE COMPACTOR • OPERATION AND PARTS MANUAL — REV. #3 11/17/17— PAGE 43...
  • Page 42 BASE AND ENGINE ASSY. (CONTINUED) PAGE 44 — MVH308GH PLATE COMPACTOR • OPERATION AND PARTS MANUAL — REV. #3 11/17/17...
  • Page 43 COIL SPRING ...........1....REPLACES P/N 0830000010 58151 WASHER, FLAT M5 ..........1....REPLACES P/N 031105080 2067550101 CLAMP COMPLETE 959407260 CLIP 012210015 BOLT 10X15............1....REPLACES P/N 001221015 030210250 WASHER, LOCK M10 MVH308GH PLATE COMPACTOR • OPERATION AND PARTS MANUAL — REV. #3 11/17/17— PAGE 45...
  • Page 44 ELECTRICAL DEVICE ASSY. ENGINE PAGE 46 — MVH308GH PLATE COMPACTOR • OPERATION AND PARTS MANUAL — REV. #3 11/17/17...
  • Page 45 467466980 LEVER, THROTTLE 030208200 WASHER, LOCK M8 020308060 NUT M8 .............1....REPLACES P/N 020308060 111$ 959021812 SPIRAL TUBE 515450380 WIRE HARNESS 955407970 WIRING FIXED BASE 454010020 CLAMP MVH308GH PLATE COMPACTOR • OPERATION AND PARTS MANUAL — REV. #3 11/17/17— PAGE 47...
  • Page 46 CONTROL ASSY. S/N B1677 S/N B1678 AND BELOW AND ABOVE 72-2 73-2 74-2 73-2 9 10 NOTES: USED ON S/N B1677 AND BELOW. PAGE 48 — MVH308GH PLATE COMPACTOR • OPERATION AND PARTS MANUAL — REV. #3 11/17/17...
  • Page 47 467467350 PACKING (R), HANDLE 0105050616 BOLT 6X15............6....REPLACES P/N 001220615 030206150 WASHER, LOCK M6 952404470 WASHER, FLAT M6 ..........6....REPLACES P/N 031106100 464457930 RUBBER PIECE 467219140 HYDRAULIC PUMP MVH308GH PLATE COMPACTOR • OPERATION AND PARTS MANUAL — REV. #3 11/17/17— PAGE 49...
  • Page 48 CONTROL ASSY. (CONTINUED) S/N B1677 S/N B1678 AND BELOW AND ABOVE 72-2 73-2 74-2 73-2 9 10 NOTES: USED ON S/N B1677 AND BELOW. PAGE 50 — MVH308GH PLATE COMPACTOR • OPERATION AND PARTS MANUAL — REV. #3 11/17/17...
  • Page 49 ROD END M5 001520520 SOCKET HEAD BOLT 5X20 58151 WASHER, FLAT M5 ...........1....REPLACES P/N 031105080 020305040 NUT M5 956100070 THROTTLE WIRE 67.9 IN. (1725 MM) 454010020 CLAMP MVH308GH PLATE COMPACTOR • OPERATION AND PARTS MANUAL — REV. #3 11/17/17— PAGE 51...
  • Page 50 HONDA GX270UT2SMXC/SCM ENG. — CYLINDER HEAD ASSY. PAGE 52 — MVH308GH PLATE COMPACTOR • OPERATION AND PARTS MANUAL — REV. #3 11/17/17...
  • Page 51 957011008000 BOLT, FLANGE 10X80 15♦ 0650140480 SPARK PLUG (BPR6ES) 15◊ 9807956846 SPARK PLUG (BPR6ES) ........1....REPLACES P/N 9807956876 17316611000 CLIP, BREATHER TUBE NOTICE GX270UT2SMXC ♦ GX270UT2SCM ◊ MVH308GH PLATE COMPACTOR • OPERATION AND PARTS MANUAL — REV. #3 11/17/17— PAGE 53...
  • Page 52 HONDA GX270UT2SMXC/SCM ENG. — CYL. BARREL ASSY. PAGE 54 — MVH308GH PLATE COMPACTOR • OPERATION AND PARTS MANUAL — REV. #3 11/17/17...
  • Page 53 O-RING, 14MM ..........1....REPLACES P/N 91353671004 9405010000 FLANGE NUT, M10 031112230 WASHER, DRAIN PLUG M12 ......2....REPLACES P/N 9410912000 9425110000 PIN, LOCK 10MM 957010601200 FLANGE BOLT, 6X12 354800ZF6003 SWITCH ASSY., OIL LEVEL MVH308GH PLATE COMPACTOR • OPERATION AND PARTS MANUAL — REV. #3 11/17/17— PAGE 55...
  • Page 54 HONDA GX270UT2SMXC/SCM ENG. — CRANKCASE CVR. ASSY. PAGE 56 — MVH308GH PLATE COMPACTOR • OPERATION AND PARTS MANUAL — REV. #3 11/17/17...
  • Page 55 CLIP, GOVERNOR HOLDER 90701HC4000 PIN, DOWEL 8X12 91201Z1D003 OIL SEAL, 30X46X8 58176 WASHER, FLAT 6MM ........1....REPLACES P/N 9410106800 957010803500 FLANGE BOLT, 8X35 961006206000 BALL BEARING 6206 MVH308GH PLATE COMPACTOR • OPERATION AND PARTS MANUAL — REV. #3 11/17/17— PAGE 57...
  • Page 56 HONDA GX270UT2SMXC/SCM ENG. — CRANKSHAFT ASSY. PAGE 58 — MVH308GH PLATE COMPACTOR • OPERATION AND PARTS MANUAL — REV. #3 11/17/17...
  • Page 57 CRANKSHAFT COMP........1....INCLUDES ITEMS W/# 90741889810 KEY, 7X7X33 ............1....REPLACES P/N 90741805000 91001ZH9003 BEARING, BALL 11♦ 90534706010 WASHER, LOCK 8MM 12♦ 92101080250A BOLT, 8X25 NOTICE GX270UT2SMXC ♦ ◊ GX270UT2SCM MVH308GH PLATE COMPACTOR • OPERATION AND PARTS MANUAL — REV. #3 11/17/17— PAGE 59...
  • Page 58 HONDA GX270UT2SMXC/SCM ENG. — PISTON ASSY. PAGE 60 — MVH308GH PLATE COMPACTOR • OPERATION AND PARTS MANUAL — REV. #3 11/17/17...
  • Page 59 ROD ASSY., CONNECTING (STD) ....1....INCLUDES ITEMS W/% 4♦ 13200Z1D305 ROD ASSY., CONNECTING/0. 25UN ....1....INCLUDES ITEMS W/$ 5#%$ 90001ZE8000 BOLT, CONNECTING ROD 90551ZE1000 CLIP, PISTON PIN 18MM NOTICE GX270UT2SMXC ♦ ◊ GX270UT2SCM MVH308GH PLATE COMPACTOR • OPERATION AND PARTS MANUAL — REV. #3 11/17/17— PAGE 61...
  • Page 60 HONDA GX270UT2SMXC/SCM ENG. — CAMSHAFT ASSY. 17 6 PAGE 62 — MVH308GH PLATE COMPACTOR • OPERATION AND PARTS MANUAL — REV. #3 11/17/17...
  • Page 61 14775ZE2010 SEAT, VALVE SPRING 14791Z1D000 PLATE, PUSH ROD GUIDE 90012ZE0010 BOLT, PIVOT, 8MM 90206ZE1000 NUT, PIVOT ADJUSTING 14100Z5K910 CAMSHAFT COMP./STD/PRESS FIT NOTICE GX270UT2SMXC ♦ ◊ GX270UT2SCM MVH308GH PLATE COMPACTOR • OPERATION AND PARTS MANUAL — REV. #3 11/17/17— PAGE 63...
  • Page 62 HONDA GX270UT2SMXC/SCM ENG. — RECOIL STARTER ASSY. PAGE 64 — MVH308GH PLATE COMPACTOR • OPERATION AND PARTS MANUAL — REV. #3 11/17/17...
  • Page 63 SPRING, STARTER RETURN 28443ZE2W01 SPRING, RATCHET 28444ZE2W01 RETAINER, SPRING 28462ZE2W11 ROPE, RECOIL STARTER 90004ZE2W01 SCREW, CENTER 957010601000 FLANGE BOLT 6X10 28461Z5T305 GRIP, STARTER 28463Z5T013 GRIP, REINFORCEMENT MVH308GH PLATE COMPACTOR • OPERATION AND PARTS MANUAL — REV. #3 11/17/17— PAGE 65...
  • Page 64 HONDA GX270UT2SMXC/SCM ENG. — FAN COVER ASSY. PAGE 66 — MVH308GH PLATE COMPACTOR • OPERATION AND PARTS MANUAL — REV. #3 11/17/17...
  • Page 65 PART NAME QTY. REMARKS 1◊ 16731ZE2003 CLIP, TUBE 19610Z5K000ZA COVER, COMP. FAN 19631Z5K000 SHROUD 81329567020 GROMMET, DRAIN HOLE 90013883000 FLANGE BOLT 6X12 NOTICE GX270UT2SMXC ♦ ◊ GX270UT2SCM MVH308GH PLATE COMPACTOR • OPERATION AND PARTS MANUAL — REV. #3 11/17/17— PAGE 67...
  • Page 66 HONDA GX270UT2SMXC/SCM ENG. — CARBURETOR ASSY. 1,38 6 NOTICE Gasket set, item 1 included with items 4, 7, 13, 22, 27 and 38. PAGE 68 — MVH308GH PLATE COMPACTOR • OPERATION AND PARTS MANUAL — REV. #3 11/17/17...
  • Page 67 JET, MAIN #95 27$% 99204ZE20380 JET SET, PILOT, #38 .........1....INCLUDES ITEM W/◗ 16959Z5T901 FILTER, CUP 38◊% 16141Z0S003 WASHER, FLAT ..........1....INCLUDES ITEM W/◗ NOTICE GX270UT2SMXC ♦ ◊ GX270UT2SCM MVH308GH PLATE COMPACTOR • OPERATION AND PARTS MANUAL — REV. #3 11/17/17— PAGE 69...
  • Page 68 HONDA GX270UT2SMXC ENG. — AIR CLEANER ASSY. PAGE 70 — MVH308GH PLATE COMPACTOR • OPERATION AND PARTS MANUAL — REV. #3 11/17/17...
  • Page 69 CASE COMP., PRE-AIR CLEANER 17475ZE3841 CAP, PRE-AIR CLEANER 17476ZE3841 GUIDE, PRE-AIR CLEANER 90009Z1C000 BOLT, WASHER 6X22 90142MB0000 SCREW, PAN 5X16.5 90325044000 NUT, TOOL BOX SETTING 9405006000 FLANGE NUT 6MM MVH308GH PLATE COMPACTOR • OPERATION AND PARTS MANUAL — REV. #3 11/17/17— PAGE 71...
  • Page 70 HONDA GX270UT2SCM ENG. — AIR CLEANER ASSY. PAGE 72 — MVH308GH PLATE COMPACTOR • OPERATION AND PARTS MANUAL — REV. #3 11/17/17...
  • Page 71 ELBOW COMPLETE, AIR CLEANER ....1....INCLUDES ITEMS W/% 17417Z5T000 PACKING, AIR CLEANER CASE 90009Z1C000 BOLT WITH WASHER 6X22 90300Z4M800 NUT, AIR CLEANER 90325044000 NUT, TOOL BOX SETTING 9405006000 FLANGE NUT 6MM MVH308GH PLATE COMPACTOR • OPERATION AND PARTS MANUAL — REV. #3 11/17/17— PAGE 73...
  • Page 72 HONDA GX270UT2SMXC/SCM ENG. — MUFFLER ASSY. PAGE 74 — MVH308GH PLATE COMPACTOR • OPERATION AND PARTS MANUAL — REV. #3 11/17/17...
  • Page 73 ARRESTER COMP., SPARK 18381ZE2W10 GASKET, MUFFLER (ARRESTER) 90006ZE2000 TAPPING SCREW 6X10 90013883000 FLANGE BOLT 6X12 90050ZE1000 TAPPING SCREW 5X8 90055ZE1000 TAPPING SCREW 4X6 9405008000 FLANGE NUT M8 MVH308GH PLATE COMPACTOR • OPERATION AND PARTS MANUAL — REV. #3 11/17/17— PAGE 75...
  • Page 74 HONDA GX270UT2SMXC/SCM ENG. — FUEL TANK ASSY. PAGE 76 — MVH308GH PLATE COMPACTOR • OPERATION AND PARTS MANUAL — REV. #3 11/17/17...
  • Page 75 TUBE, FUEL 4.5X210 957010802500 FLANGE BOLT 8X25 950024080008 CLAMP, TUBE (D8) 17620Z4H900 FUEL TANK CAP COMP........1....INCLUDES ITEM W/# 17672Z4H000 FILTER, FUEL 17510Z5K000ZA TANK, COMP. FUEL, NH1 (BLACK) MVH308GH PLATE COMPACTOR • OPERATION AND PARTS MANUAL — REV. #3 11/17/17— PAGE 77...
  • Page 76 HONDA GX270UT2SMXC/SCM ENG. — FLYWHEEL ASSY. PAGE 78 — MVH308GH PLATE COMPACTOR • OPERATION AND PARTS MANUAL — REV. #3 11/17/17...
  • Page 77 HONDA GX270UT2SMXC/SCM ENG. — FLYWHEEL ASSY. PART NO. PART NAME QTY. REMARKS 19511ZE2000 FAN, COOLING 28451ZE2W01 PULLEY, STARTER 31110Z5K000 FLYWHEEL, COMP. 90201ZE3V00 NUT, SPECIAL 16MM 90741ZE2000 KEY, SPECIAL WOODRUFF 25X18 MVH308GH PLATE COMPACTOR • OPERATION AND PARTS MANUAL — REV. #3 11/17/17— PAGE 79...
  • Page 78 HONDA GX270UT2SMXC/SCM ENG. — IGNITION COIL ASSY. PAGE 80 — MVH308GH PLATE COMPACTOR • OPERATION AND PARTS MANUAL — REV. #3 11/17/17...
  • Page 79 CAP ASSY., NOISE SUPPRESOR 31512ZE2000 GROMMET, CORD 90015883000 FLANGE BOLT 6X28 90684ZA0601 CLIP, HARNESS 30500Z5K003 COIL ASSY., IGNITION 32110Z5K000 HARNESS ASSY., E/G WIRE NOTICE GX270UT2SMXC ♦ ◊ GX270UT2SCM MVH308GH PLATE COMPACTOR • OPERATION AND PARTS MANUAL — REV. #3 11/17/17— PAGE 81...
  • Page 80 HONDA GX270UT2SMXC/SCM ENG. — CONTROL ASSY. PAGE 82 — MVH308GH PLATE COMPACTOR • OPERATION AND PARTS MANUAL — REV. #3 11/17/17...
  • Page 81 HOLDER, WIRE 90605230000 CIR CLIP 0043504060 SCREW 4X6 .............1....REPLACES P/N 93500040060H 0202005T125 SCREW 5X16 ...........1....REPLACES P/N 93500050160A 16582Z1D780 HOLDER, CONTROL CABLE NOTICE GX270UT2SMXC ♦ ◊ GX270UT2SCM MVH308GH PLATE COMPACTOR • OPERATION AND PARTS MANUAL — REV. #3 11/17/17— PAGE 83...
  • Page 82 HONDA GX270UT2SMXC/SCM ENG. — ENGINE DECAL ASSY. PAGE 84 — MVH308GH PLATE COMPACTOR • OPERATION AND PARTS MANUAL — REV. #3 11/17/17...
  • Page 83 MARK, THROTTLE INDICATION 8♦ 87535ZE1841 MARK, AIR CLEANER 87516Z4H010 MARK, OP-CAUTION 14♦ 87539Z01000 MARK, EX. CAUTION 14◊ 87539Z0J000 MARK, EX. CAUTION/PICTO NOTICE GX270UT2SMXC ♦ ◊ GX270UT2SCM MVH308GH PLATE COMPACTOR • OPERATION AND PARTS MANUAL — REV. #3 11/17/17— PAGE 85...
  • Page 84 Discount-Equipment.com is your online resource for commercial and industrial quality parts and equipment sales. Locations: Florida (West Palm Beach): 561-964-4949 Outside Florida TOLL FREE: 877-690-3101 Need parts? Check out our website at www.discount-equipment.com Can’t find what you need? Click on this link: http://www.discount-equipment.com/category/5443-parts/ and fill out the request form.

Table of Contents
