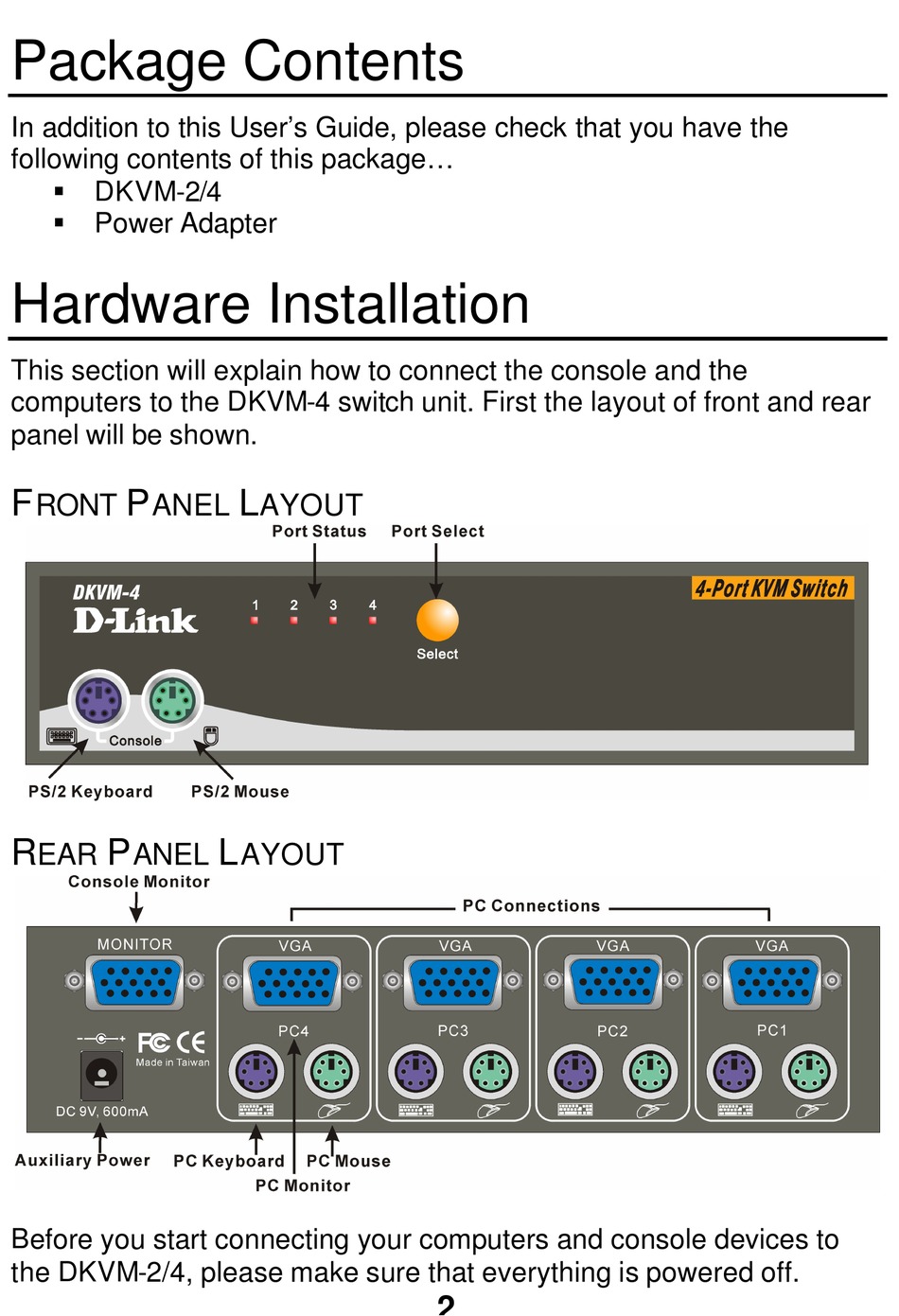

Package Contents

In addition to this User's Guide, please check that you have the
following contents of this package...
§ DKVM-2/4
§ Power Adapter

Hardware Installation

This section will explain how to connect the console and the
computers to the DKVM-4 switch unit. First the layout of front and rear
panel will be shown.
F P
RONT ANEL
R P
EAR ANEL
Before you start connecting your computers and console devices to
the DKVM-2/4, please make sure that everything is powered off.
