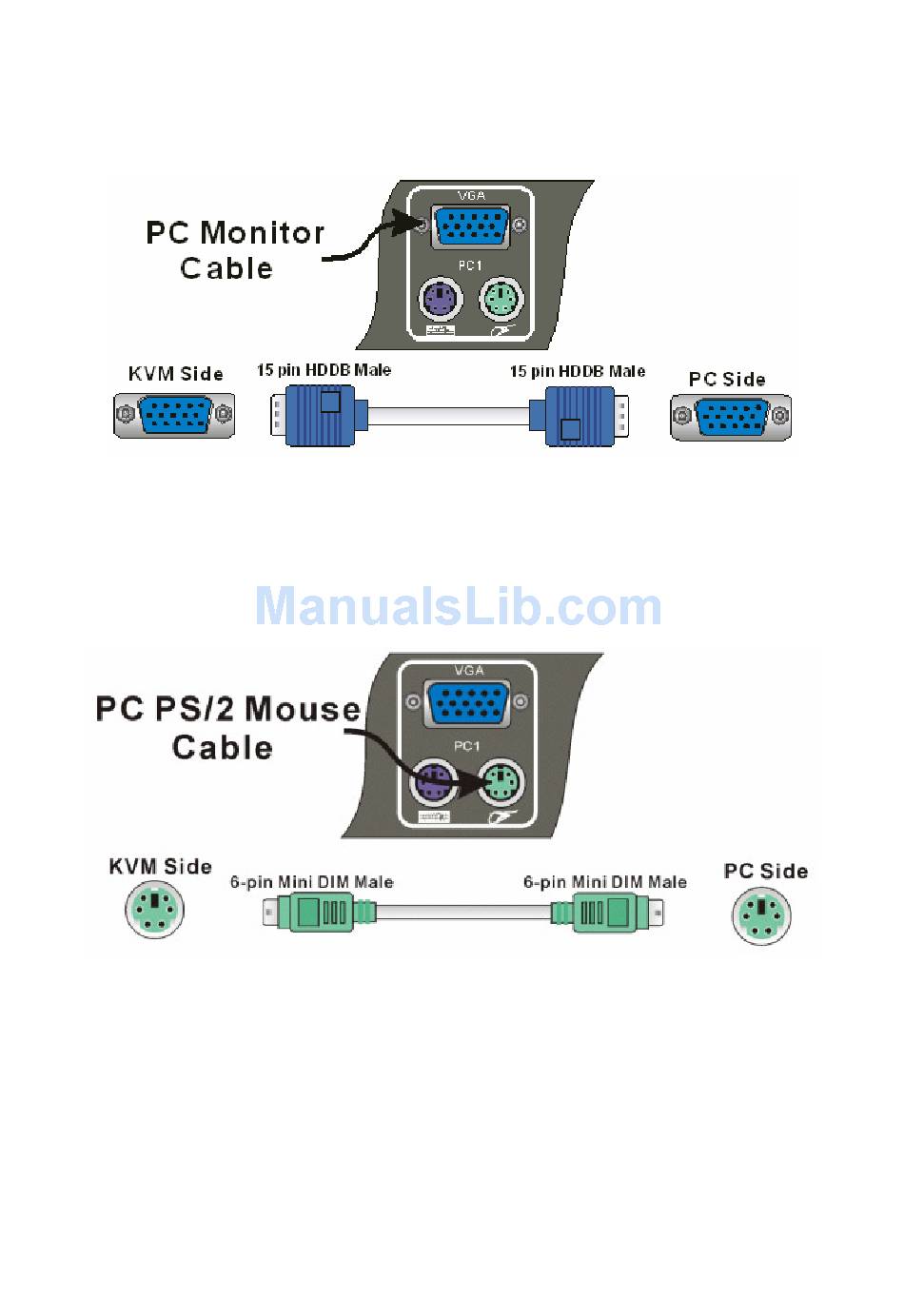

Step 4. Now the PC connections will be made with the monitor (VGA)
connections. Connect a VGA cable (15-pin HDDB Male /
Male) with the Male side to both the PC and to the connector
labeled VGA on the rear panel of the DKVM-2/4 unit. Repeat
this for all PCs.
Step 5. Now connect the PS/2 mouse cables from your computers to
the DKVM-2/4 unit. Connect a mouse cable (6-pin Mini DIN
Male / Male) to the PC and to the connector with the mouse
symbol on the rear panel of the DKVM-2/4 unit. Repeat this for
all PCs.
Step 6. To finish the hardware installation, connect the PS/2 keyboard
cables from your computers to the DKVM-2/4 unit. Connect a
keyboard cable (6-pin Mini DIN Male / Male) to the PC and to
4
