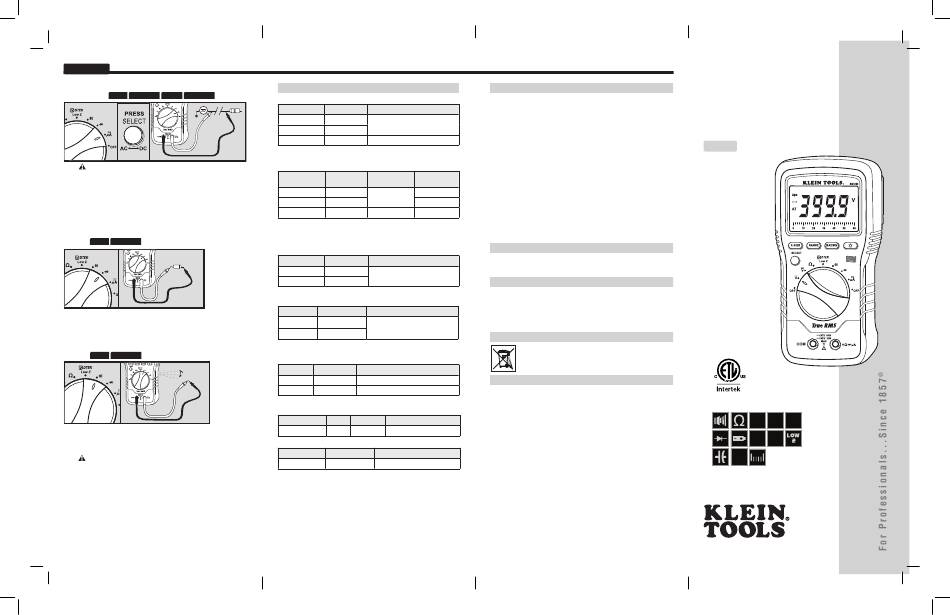

Klein Tools MM5000 Instruction Manual

ENGLISH
4. AC/DC Current (small): < 2000µA
Features: HOLD AUTO HOLD RANGE MAX/MIN
DO NOT attempt to measure more than 400mA.
• Attach RED lead to "µA" input.
• Break circuit to be measured.
• Attach RED lead to "µA" input, BLACK lead to COM.
• Connect RED lead to one side of break and BLACK lead to the
other (meter in series).
• Select AC or DC current source.
5. Diode Test
Features: HOLD MAX/MIN
Display shows:
• Forward voltage drop if forward biased.
• "O.L" if reverse biased.
6. Continuity
Features: HOLD MAX/MIN
• Display shows resistance.
• Buzzer sounds if less than 40Ω.
7. Low Impedance (LOW Z): < 600V
DO NOT use (LOW Z) mode at voltages greater than 600V.
• Press SELECT to choose AC or DC Voltage.
• Use Low Impedance (LOW Z) mode to reduce ghost voltages.
• See AC/DC Voltage instructions.
ELECTRICAL SPECIFICATIONS
DC Voltage Measurement
Range Resolution Accuracy
400.0mV 0.1mV
± (0.3% + 5 digits)
4V ~ 400V 1mV ~ 0.1V
1000V 1V ± (0.8% + 10 digits)
Overload Protection: 1000V Input Impedance (Nominal): >10MΩ, <100pF
Input Impedance (LOW Z): >3kΩ, <200pF, up to 600V RMS
AC Voltage Measurement
Accuracy Accuracy
Range Resolution
40Hz ~ 400Hz 400Hz ~ 2kHz
400mV 0.1mV ± (2.5% +10 digits)
± (0.75% + 5 digits)
4V ~ 400V 1mV ~ 0.1V ± (2.0% +8 digits)
1000V 1V ± (0.75% + 8 digits) ± (2.0% +8 digits)*
Overload Protection: 1000V RMS Input Impedance (Nominal): >10MΩ, <100pF
Input Impedance (LOW Z): >3kΩ, <200pF, up to 600V RMS
40 to 2kHz Response: True RMS
Frequency Range:
*Accuracy for 400Hz ~ 1kHz range only.
DC Current Measurement
Range Resolution Accuracy
400.0µA 0.1µA
± (1.0% + 5 digits)
2000µA 1µA
Overload Protection: 600V RMS
AC Current Measurement
Range Resolution Accuracy
400.0µA 0.1µA
± (1.5% + 5 digits)
2000µA 1µA
Overload Protection: 600V RMS
Frequency: 40Hz to 2kHz Response: True RMS
Resistance Measurement
Range Resolution Accuracy
400Ω ˜ 4MΩ 0.1Ω ˜ 1kΩ ± (1.0% + 5 digits)
40MΩ 0.01MΩ ± (1.5% + 10 digits)
Overload Protection: 600V RMS
Diode Test
Overload Protection Range Test Current Open Circuit Voltage
600V RMS 4.0V DC Appx. 0.25mA < 1.8V DC (typ.)
Continuity Test
Overload Protection Open Circuit Voltage Threshold (Appx.)
600V RMS Appx. 0.44V Appx. < 40Ω
Specifications subject to change.
WARRANTY
This product is warranted to be free from defects in materials and workmanship
for a period of two years from the date of purchase. During this warranty period,
Klein Tools has the option to repair or replace or refund the purchase price of
any unit which fails to conform to this warranty under normal use and service.
This warranty does not cover damage which occurs in shipment or failure which
results from alteration, tampering, accident, misuse, abuse, neglect, or improper
maintenance. Batteries and damage resulting from failed batteries are not
covered by warranty. A purchase receipt or other proof of original purchase date
will be required before warranty repairs will be rendered.
Any implied warranties, including but not limited to implied warranties of
merchantability and fitness for a particular purpose, are limited to the express
warranty. Klein Tools shall not be liable for loss of use of the instrument or other
incidental or consequential damages, expenses, or economic loss, or for any
claim or claims for such damage, expenses or economic loss.
Some states or countries laws vary, so the above limitations or exclusions may
not apply to you. This warranty gives you specific legal rights, and you may also
have other rights which vary from state to state. If your Klein product requires
repair or for information on how to exercise your rights under the terms of this
warranty, please contact Klein Tools at 1-877-775-5346.
CLEANING
Turn instrument off and disconnect test leads. Clean the instrument by using a
damp cloth. Do not use abrasive cleaners or solvents.
STORAGE
Remove the batteries when instrument is not in use for a prolonged period
of time. Do not expose to high temperatures or humidity. After a period of
storage in extreme conditions exceeding the limits mentioned in the General
Specifications section, allow the instrument to return to normal operating
conditions before using it.
DISPOSAL / RECYCLE
Caution: This symbol indicates that equipment and its accessories
shall be subject to a separate collection and correct disposal.
CUSTOMER SERVICE
KLEIN TOOLS, INC.
450 Bond Street
Lincolnshire, IL 60069
1-877-775-5346
www.kleintools.com
Rev A 2/13
GRAPHICS DRAWING NAME: MM5000 Manual ENG.indd
GRAPHICS PART NUMBER: XXXXXX ECN NUMBER.:
PACKAGING DWG. REF.: VENDOR SUPPLIED

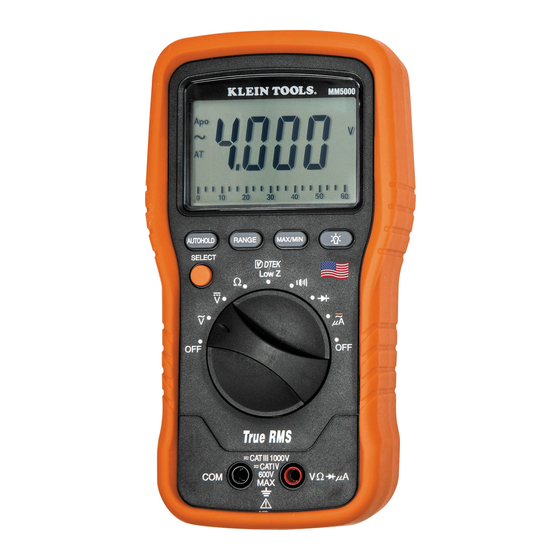

Instruction
Manual
MM5000
ENGLISH
• TRUE RMS
• BACKLIT DISPLAY
• BAR GRAPH
• LEAD STORAGE
• MAX / MIN
• 3-3/4 DIGIT
4000 COUNT LCD
• AUTO / MANUAL
RANGE
• AUTO HOLD
4007036
HOLD TRMS A-HOLD
Apo AUTO
RANGE
www.kleintools.com
139749
00000
Revision: A 1-25-13
