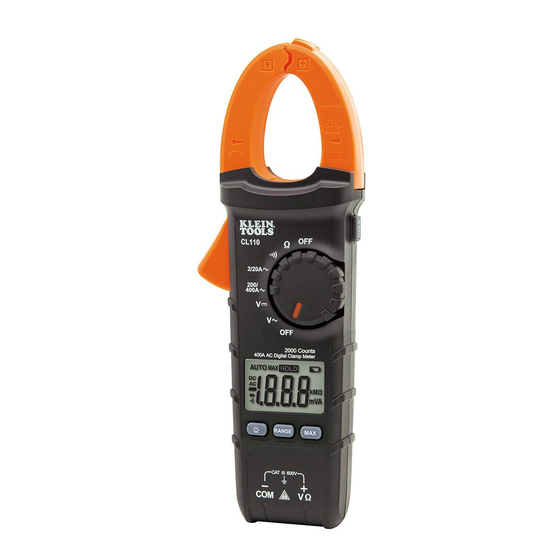

- Page 1 ENGLISH CL110 INSTRUCTION MANUAL 400A AC Auto-Ranging Digital Clamp Meter • AUTO-RANGING • DATA HOLD • RANGE HOLD • AUDIBLE CONTINUITY 600V 400A Ω ESPAÑOL pg. 13 FRANÇAIS pg. 25...
- Page 2 ENGLISH GENERAL SPECIFICATIONS Klein Tools CL110 is an automatically ranging digital clamp-meter that measures AC current via the clamp, and AC/DC voltage, resistance and continuity via test-leads. • Operating Altitude: 6562 ft. (2000 m) • Relative Humidity: <95% non-condensing • Operating Temp: 32° to 122°F (0° to 50°C) •...
- Page 3 ELECTRICAL SPECIFICATIONS Function Range Resolution Accuracy 200.0mV 0.1mV ±(2.5% + 10 digits) 2.000V AC Voltage 20.00V 10mV (V AC) ±(2.0% + 5 digits) 200.0V 100mV 600V 200.0mV 0.1mV ±(1.0% + 8 digits) 2.000V DC Voltage 20.00V 10mV (V DC) ±(1.0% + 3 digits) 200.0V 100mV 600V...
- Page 4 ENGLISH WARNINGS To ensure safe operation and service of the meter, follow these instructions. Failure to observe these warnings can result in severe injury or death. • Before each use verify meter operation by measuring a known voltage or current. •...
- Page 5 FEATURE DETAILS NOTE: There are no user-serviceable parts inside meter. 2000 count LCD display "RANGE" button Function selector switch "MAX" (Maximum) button Clamp Data Hold button "COM" jack Clamp trigger (press to open clamp) "VΩ" jack Arrow markings Backlight button...
- Page 6 ENGLISH FUNCTION BUTTONS ON/OFF To power ON the meter, rotate the Function Selector switch from the OFF setting to any measurement setting. To power OFF the meter, rotate the Function Selector switch to either of the OFF settings. By default, the meter will automatically power OFF after 15 minutes of inactivity.
- Page 7 OPERATING INSTRUCTIONS CONNECTING TEST LEADS Do not test if leads are improperly seated. Results could cause intermittent display readings. To ensure proper connection, firmly press leads into the input jack completely. INCORRECT CORRECT TESTING IN CAT III / CAT IV MEASUREMENT LOCATIONS Ensure the test lead shield is pressed firmly in place.
- Page 8 ENGLISH OPERATING INSTRUCTIONS AC CURRENT (LESS THAN 400A) AC Current is measured by pressing the clamp trigger to open the clamp and placing it around a current-carrying wire. When measuring, care should be taken to ensure that the clamp is completely closed with trigger fully released, and that the wire passes perpendicularly through the center of the clamp in line with...
- Page 9 OPERATING INSTRUCTIONS AC/DC VOLTAGE (LESS THAN 600V) 1. Insert RED test lead into VΩ jack , and BLACK test lead into COM jack , and rotate function selector switch to the DC Voltage or AC Voltage setting. Note "DC" or "AC" on the display.
- Page 10 ENGLISH OPERATING INSTRUCTIONS RESISTANCE MEASUREMENTS 1. Insert RED test lead into VΩ jack , and BLACK test lead into COM jack , and rotate function selector switch to the Resistance setting. The resistance symbol will appear on the display. 2. Remove power from circuit. 3.
- Page 11 MAINTENANCE BATTERY REPLACEMENT When indicator is displayed on LCD, batteries must be replaced. 1. Remove screw from battery door. 2. Replace 3 x AAA batteries (note proper polarity). 3. Replace battery door and fasten securely with screw. To avoid risk of electric shock, disconnect leads from any voltage source before removing battery door.
- Page 12 Do not place equipment and its accessories in the trash. Items must be properly disposed of in accordance with local regulations. Please see www.epa.gov or www.erecycle.org for additional information. CUSTOMER SERVICE KLEIN TOOLS, INC. 450 Bond Street Lincolnshire, IL 60069 1-877-775-5346 customerservice@kleintools.com...
