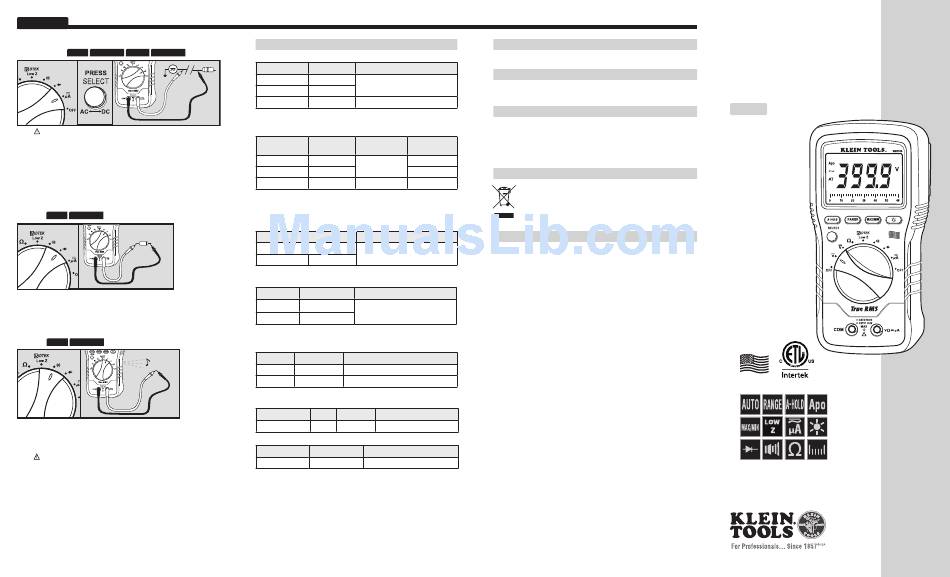

Klein Tools MM5000 Instruction Manual

ENGLISH
4. AC/DC Current (small): < 2000µA
Features: HOLD AUTO HOLD RANGE MAX/MIN
DO NOT attempt to measure more than 400mA.
• Attach RED lead to "µA" input.
• Break circuit to be measured.
• Attach RED lead to "µA" input, BLACK lead to COM.
• Connect RED lead to one side of break and BLACK lead to the
other (meter in series).
• Select AC or DC current source.
5. Diode Test
HOLD MAX/MIN
Features:
Display shows:
• Forward voltage drop if forward biased.
• "O.L" if reverse biased.
6. Continuity
HOLD MAX/MIN
Features:
• Display shows resistance.
• Buzzer sounds if less than 40Ω.
7. Low Impedance (LOW Z): < 600V
DO NOT use (LOW Z) mode at voltages greater than 600V.
• Press SELECT to choose AC or DC Voltage.
• Use Low Impedance (LOW Z) mode to reduce ghost voltages.
• See AC/DC Voltage instructions.
ELECTRICAL SPECIfICATIONS
DC Voltage Measurement
Range Resolution Accuracy
400.0mV 0.1mV
± (0.3% + 5 digits)
4V ~ 400V 1mV ~ 0.1V
1000V 1V ± (0.8% + 10 digits)
1000V Input Impedance (Nominal): >10MΩ, <100pF
Overload Protection:
Input Impedance (LOW Z): >3kΩ, <200pF, up to 600V RMS
AC Voltage Measurement
Accuracy Accuracy
Range Resolution
40Hz ~ 400Hz 400Hz ~ 2kHz
400mV 0.1mV ± (2.5% +10 digits)
± (0.75% + 5 digits)
4V ~ 400V 1mV ~ 0.1V ± (2.0% +8 digits)
1000V 1V ± (0.75% + 8 digits) ± (2.0% +8 digits)*
Overload Protection: 1000V RMS Input Impedance (Nominal): >10MΩ, <100pF
Input Impedance (LOW Z): >3kΩ, <200pF, up to 600V RMS
frequency Range: 40 to 2kHz Response: True RMS
*Accuracy for 400Hz ~ 1kHz range only.
DC Current Measurement
Range Resolution Accuracy
400.0µA 0.1µA
± (1.0% + 5 digits)
2000µA 1µA
Overload Protection: 600V RMS
AC Current Measurement
Range Resolution Accuracy
400.0µA 0.1µA
± (1.5% + 5 digits)
2000µA 1µA
Overload Protection: 600V RMS
frequency: 40Hz to 2kHz Response: True RMS
Resistance Measurement
Range Resolution Accuracy
400Ω ˜ 4MΩ 0.1Ω ˜ 1kΩ ± (1.0% + 5 digits)
40MΩ 0.01MΩ ± (1.5% + 10 digits)
Overload Protection: 600V RMS
Diode Test
Overload Protection Range Test Current Open Circuit Voltage
600V RMS 4.0V DC Appx. 0.25mA < 1.8V DC (typ.)
Continuity Test
Overload Protection Open Circuit Voltage Threshold (Appx.)
600V RMS Appx. 0.44V Appx. < 40Ω
Specifications subject to change.
WARRANTY
www.kleintools.com/warranty
CLEANING
Turn instrument off and disconnect test leads. Clean the instrument by using a
damp cloth. Do not use abrasive cleaners or solvents.
STORAGE
Remove the batteries when instrument is not in use for a prolonged period
of time. Do not expose to high temperatures or humidity. After a period of
storage in extreme conditions exceeding the limits mentioned in the General
Specifications section, allow the instrument to return to normal operating
conditions before using it.
DISPOSAL / RECYCLE
Do not place equipment and its accessories in the trash.
Items must be properly disposed of in accordance with local
regulations.
Prior to disposal of this product, please contact Klein Tools
for proper disposal options.
CUSTOMER SERVICE
KLEIN TOOLS, INC.
450 Bond Street
Lincolnshire, IL 60069
1-877-775-5346
www.kleintools.com
