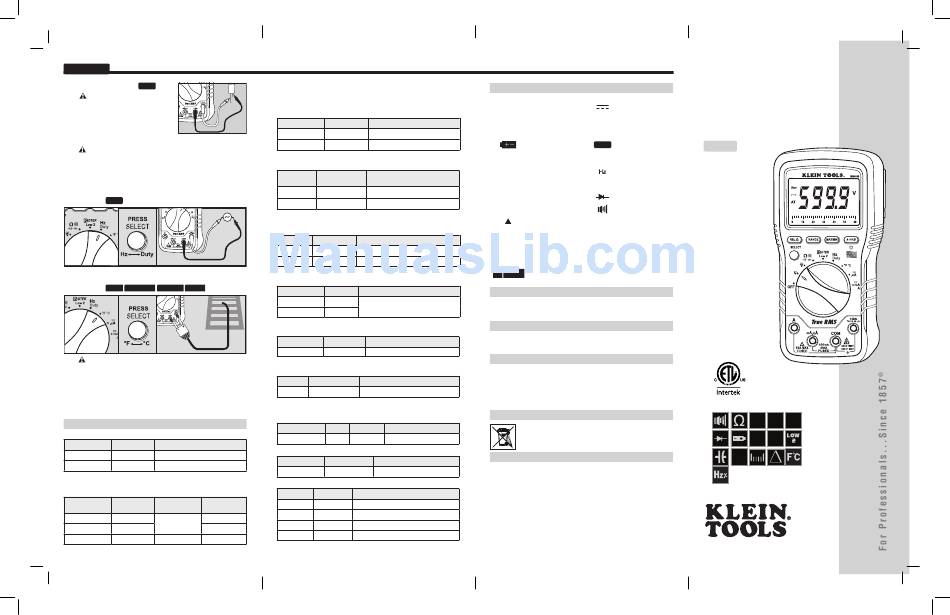

Klein Tools MM6000 Instruction Manual

ENGLISH
Capacitance Features: HOLD
Safely discharge capacitor before
measurement.
• Reading may take up to 60 seconds
for large capacitors.
6. Low Impedance (LOW Z): < 600V
DO NOT use (LOW Z) mode at voltages greater than 600V.
• Press SELECT to choose AC or DC Voltage.
• Use Low Impedance (LOW Z) mode to reduce ghost voltages.
• See AC/DC Voltage instruction.
7. Frequency (Hz) / Duty Cycle: <400kHz
Features: HOLD
8. Temperature:
Features: HOLD AUTO HOLD MAX/MIN REL
DO NOT apply voltage to thermocouple.
• Fahrenheit range: -58° to 1832°F (Celsius range: -50° to 1000° C).
Testing Fuse:
• When selecting uA or mA/A functions the meter will indicate
"LEAd" if the test leads are not properly connected to the meter.
• Note: This message remaining on the screen after properly
connecting the test leads is an indication that the fuse is open.
ELECTRICAL SPECIFICATIONS
DC Voltage Measurement
Range Resolution Accuracy
600mV 600V 0.1mV 0.1V ± (0.2% + 5 digits)
˜ ˜
1000V 1V ± (0.5% + 10 digits)
Overload Protection: 1000V Input Impedance (Nominal): >10MΩ, <100pF
Input Impedance (LOW Z): >3kΩ, <200pF, up to 600V RMS
AC Voltage Measurement
Accuracy Accuracy
Range Resolution
40Hz ~ 400Hz 400Hz ~ 2kHz
600mV 0.1mV ± (2.5% +10 digits)
± (0.75% + 5 digits)
6V ~ 600V 1mV ~ 0.1V ± (2.0% + 8 digits)
1000V 1V ± (0.75% + 8 digits) ± (2.0% +8 digits)*
Continued on next page.
Overload Protection: 1000V RMS Input Impedance (Nominal): >10MΩ, <100pF
Input Impedance (LOW Z): >3kΩ, <200pF, up to 600V RMS
Frequency Response: 40 to 2kHz Response: True RMS
*Accuracy for 400Hz ~ 1kHz range only.
DC Current Measurement
Range Resolution Accuracy
600µA ~ 400mA 0.1µA ~ 0.1mA ± (1.0% + 5 digits)
6A ~ 10A 1mA ~ 10mA ± (1.5% + 5 digits)
Overload Protection: µAmA: 400mA (F440mA/1000V fuse) / A Input: 10A (F11A/1000V fuse)
AC Current Measurement
Accuracy
Range Resolution
40Hz ~ 2kHz
600µA ~ 400mA 0.1µA ~ 0.1mA ± (1.2% + 5 digits)
6A ~ 10A 1mA ~ 10mA ± (1.8% + 5 digits)
Overload Protection: µAmA: 400mA (F440mA/1000V fuse) / A Input: 10A (F11A/1000V fuse)
40 to 2kHz True RMS
Frequency: Response:
Resistance Measurement
Range Resolution Accuracy
600Ω ˜ 6MΩ 0.1Ω ˜ 0.001MΩ ± (1.0% + 5 digits)
50MΩ 0.01MΩ ± (1.5% + 10 digits)
600V RMS
Overload Protection:
Capacitance Measurement
Range Resolution Accuracy
60nF 0.01nF
± (3.5% + 6 digits)
600nF ~ 6000µF 0.1nF ~ 1µF
Overload Protection: 600V RMS
Frequency Measurement
Range Resolution Accuracy
99.99Hz ˜ 399.9kHz 0.01Hz ˜ 0.1kHz ± (0.1% + 3 digits)
Overload Protection: 600V RMS Sensitivity: 2.5V RMS
Duty Cycle Measurement
Range Resolution Accuracy
1.0 ˜ 99.0% 0.1% ± (0.2% per kHz + 0.1% + 8 digits)
Overload Protection: 600V RMS Sensitivity: < 50V RMS
Frequency Range: 0.5Hz to 10kHz
Diode Test
Overload Protection Range Test Current Open Circuit Voltage
600V RMS 6.0V DC 0.25mA < 1.8V DC
Continuity Test
Overload Protection Open Circuit Voltage Threshold (Appx.)
600V RMS < 0.44V <40Ω
Temperature Measurement
Range Resolution Accuracy
-58 ~ 600°F 0.1°F ± (1.0% + 5.4°F)
-50 ~ 600°C 0.1°C ± (1.0% + 3.0°C)
600 ~ 1832°F 1°F ± (1.0% + 5.4°F)
600 ~ 1000°C 1°C ± (1.0% + 3.0°C)
Overload Protection: 600V RMS K-type Thermocouple Accuracy: Not specified
Specifications subject to change.
SYMBOLS USED ON LCD
~
AC Measurement DC Measurement
-
AT
Negative DC Value Auto Range Active
O.L. Apo
Overload: Range Exceeded Auto Power-Off Active
Low Battery HOLD Hold Active
MIN MAX
Minimum Reading Maximum Reading
%
Duty Cycle Mode Frequency Mode
V A
Voltage Measurement Current in Amps
Ω
Resistance in Ohms Diode Test
F
Capacitance in Farads Continuity Test
n
Relative / Zero Mode Nano 10 -9
µ m
Micro 10 -6 Milli 10 -3
k M
Kilo 10 Mega 10
3 6
°F °C
Degrees Fahrenheit Degrees Celsius
LOW
A- HOLD
Auto-Hold Active Low Impedance
Z
WARRANTY
See www.kleintools.com, contact Klein Tools at 1-877-775-5346, or visit a
distributor for warranty information.
CLEANING
Turn instrument off and disconnect test leads. Clean the instrument by using
a damp cloth. Do not use abrasive cleaners or solvents.
STORAGE
Remove the batteries when instrument is not in use for a prolonged period
of time. Do not expose to high temperatures or humidity. After a period of
storage in extreme conditions exceeding the limits mentioned in the General
Specifications section, allow the instrument to return to normal operating
conditions before using it.
DISPOSAL / RECYCLE
Caution: This symbol indicates that equipment and its accessories
shall be subject to a separate collection and correct disposal.
CUSTOMER SERVICE
KLEIN TOOLS, INC.
450 Bond Street
Lincolnshire, IL 60069
1-877-775-5346
www.kleintools.com
Rev A 1/13
GRAPHICS DRAWING NAME: MM6000 Manual ENG.indd
GRAPHICS PART NUMBER: XXXXXX ECN NUMBER.:
PACKAGING DWG. REF.: VENDOR SUPPLIED

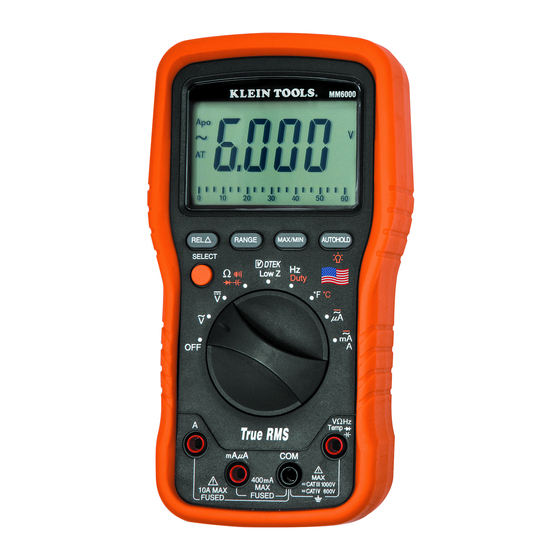

Instruction
Manual
MM6000
ENGLISH
• TRUE RMS
• BACKLIT DISPLAY
• BAR GRAPH
• LEAD STORAGE
• MAX / MIN
• 3-5/6 DIGIT
6000 COUNT LCD
• AUTO / MANUAL
RANGE
• AUTO HOLD
4007036
HOLD TRMS A-HOLD
Apo AUTO
RANGE
www.kleintools.com
139750
00000
Revision: A 10.11.12
