READ AND SAVE THIS MANUAL. This manual contains important safety precautions which should be read and understood before operating the product.
Failure to do so could result in serious injury. This manual should remain with the product.
Specifications, descriptions and illustrations in this manual are as accurate as known at the time of publication, but are subject to change without notice.
This product is rated in accordance with PGMA (Portable Generator Manufacturers' Association) standard PGMA G300 (Standard for Testing and Validating
Performance of Portable Generators).
Made in China - REV 20190111
REGISTER YOUR PRODUCT ONLINE
at championpowerequipment.com
OPERATOR'S MANUAL

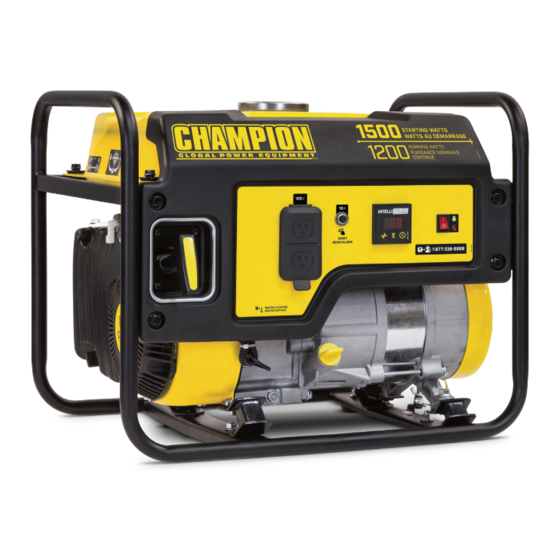

1200W PORTAbLE GENERATOR
or visit championpowerequipment.com
Champion Power Equipment, Inc., Santa Fe Springs, CA USA
MODEL #100458

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 100458 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Champion 100458

Summary of Contents for Champion 100458

  • Page 1 Specifications, descriptions and illustrations in this manual are as accurate as known at the time of publication, but are subject to change without notice. This product is rated in accordance with PGMA (Portable Generator Manufacturers’ Association) standard PGMA G300 (Standard for Testing and Validating Performance of Portable Generators). Made in China - REV 20190111 Champion Power Equipment, Inc., Santa Fe Springs, CA USA...

  • Page 2: Table Of Contents

    TAbLE Of CONTENTS 100458 - 1200W PORTAbLE GENERATOR TAbLE Of CONTENTS Specifications ......... . .

  • Page 3: Introduction

    100458 - 1200W PORTAbLE GENERATOR INTRODUCTION SAfETY DEfINITIONS Congratulations on your purchase of a Champion Power The purpose of safety symbols is to attract your attention to Equipment (CPE) product. CPE designs, builds, and supports possible dangers. The safety symbols, and their explanations, all of our products to strict specifications and guidelines.

  • Page 4: Important Safety Instructions

    Using a generator indoors CAN KILL YOU IN MINUTES. DO NOT use electrical cords that are worn, damaged or Generator exhaust contains carbon monoxide. This is a frayed. Use Champion electrical cords only for proper poison you cannot see or smell. application.
  • Page 5 IMPORTANT SAfETY INSTRUCTIONS 100458 - 1200W PORTAbLE GENERATOR WARNING CAUTION   Running engines produce heat. Severe burns can occur on Improper treatment or use of the generator can damage it, contact. Combustible material can catch fire on contact. shorten its life and void your warranty.

  • Page 6: Fuel Safety

    IMPORTANT SAfETY INSTRUCTIONS 100458 - 1200W PORTAbLE GENERATOR fuel Safety DO NOT pump gasoline directly into the generator at the gas station. Use an approved container to transfer the fuel to the generator. DANGER  DO NOT overfill the gasoline tank.

  • Page 7: Safety Symbols

    IMPORTANT SAfETY INSTRUCTIONS 100458 - 1200W PORTAbLE GENERATOR Safety Symbols Some of the following symbols may be used on this product. Please study them and learn their meaning. Proper interpretation of these symbols will allow you to more safely operate the product.

  • Page 8: Operation Symbols

    IMPORTANT SAfETY INSTRUCTIONS 100458 - 1200W PORTAbLE GENERATOR Operation Symbols Some of the following symbols may be used on this product. Please study them and learn their meaning. Proper interpretation of these symbols will allow you to more safely operate the product.

  • Page 9: Safety Labels

    50% process magenta This artwork belongs to Champion Power Equipment. The contents are confidential and privileged and shall not be disclosed to or used by or for outside parties without the explicit consent of Champion Power Equipment.

  • Page 10: Controls And Features

    CONTROLS AND fEATURES 100458 - 1200W PORTAbLE GENERATOR CONTROLS AND fEATURES Read this operator’s manual before operating your generator. Familiarize yourself with the location and function of the controls and features. Save this manual for future reference. Generator 1. Gasoline Tank – 1.9 gal. (7 L) 6.

  • Page 11: Control Panel

    CONTROLS AND fEATURES 100458 - 1200W PORTAbLE GENERATOR Control Panel 1. Circuit Breakers (Push Reset) – Protects the generator RECEPTACLES against electrical overloads. (2x) 120V AC, 20A (NEMA 5-20R) 2. Intelligauge – Three mode digital meter for displaying May be used to supply electrical power for running time, voltage and hertz.

  • Page 12: Parts Included

    ASSEMbLY 100458 - 1200W PORTAbLE GENERATOR Parts Included Attach the Alternator Vibration Mounts 1. Thread the flange bolt (C) through the vibration mount (B) Accessories and then through the frame (alternator side). Oil Funnel ................1 2. Firmly secure the bolt to the frame with the M8 lock nut (D).

  • Page 13: Add Fuel

    ASSEMbLY 100458 - 1200W PORTAbLE GENERATOR NOTICE  Synthetic oil may be used after the 5 hour initial break- in period. Using synthetic oil does not increase the recommended oil change interval. Full synthetic 5W-30 oil will aid in starting in cold ambient <5º C (41º F).

  • Page 14: Grounding

    OPERATION 100458 - 1200W PORTAbLE GENERATOR OPERATION WARNING  Pouring gasoline too fast through the fuel screen may result Generator Location in blow back of gasoline at the operator while filling. NEVER operate the generator inside any building, including garages, basements, crawlspaces and sheds, enclosure or NOTICE ...

  • Page 15: Grounding

    OPERATION 100458 - 1200W PORTAbLE GENERATOR Grounding NOTICE  A ground terminal connected to the frame of the generator has Keep choke in “CHOKE” position for only 1 pull of the recoil been provided (see Controls and Features for terminal location).

  • Page 16: Do Not Overload Generator

    OPERATION 100458 - 1200W PORTAbLE GENERATOR 5. Plug in and turn on the next item. WARNING  6. Allow the engine to stabilize. Connecting a generator to your electric utility company’s 7. Repeat steps 5-6 for each additional item. power lines or to another power source may be against the law.

  • Page 17: Maintenance

    MAINTENANCE 100458 - 1200W PORTAbLE GENERATOR MAINTENANCE Changing the Engine Oil Change oil when the engine is warm. Refer to the oil Make certain that the generator is kept clean and stored specification to select the proper grade for your operating properly.

  • Page 18: Cleaning The Air Filter

    MAINTENANCE 100458 - 1200W PORTAbLE GENERATOR Adjusting the Governor 6. Firmly re-install the plug. 7. Attach the spark plug cable to the spark plug. WARNING  Cleaning the Air filter Tampering with the factory set governor will void your warranty.

  • Page 19: Storage

    STORAGE 100458 - 1200W PORTAbLE GENERATOR STORAGE 7. Option 2: Run Dry (gasoline type models ONLY) 7a. Turn engine switch to the “ON” position and start the DANGER generator.  7b. With the generator running, turn the fuel valve to the Gasoline, gasoline vapors and propane (LPG) are highly “OFF”...

  • Page 20: Removing From Storage

    STORAGE 100458 - 1200W PORTAbLE GENERATOR Removing from Storage If the generator has been improperly stored for a long period of time with gasoline in the gasoline tank and/or carburetor, all fuel must be drained and the carburetor must be thoroughly cleaned.

  • Page 21: Specifications

    SPECIfICATIONS 100458 - 1200W PORTAbLE GENERATOR SPECIfICATIONS Spark Plug Specifications OEM Type ......... . .

  • Page 22: Parts Diagram

    SPECIfICATIONS 100458 - 1200W PORTAbLE GENERATOR Parts Diagram...

  • Page 23: Parts List

    SPECIfICATIONS 100458 - 1200W PORTAbLE GENERATOR Parts List Part Number Description Qty. Part Number Description Qty. Engine, 79.8cc 34 1.93.06 Lock Washer Ø6 12.405 35 1.62.06 Butterfly Type Nut M6 12.100001.02 Gasket, Exhaust Frame, 490 × 355 × 12.101000.02 Muffler Assembly 36 61148.0.6.2...

  • Page 24: Engine Parts Diagram

    SPECIfICATIONS 100458 - 1200W PORTAbLE GENERATOR Engine Parts Diagram...

  • Page 25: Engine Parts List

    SPECIfICATIONS 100458 - 1200W PORTAbLE GENERATOR Engine Parts List Part Number Description Qty. Part Number Description Qty. Air Cleaner Assembly Oil Dipstick Assembly, 12.091000.01 36 15.031000.00.48 Yellow Recoil Assembly, 12.061000.03.48 37 15.030007.00 Cover, Crankcase Yellow 38 1.5789.0625 Flange Bolt M6 × 25 1.16674.0612...
  • Page 26 SPECIfICATIONS 100458 - 1200W PORTAbLE GENERATOR Part Number Description Qty. Washer Ø8.2 × Ø17 77 2.03.019 × 0.8 78 12.110008.00 Pin, Shaft 79 12.110003.00 Arm, Governor 80 12.110007.21 Spring, Governor 81 12.110005.00 Spring, Throttle Return 82 12.110006.00 Rod, Governor 83 15.040009.00 Rocker Arm 84 1.5789.0612...

  • Page 27: Wiring Diagram

    SPECIfICATIONS 100458 - 1200W PORTAbLE GENERATOR Wiring Diagram...

  • Page 28: Troubleshooting

    TROUbLESHOOTING 100458 - 1200W PORTAbLE GENERATOR TROUbLESHOOTING Problem Cause Solution No fuel. Add fuel. Generator will not start. Faulty spark plug. Replace spark plug. Unit loaded during start up. Remove load from unit. Fill crankcase to the proper level. Low oil level.
  • Page 29 To complete registration you will need to include a copy of the – Problems caused by parts that are not original Champion purchase receipt as proof of original purchase. Proof of purchase Power Equipment parts.
  • Page 30 THE UNITED STATES ENVIRONMENT PROTECTION AGENCY (U.S. EPA) EMISSION CONTROL SYSTEM WARRANTY Your Champion Power Equipment (CPE) engine complies with U.S. EPA emission regulations. YOUR WARRANTY RIGHTS AND OBLIGATIONS: The US EPA AND CPE are pleased to explain the Federal Emission Control Systems Warranty on your 2019 small off-road engine (SORE) and engine powered equipment.
  • Page 31 EMISSION CONTROL SYSTEM WARRANTY The following are specific provisions relative to your Emission Control System (ECS) Warranty Coverage. 1. APPLICABILITY: This warranty shall apply to 1997 and later model year small off-road engines (SORE). The ECS Warranty Period shall begin on the date the new engine or equipment is delivered to its original, end-use purchaser, and shall continue for 24 consecutive months thereafter.
  • Page 32 You must take your CPE engine or the product on which it is installed, along with your warranty registration card or other proof of original purchase date, at your expense, to any Champion Power Equipment dealer who is authorized by Champion Power Equipment, Inc. to sell and service that CPE product during his normal business hours.
